TS2403121

Regular price$3,599.00
/
Colour
SIZE

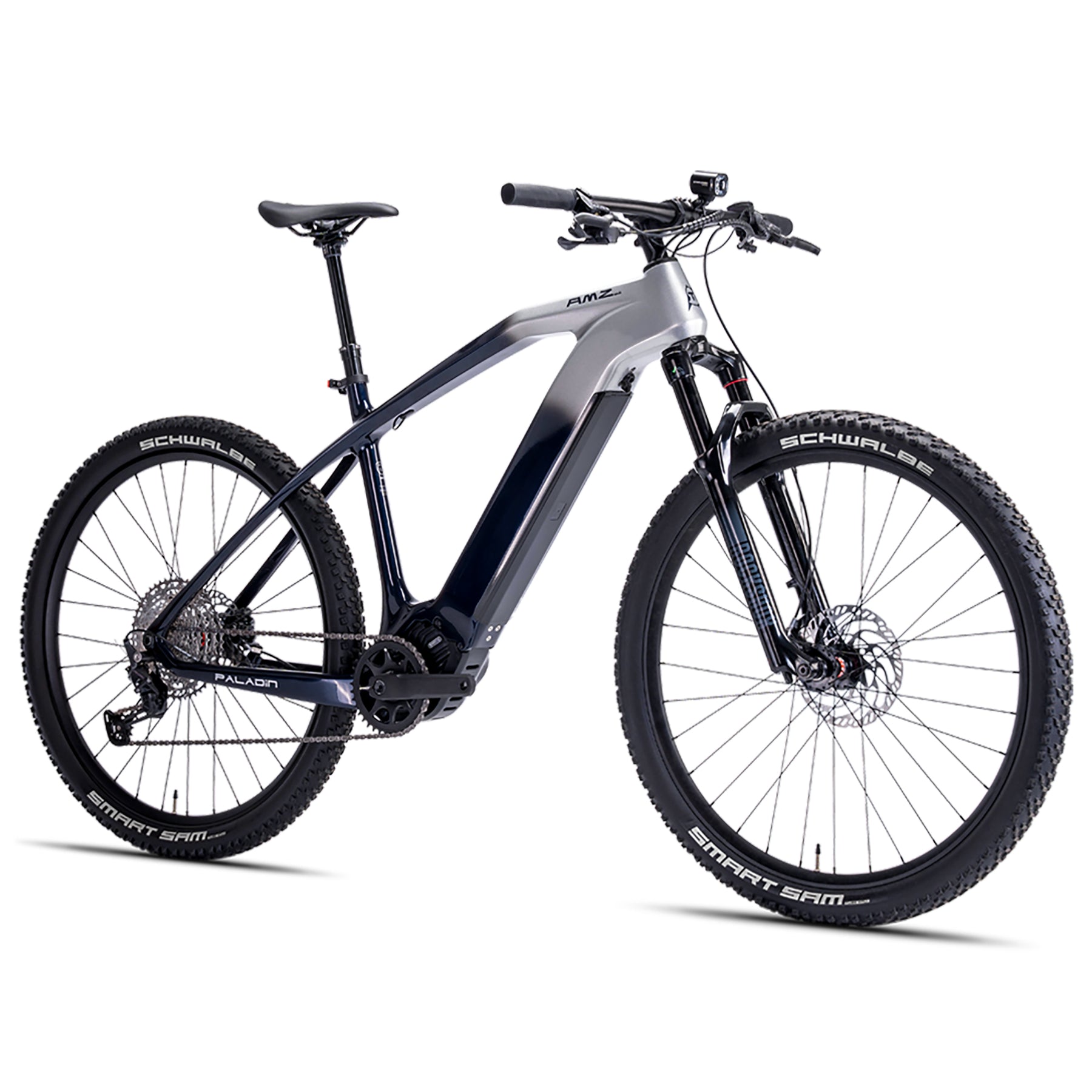

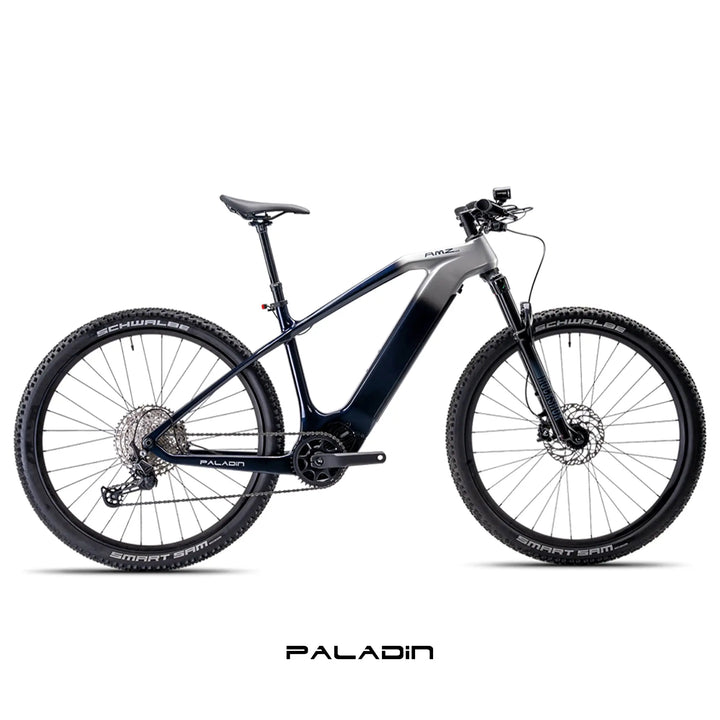

Carbon Fiber Frame  48.39 LB (M size) SRAM 35G Fork MAGURA MT5 Brake MAGURA Storm Disc Schwalbe 29*2.35 inch Tires   120 N·m torque Motor
Performance Table
E-bike Class Class 2
Weight 21.45Kg  (S) / 21.95Kg  (M) / 22.45Kg  (L)
Voltage 48V
Charging Time 6-8h
Maximum Load 120Kg
Battery Capacity 690.7WH
Motor Power 500W
Max Pedelec Range(Laboratory data) 100-120Km
Max Pedelec Speed 20mph / 32Km/h



 Spec Table

Frame Set Full Carbon Fiber Frame; 29 inch; 148*12mm Alxe; Post Mount Break; FICR;
Headset FICR; 51.8*8.7mm-51.8*7.5mm Bearing
Fork SRAM 35G; 29inch; 15*110mm Alxe; T:120mm
Motor BAFANG M560; 48V500W; 120N.m
Battery 47.97Vdc 14.4Ah 690.768Wh
Display BAFANG; LCD; 3.5inch
Headlight LED; StVZO, ECE, ISO
Taillight LED; StVZO, ECE
Speed Sensor BaFang SR SDO21.01
Front Brake MAGURA MT5 LEFT 900mm+300mm (4 piston caliper banjo/2finger aluminium lever blade)
Shiftmix 4, Left, SRAM Matchmaker Shifters, Set(I), Black
Rear Brake MAGURA MT5 RIGHT 1500mm+300mm (4 piston caliperbanjo/2finger aluminium lever blade)
Shiftmix 4, Right, for Shimano l-Spec EV ShiftersSet(l), Black

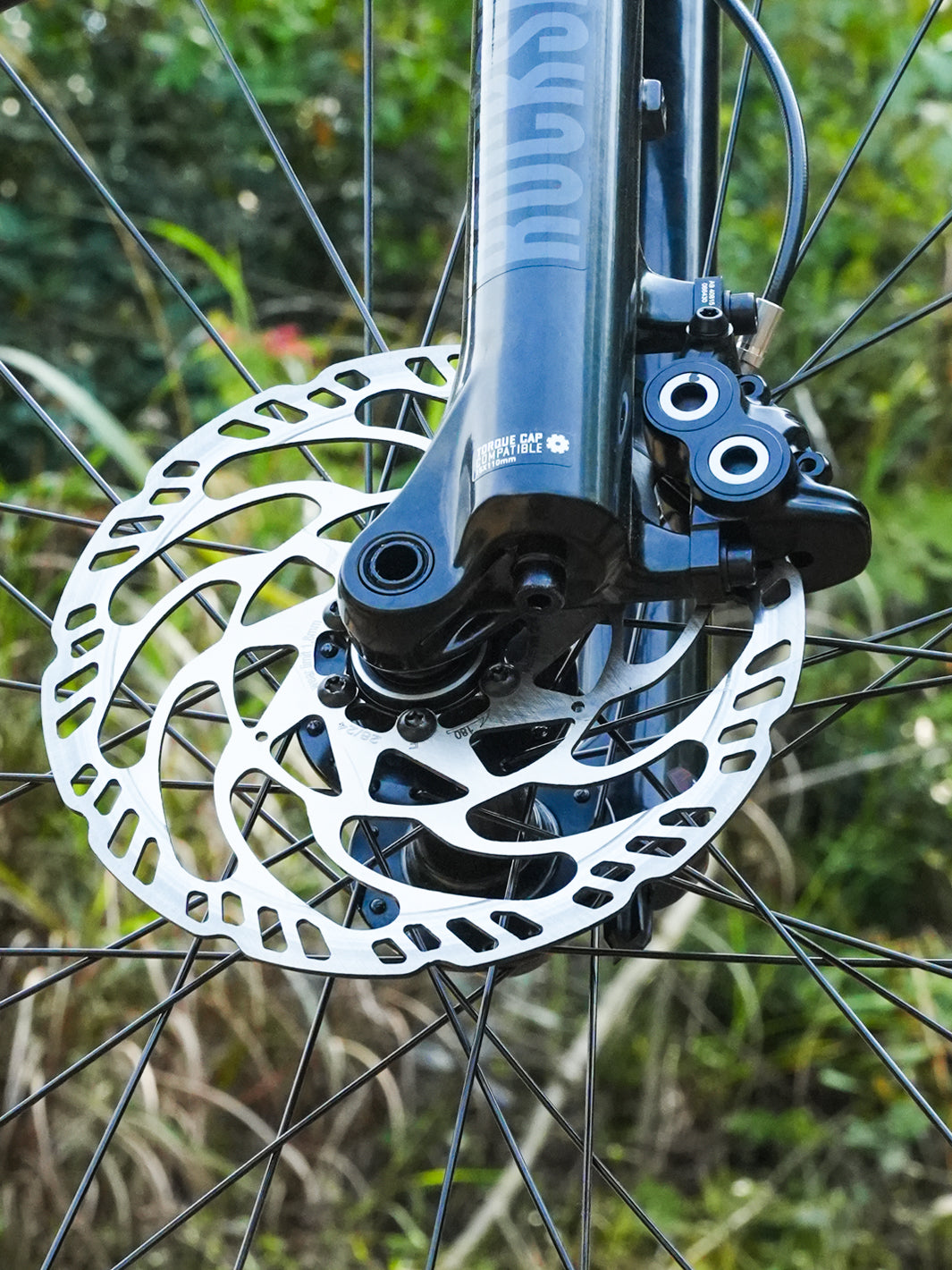

Front Disc MAGURA STROM; MDR-C 180mm (6 hole)
Rear Disc MAGURA STROM; MDR-C 160mm (6 hole)
Shifter SHIMANO M6100; 12s; I-Spec EV
Rear Derailleur SHIMANO M6100; 12s

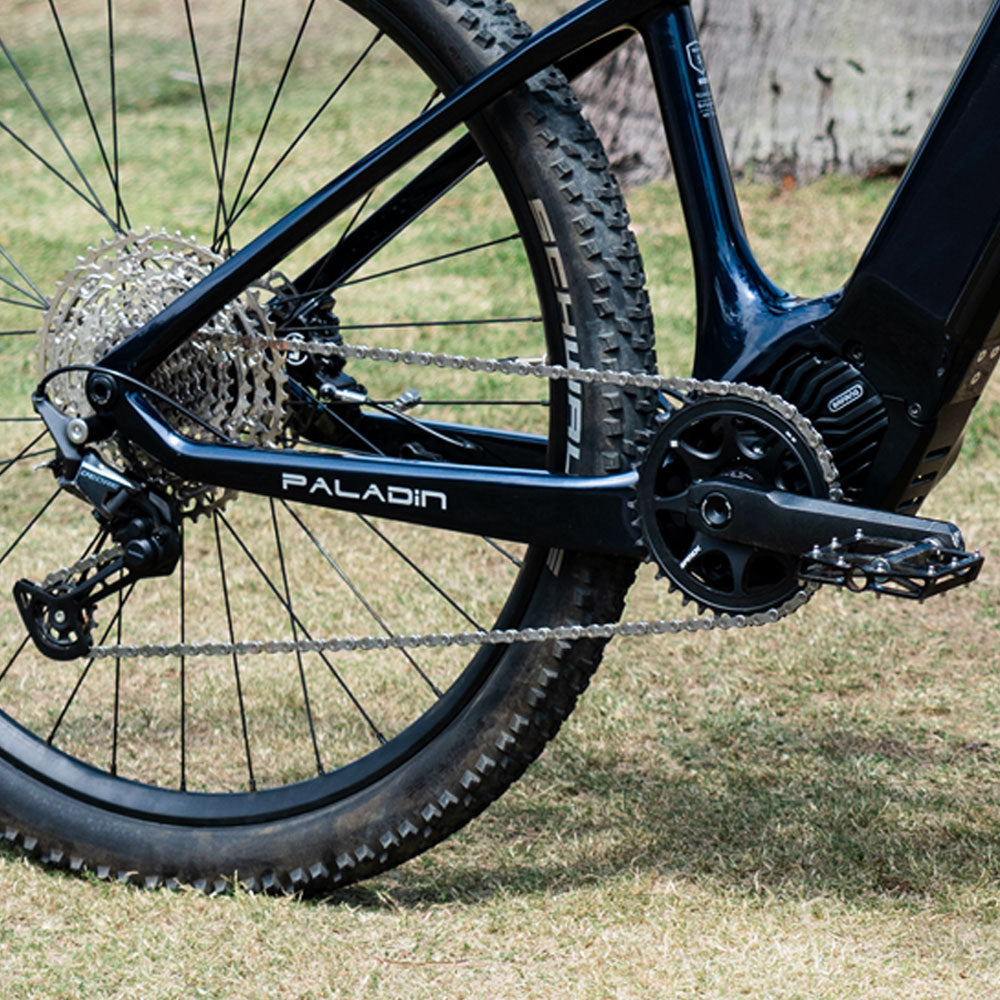

Chainring AL6061; 38T
Crankarm AL6061; 165MM/170MM/175MM; Aluminium Alloy
Chain Shimano 12s

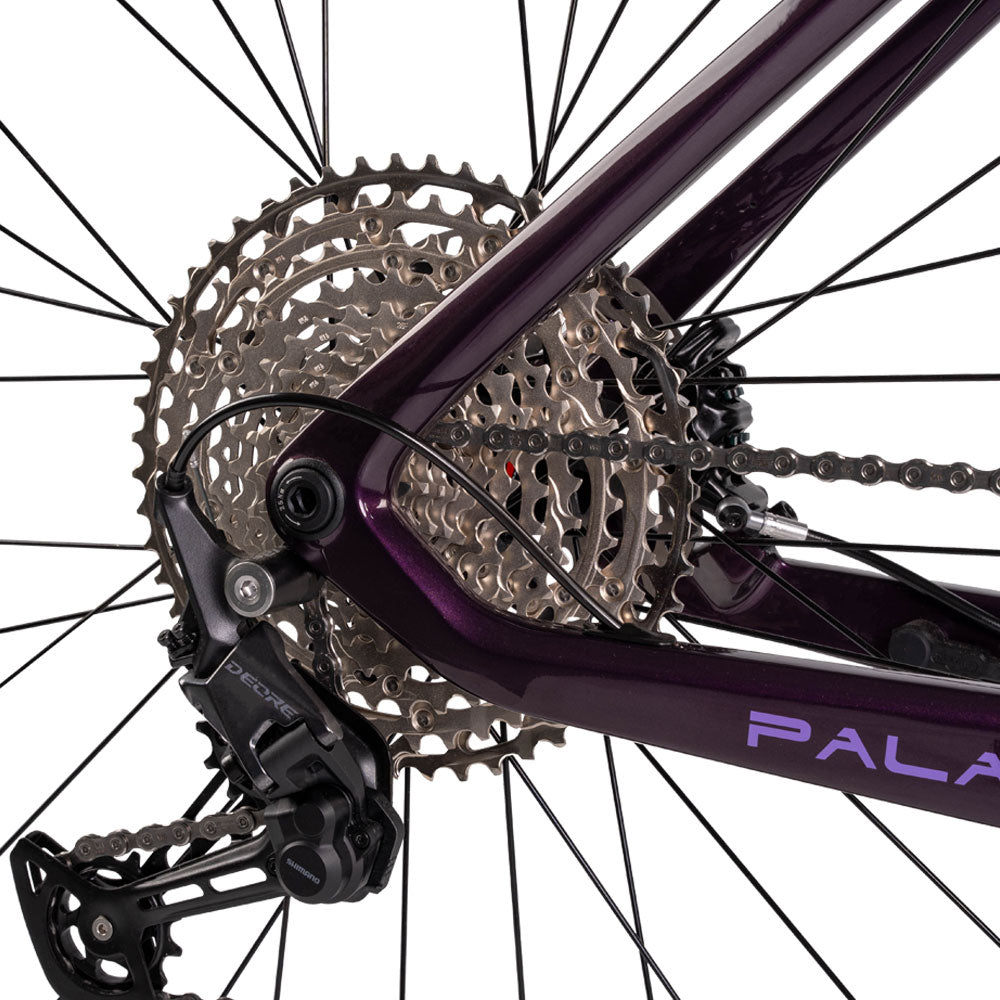

Cassette Shimano M6100 12s; 10-51T

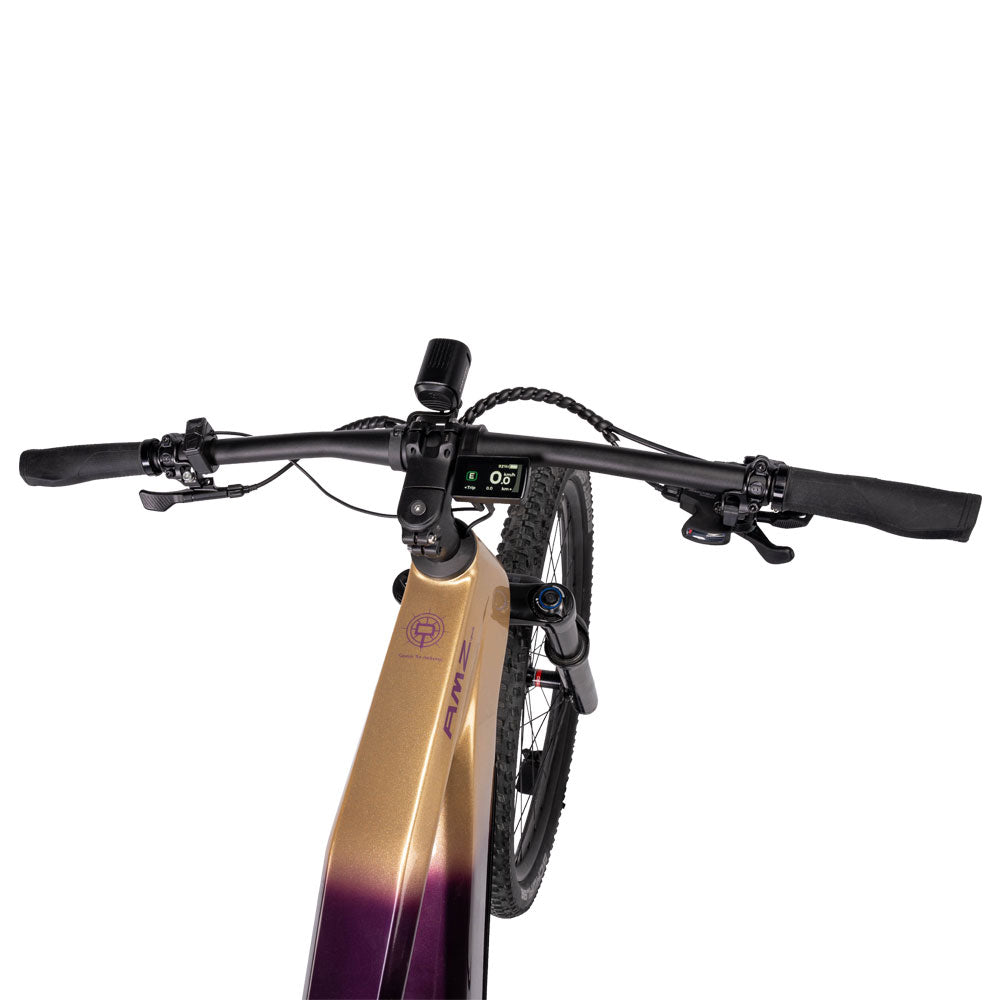

Bar AL6061; Barbore: 31.8mm; Backsweep9°; W: 700MM/720MM
Stem AL6061; A: -7; D: 31.8mm; L: 60mm
Saddle Airform; 255*145mm
Pedal 116x105; ZP bearing
Drop Post KS 860i Drop Post; 30.9mm; 125mm travel/150mm travel; Air Spring; I-Spec EV
Drop Post Controller KS WESTY2.0 I-Spec EV Shifters
Rims AL6061; FV
Hubs NovaTec; D041sb; 14G; 32H; 110MM
Hubs NovaTec; D442sb; 13G; 32H; 148MM
Spokes F: 14/R: 13G
Nipples R: 13/F: 14G
Tubes KENDA 29*2.35 1.2mm
Tires Schwalbe 29*2.35inch
(The final configuration is subject to the actual product delivered. )

Frame: 5 years
Front Fork: 2 years
Motor: 12 months
Battery: 18 months or 20,000 miles (whichever comes first)
Display: 12 months
For more components and details, please refer to our warranty card.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Liquid error (snippets/image-element line 113): invalid url input

TOP SPEED
20 MPH

MOTOR POWER
500W

RANGE
62–75 Miles

PAYLOAD CAPACITY
265 lbs

AMZCYCLE PALADIN

Check out the Paladin - the ultimate e-XC for year-round adventures!With the perfect blend ofsporty vibes and comfort, it's your go-to ride.This bad boy seamlessly combines athleticism with everyday functionality, making it a must-have for any young rider!

Product Highlights

Multi-Size Fit

From teens to adults—16" size fits riders from 160 cm and up

MAGURA MT5 4-Piston Brakes

Strong, smooth braking for full riding confidence.

Schwalbe SMART SAM Tires

Fast on roads, grippy on trails—ready for all terrains.

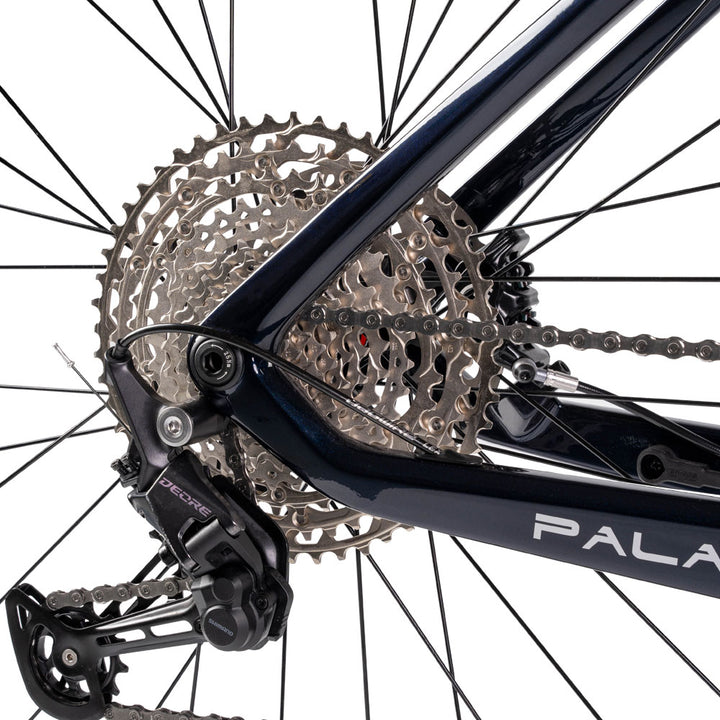

Shimano M6100 1x12-Speed

Wide 10–51T gear range for smooth climbing and descending.

KS 860i Dropper Post

Safer mounting, better comfort, and extra control.

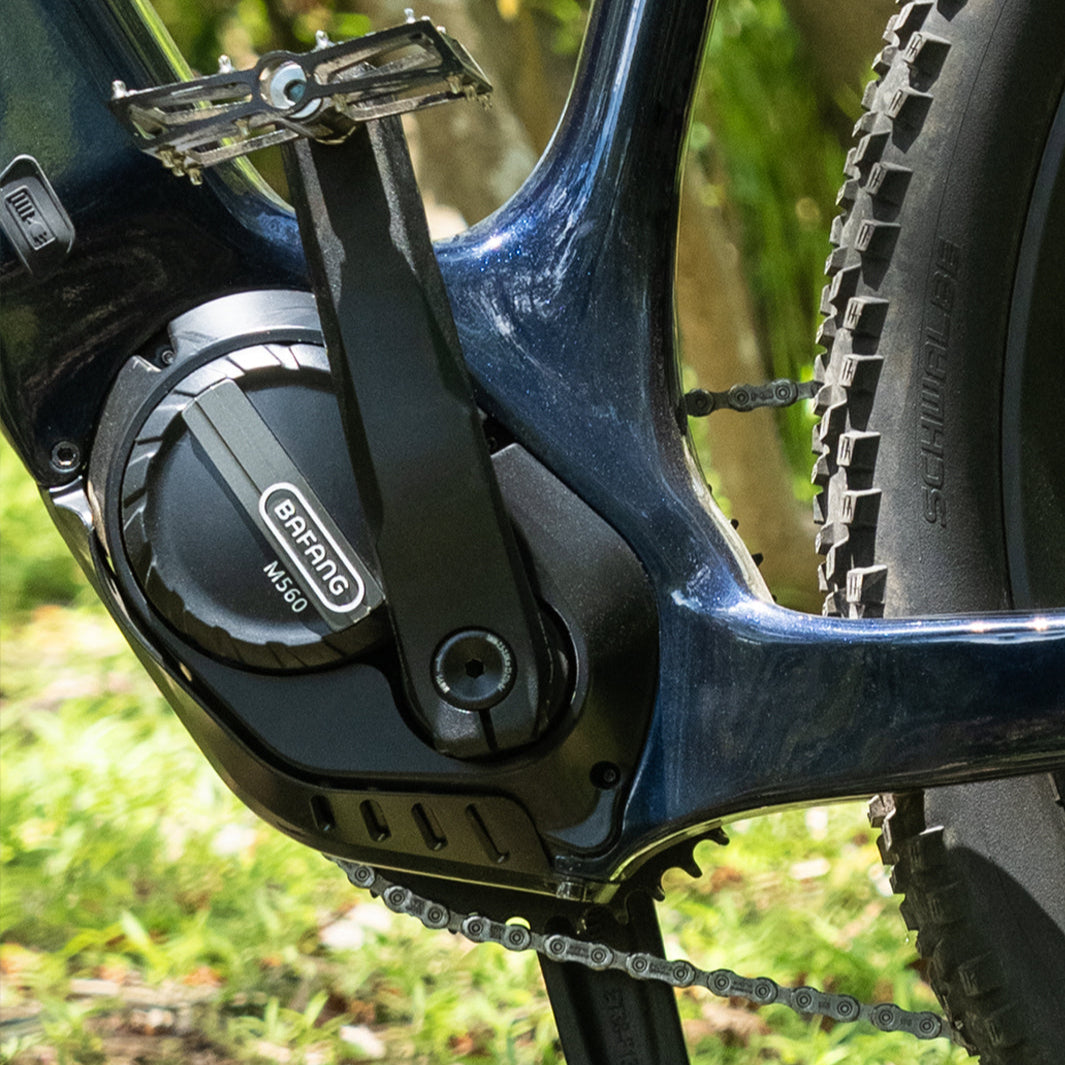

Bafang M600 500W Motor

120Nm torque for powerful climbs and confident off-road rides

Toray T700+T800 Carbon Frame

Lightweight, strong, and comfortable—built for longer range and better performance.

ROCKSHOX 35G, 120mm Travel

Light and responsive suspension, made for EMTB performance.

Unboxing and assembling

Help you assemble your bike quickly

User Guide & Maintenance Series

FAQ PALADIN

AMZcycle Paladin is available in three sizes to fit riders of different heights, S size (small): suitable for heights of 164-176cm, M size (medium): suitable for heights of 172-184cm; L size (large): suitable for heights of 180-192cm; if you are in the cross range, please refer to your leg length and riding style (commuting/off-road) to choose a size. 192cm; If your height is in the crossover range, we recommend you to refer to your leg length and riding style (commuting/off-road) to make a choice, or contact customer service for one-on-one advice.

AMZcycle Paladin is equipped with a 690Wh high-capacity battery and a 500W high-torque motor, which can achieve a boosted range of 100-120km (60-75 miles) and a maximum boosted speed of 32km/h (20mph) with reasonable use in eco gear.
3. Is the car heavy? Can girls ride it?

The weight of AMZcycle Paladin is as follows: S size: 22kg; M size: 22.1kg; L size: 22.2kg; the whole bike is designed with carbon fiber frame, light and strong, with power-assisted riding system, both men and women riders can easily get started.

Yes, the AMZcycle Paladin features a 29-inch wheel diameter, SRAM 35G fork, SHIMANO 12-speed system, and MAGURA MT5 four-piston hydraulic brakes, designed for mountain and off-road terrain with excellent handling and passing performance.

Yes, the battery is removable for easy replacement and charging. We provide a channel to purchase the original battery, and you can carry an extra battery for long range.
