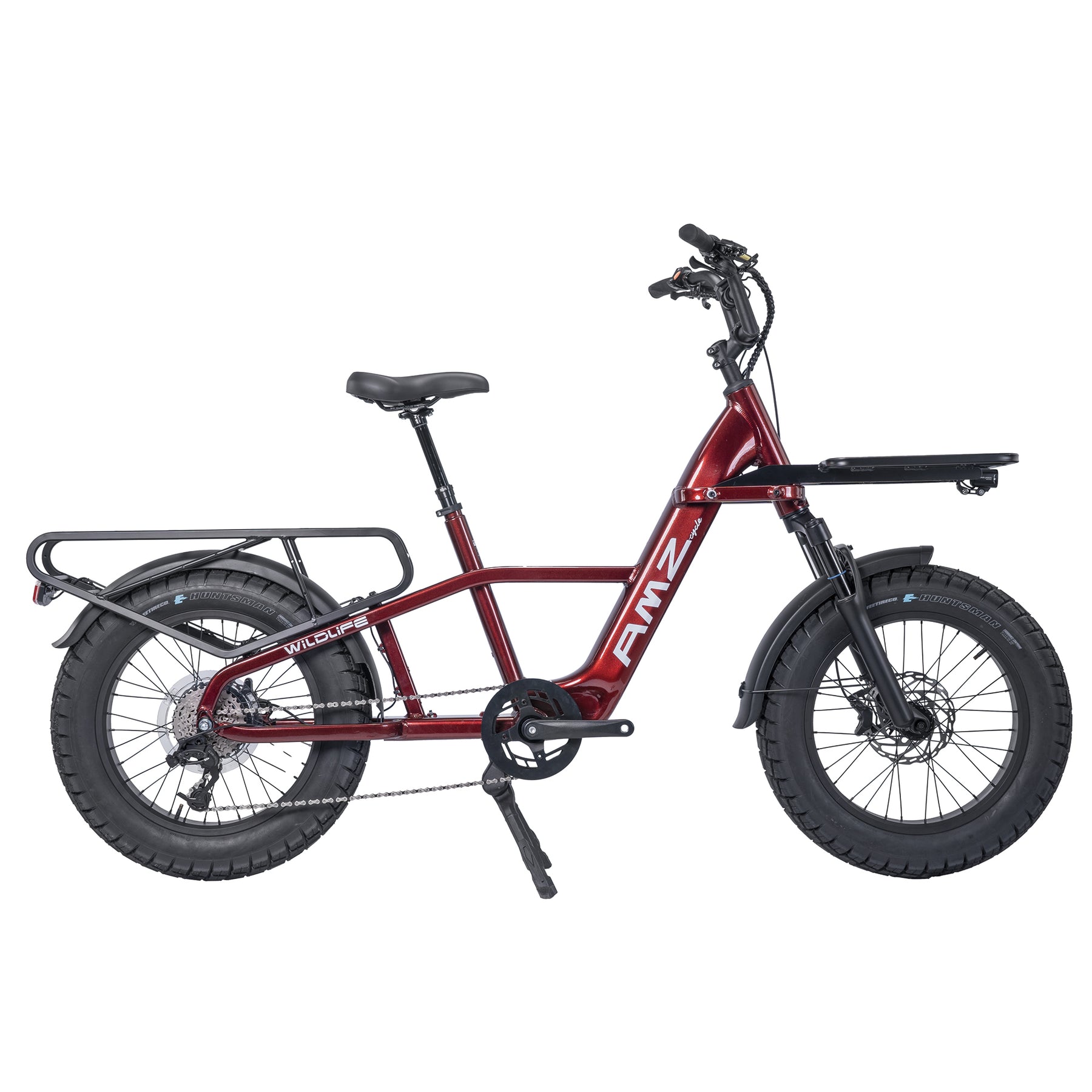

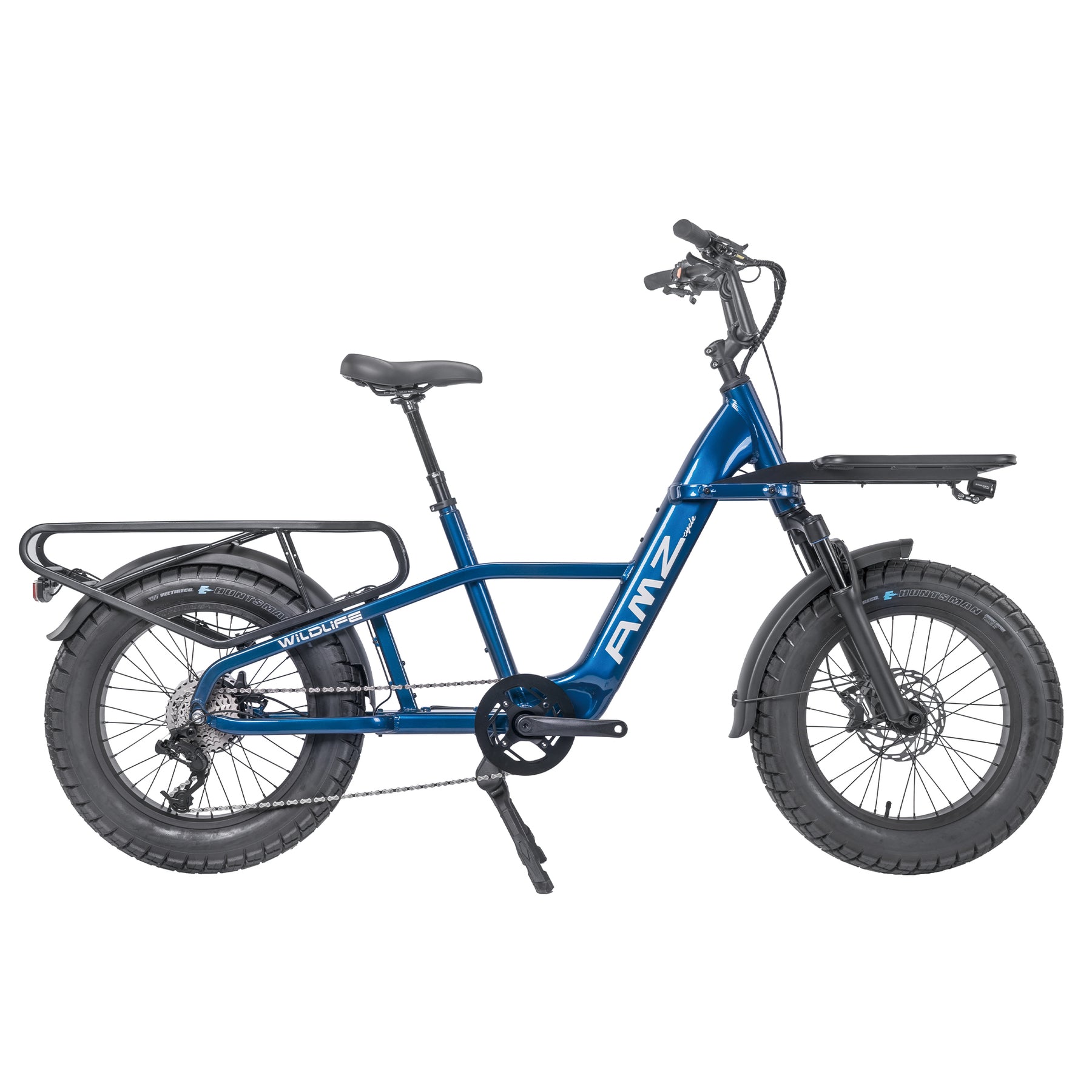

Wildlife Electric Cargo Ebike
TL2502111
Regular price$2,199.00
/
No reviews
Performance Table
| E-bike Class | Class 3 |
| Weight | 36.8kg |
| Voltage | 48V |
| Charging Time | 6-8h |
| Maximum Load | 157Kg(120Kg Rider, 37Kg Cargo) |
| Battery Capacity | 705.6WH |
| Motor Power | 750W |
| Max Pedelec Range | 80-100Km |
| Max Pedelec Speed | 20mph / 32Km/h |
Spec Table
| Frame Set | AL6061 T6；20inch；175*12mm Axle；FICR；Post Mount Brake |
| Headset | FICR；56*16mm-56*16mm Bearing |
| Fork | AL6061 T6；20inch；135*10mm Axle；AIR Spring；Post Mount Brake |
| Motor | 48V 750W；80N.m |
| Battery | SAMSUNG 21700 Cell ；48V 14.7Ah 705.6Wh；UL2271；DC2.1；IPX5 |
| Controller | SC102A；48V |
| Display | LED；3.5inch |
| Headlight | LED；StVZO、ECE、ISO |
| Taillight | LED；StVZO、ECE、ISO |
| Front Brake | HD-M535；4 Piston；Post Mount |
| Rear Brake | HD-E3940；4 Piston；Post Mount；Power Cut-off Sensor |
| Front Disc | TR180-54；6 Bolt |
| Rear Disc | TR160-54；6 Bolt |
| Shifter | S-Ride D200；7s |
| Rear Derailleur | S-Ride M200；7s |
| Chainring | AL6061；42T |
| Crankarm | AL6061；170mm |
| Chain | KMC e9s |
| Cassette | S-Ride M200；11-34T |
| Bar | AL6061；W:680mm |
| Stem | AL6061；H:45mm |
| Saddle | 265*213mm；Double Density Filler |
| Pedal | 116×105；ZP Bearing |
| Drop Post | KS 860i Drop Post；30.9mm；T:125mm ；Air Spring |
| Drop Post Controller | KS WESTY 2.0 |
| Rims | AL6061；20inch；AV |
| Front Hubs | AL6061；32H；13G |
| Rear Hubs | AL6061；36H；13G |
| Spokes | 13G |
| Nipples | 13G；14mm |
| Tubes | 20*3.5/4.0 |
| Tires | Veetireco；E-HUNTS MAN；20*4.0inch |
Frame: 5 years
Front Fork: 2 years
Motor: 12 months
Battery: 18 months or 20,000 miles (whichever comes first)
Display: 12 months
For more components and details, please refer to our warranty card.
