Ranger Electric Gravel Bike GRX
Ranger Electric Gravel Bike GRX
Ranger Electric Gravel Bike GRX
Ranger Electric Gravel Bike GRX
Ranger Electric Gravel Bike GRX
Ranger Electric Gravel Bike GRX

Ranger Electric Gravel Bike GRX

Regular price$4,499.00
/

Colour
SIZE

Performance Table

E-BIKE CLASS Class 1
VOLTAGE 36V
MAXIMUM LOAD 120Kg
BATTERY CAPACITY 378Wh+252Wh(Option)
POWER 250W
MAX PEDELEC RANGE 80-100Km+50-60Km
MAX PEDELEC SPEED 20mph / 32Km/h
CHARGING TIME 6-8h

Spec Table

Frame set Full Carbon Fiber Frame700*50C142*12mm AxleUDHFICRDual Battery systemFlat Mount Brake
Head set FICR51.8*8.7mm-51.8*6.8mm Bearing
Fork SUNTOUR GVX32T:50mm700C12*100mm Axle
Motor BaFang M820250W; 75N.m
Battery SAMSUNG 18650 Cell36V10.5Ah378WhUL2271DC2.1IPX5
Extra Battery SAMSUNG 18650 Cell36V*7Ah252WhUL2271DC2.1IPX5
controller BaFang M820
Display BaFang2.4inch
Headlight LEDStVZOECEISO
Taillight LEDStVZOECE
Speed Sensor BaFang
Dual Control Lever Shimano RX8201*12sHDDrop Post Controller
Front DISC SHIMANO SM-RT70160mm1.8mmCenterlock
Rear DISC SHIMANO SM-RT70160mm1.8mmCenterlock

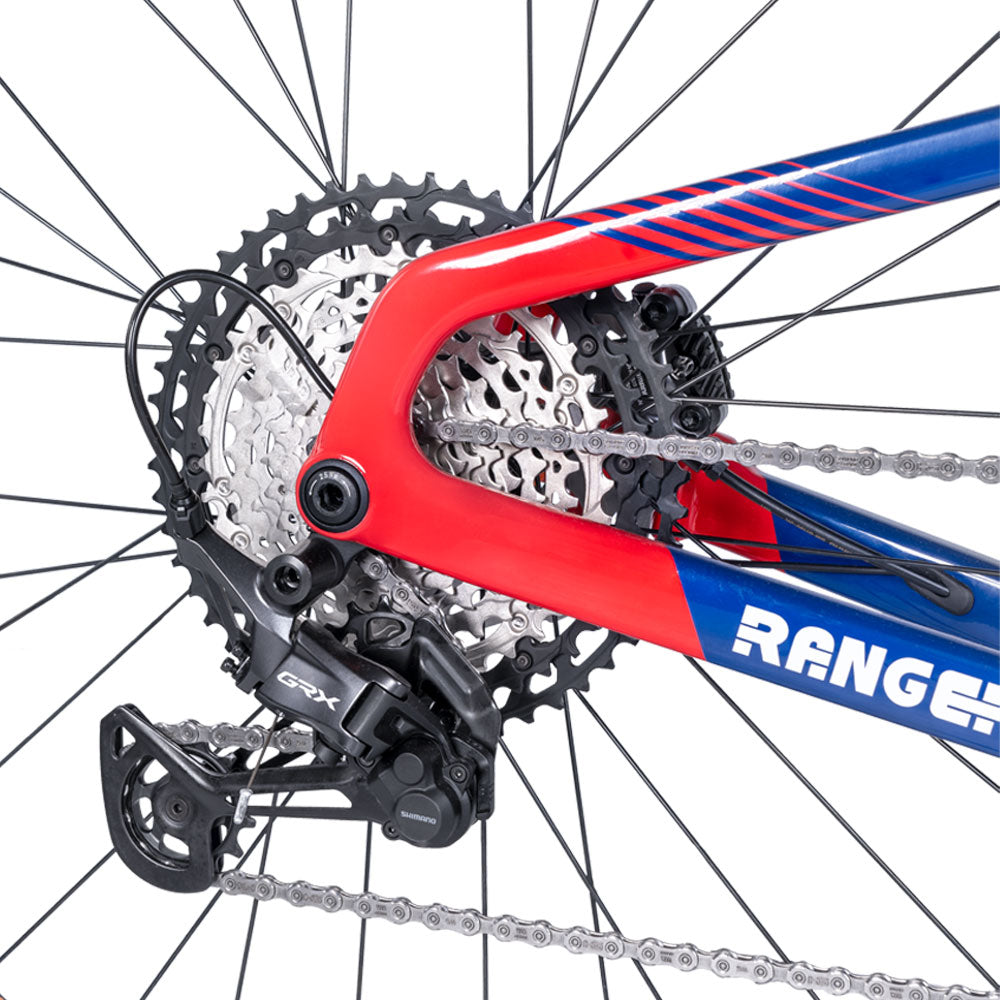

Rear Derailleur SHIMANO RX8221*12s
Chainring BaFang G53244TCL49
Crankarm SAMCX175mmCarbon Fiber Crankarm
Chain Shimano M6100; 12s
Cassette Shimano M810012s10-51T
Bar ControltechAL6061Width:420mm
Stem AL6061EXT.:80mm
Saddle Selle italian FLITE233g145*248mm
Pedal 104.7×108ZP bearing
Drop Post KS Rage IS; 27.2mm65mm travel
Rims WTB ST i23 ;28H14G
Rims WTB ST i23 ;32H14G
Hubs 12*100mm28H14GEbike Reinforced
Hubs 12*142mm32H14GEbike Reinforced
Spokes Sapim Leader14G
Nipples Sapim Polyax14mm
Tubes KENDA 700*50CFV48mm
Tires Schwalbe G-One OVERLAND 365700*50C



Frame: 5 years
Front Fork: 2 years
Motor: 12 months
Battery: 18 months or 20,000 miles (whichever comes first)
Display: 12 months
For more components and details, please refer to our warranty card.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Liquid error (snippets/image-element line 113): invalid url input

TOP SPEED
20 MPH

MOTOR POWER
500W

RANGE
50-62 Miles

PAYLOAD CAPACITY
265 lbs

Impressive

Large image with text box

Pair large text with a full-width image to draw attention to an important detail of your brand or product line.

Product Highlights

Full Carbon, Ultra Lightweight

Ranger features a carbon frame, fork, seatpost, and crankset.
As for the handlebar? You can easily upgrade it after your bike fitting—lots of options available!
