Top Speed
20MPH
MOTOR POWER
250W
RANGE
Up to 100 Miles (Dual Battery)
Weight
32lbs（L size）

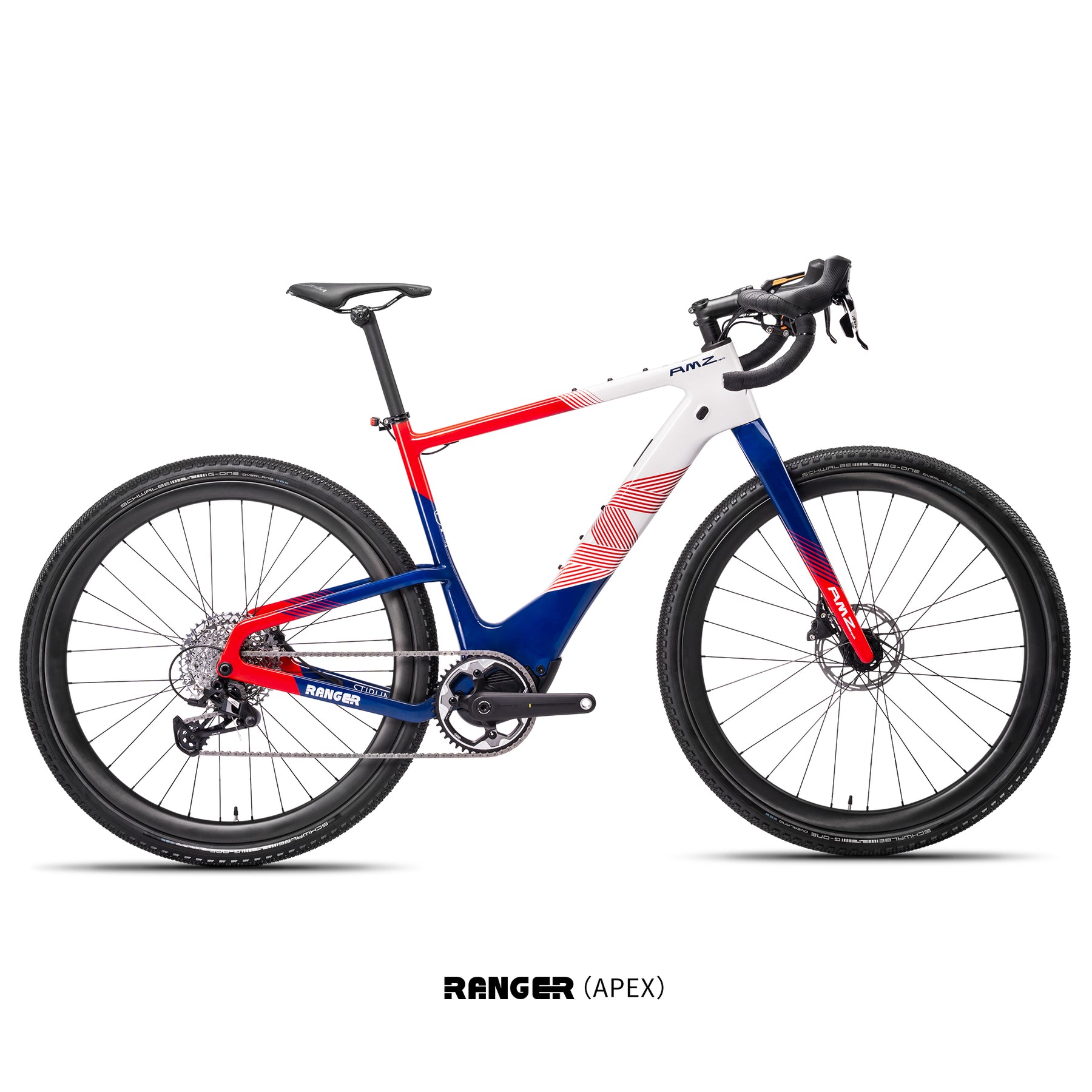

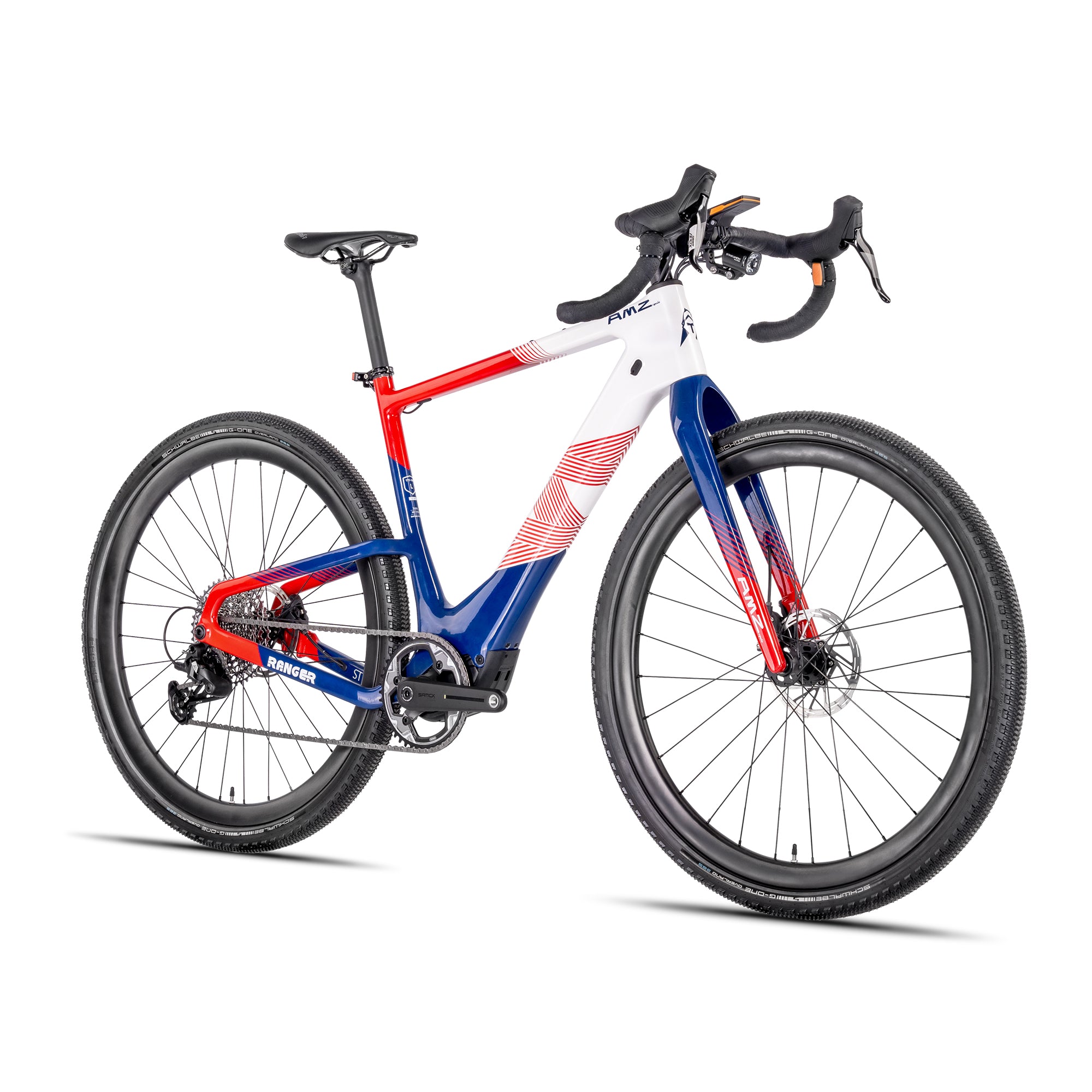

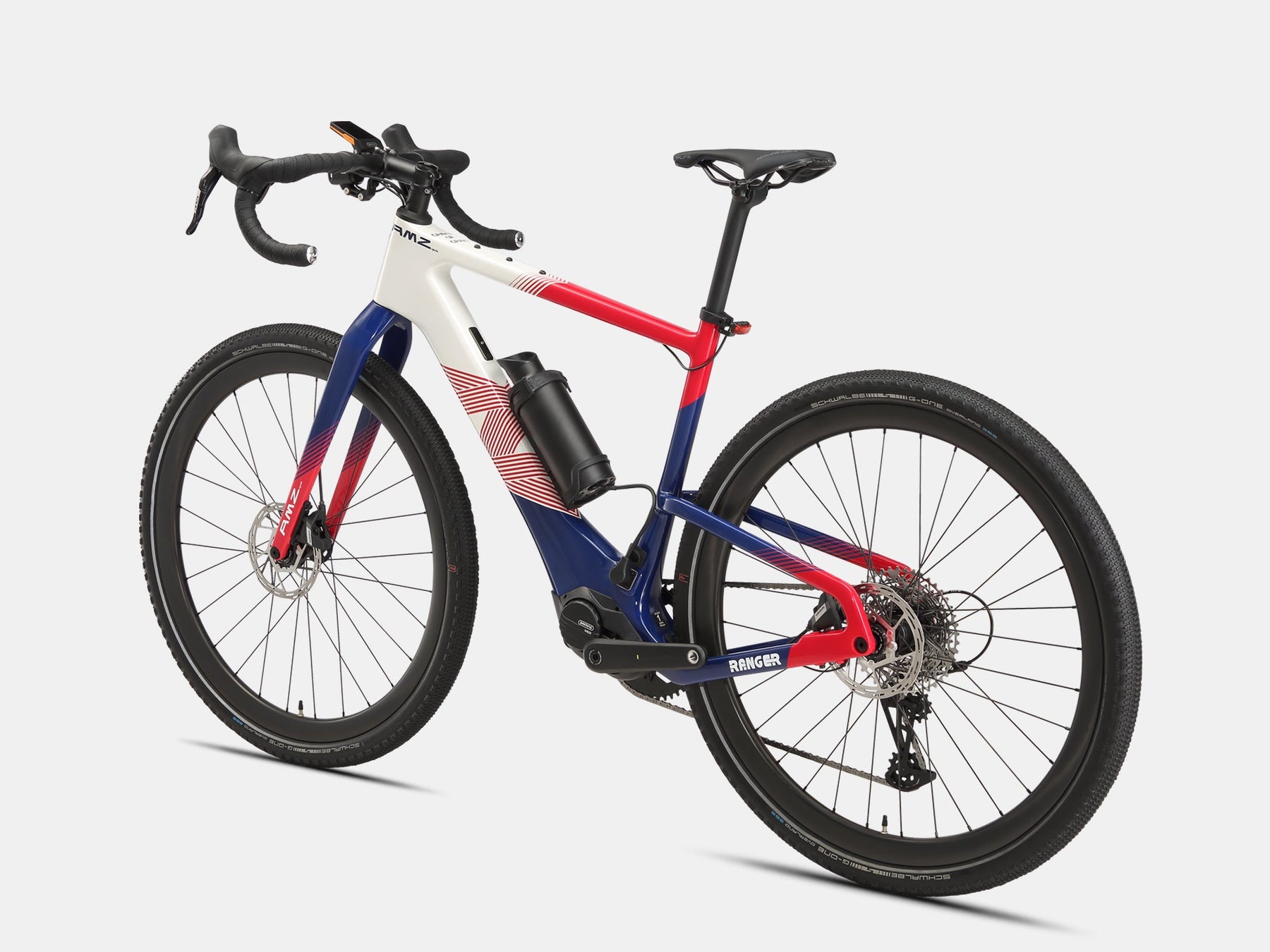

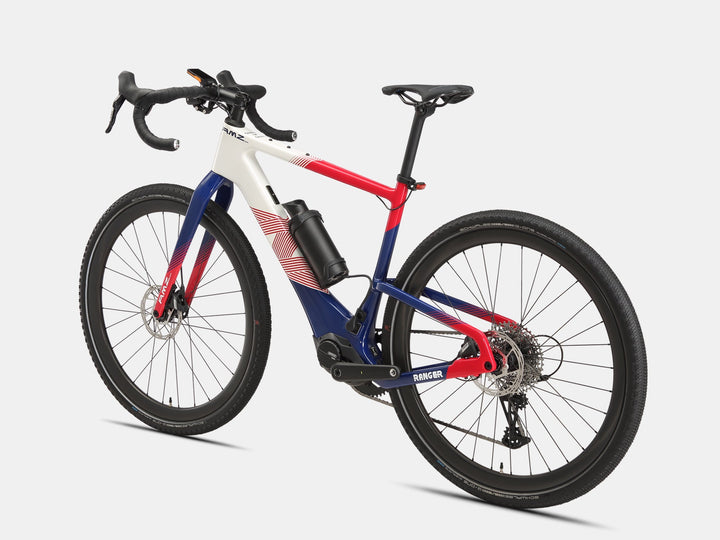

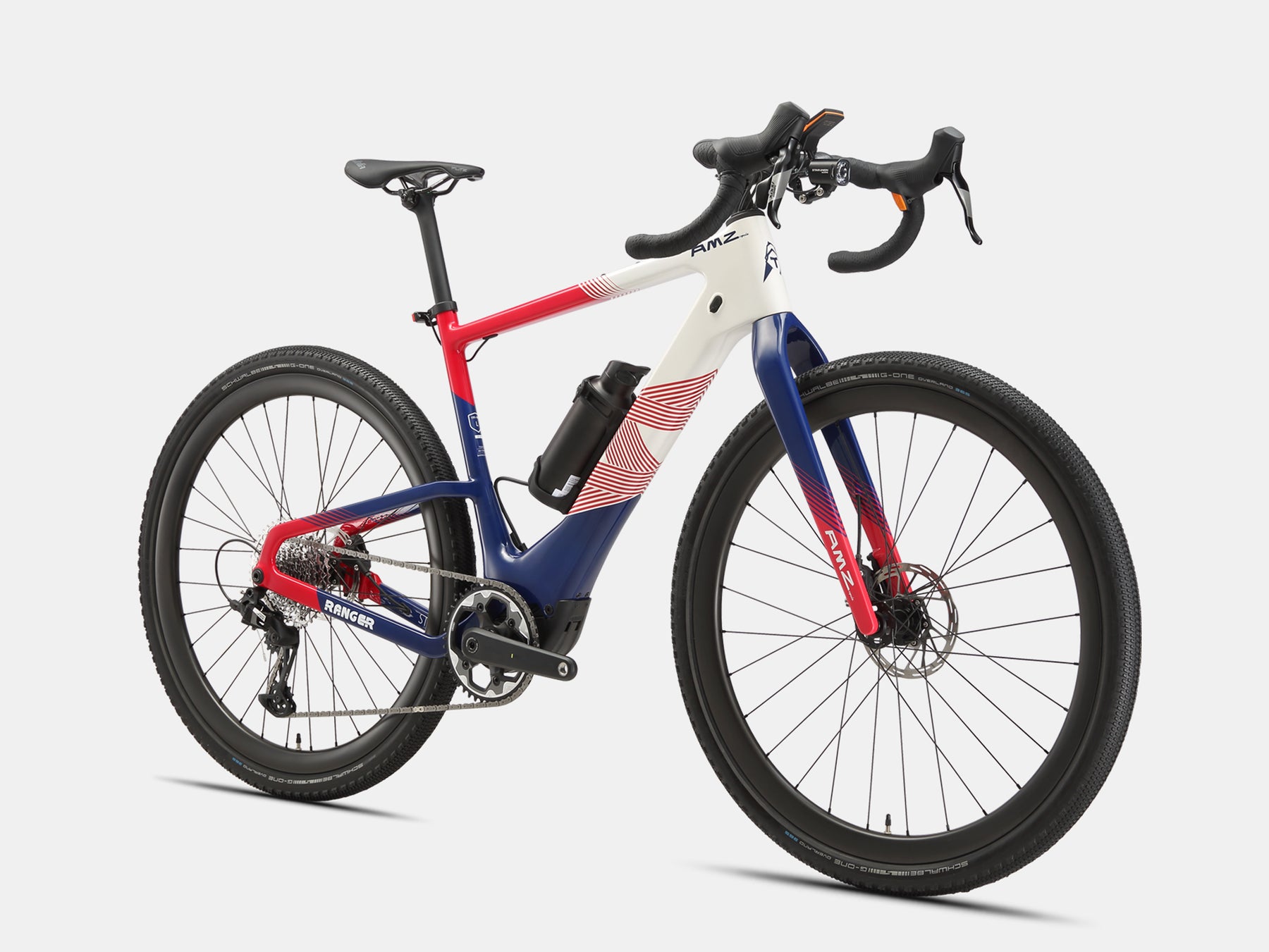

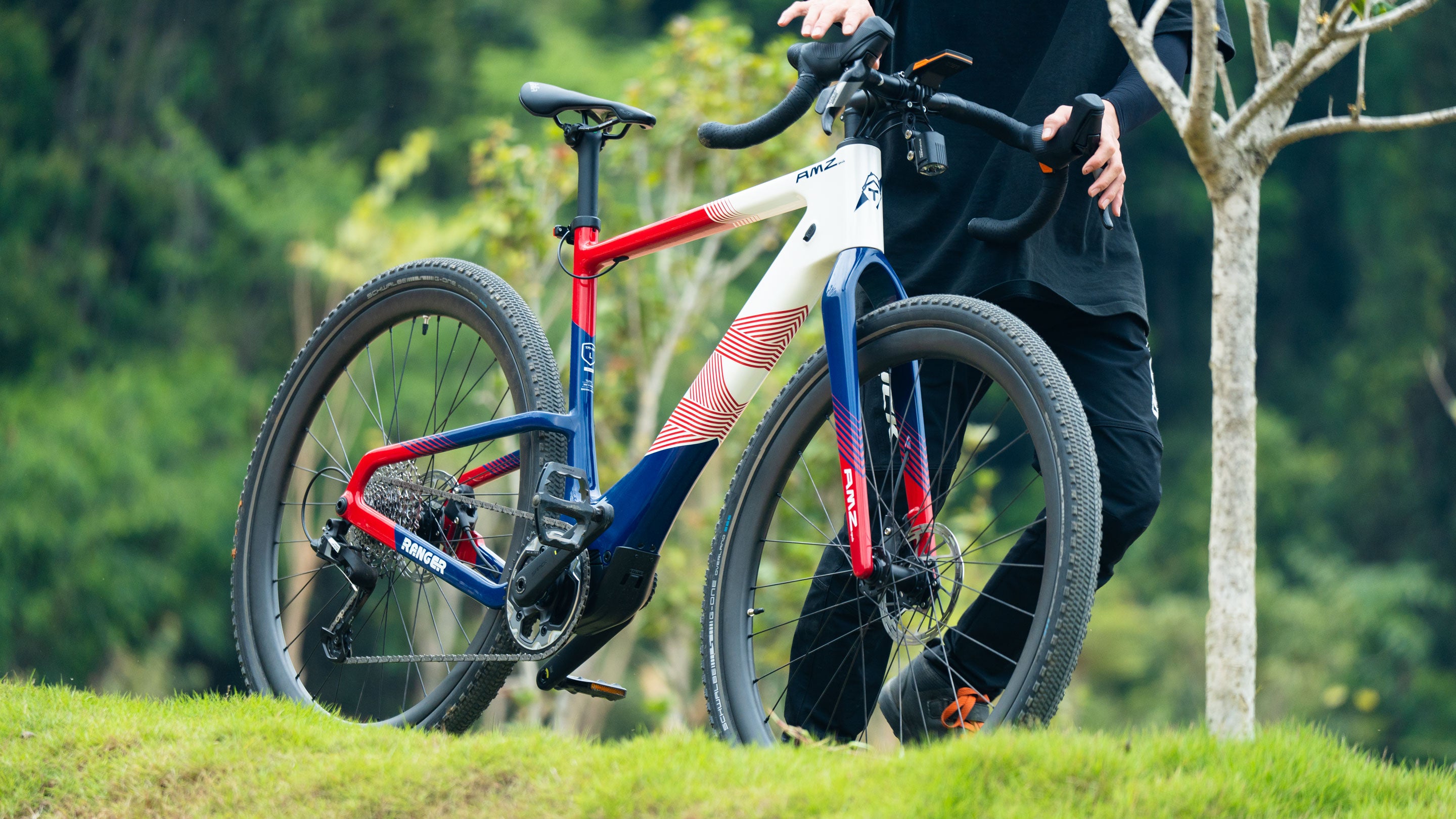

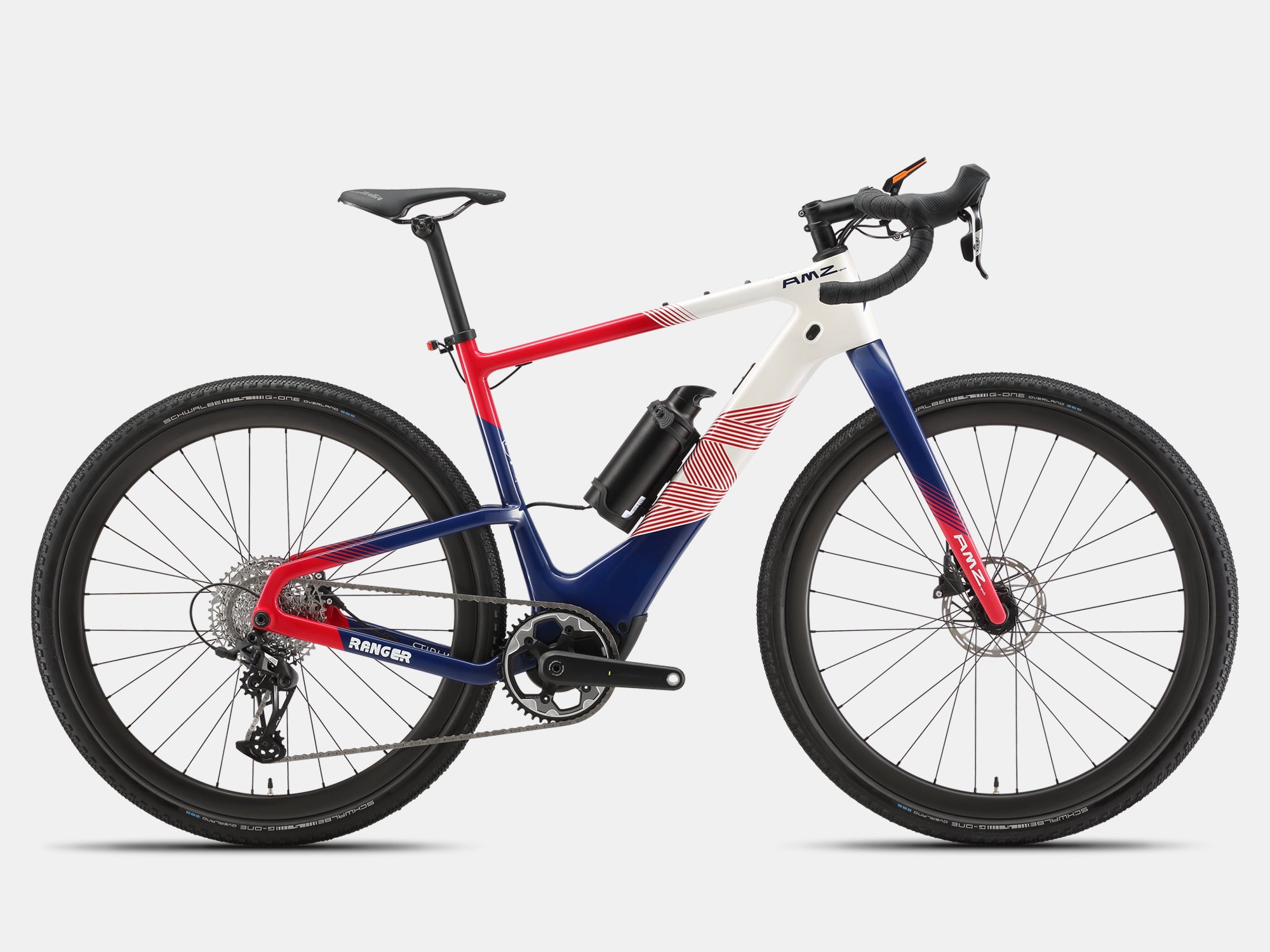

Ranger APEX Electric Gravel Bike
Lightweight, Speed and Endurance
Regular priceUSD $5,299.00
Top Speed
20MPH
MOTOR POWER
250W
RANGE
Up to 100 Miles (Dual Battery)
Weight
32lbs（L size）
- Class 1
- Carbon Fiber Frame & Fork
- 250W Power
- 75N.m Torque
- 378Wh + 252Wh Dual Battery
- 6-8H charging time
- 14 Days Return
- 5-year warranty
- Free & Fast Shipping
Technical Specifications
Performance Table
| E-bike Class | Class 1 |
| Weight | 37.3 lbs (16.9kg) |
| Voltage | 36V |
| Maximum Load | 264.6 lbs (120KG) |
| Battery Capacity | 378WH+252WH(Option) |
| Motor Power | 250W |
| Max Pedelec Range | 50-62(80-100KM)+31-37(50-60KM) |
| Max Pedelec Speed | 20mph / 32km/h |
| Charging Time | 6-8h |
Spec Table

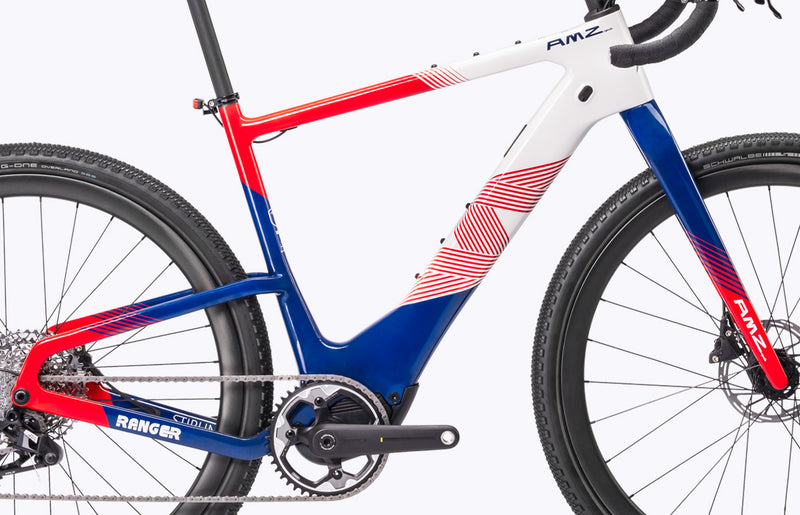

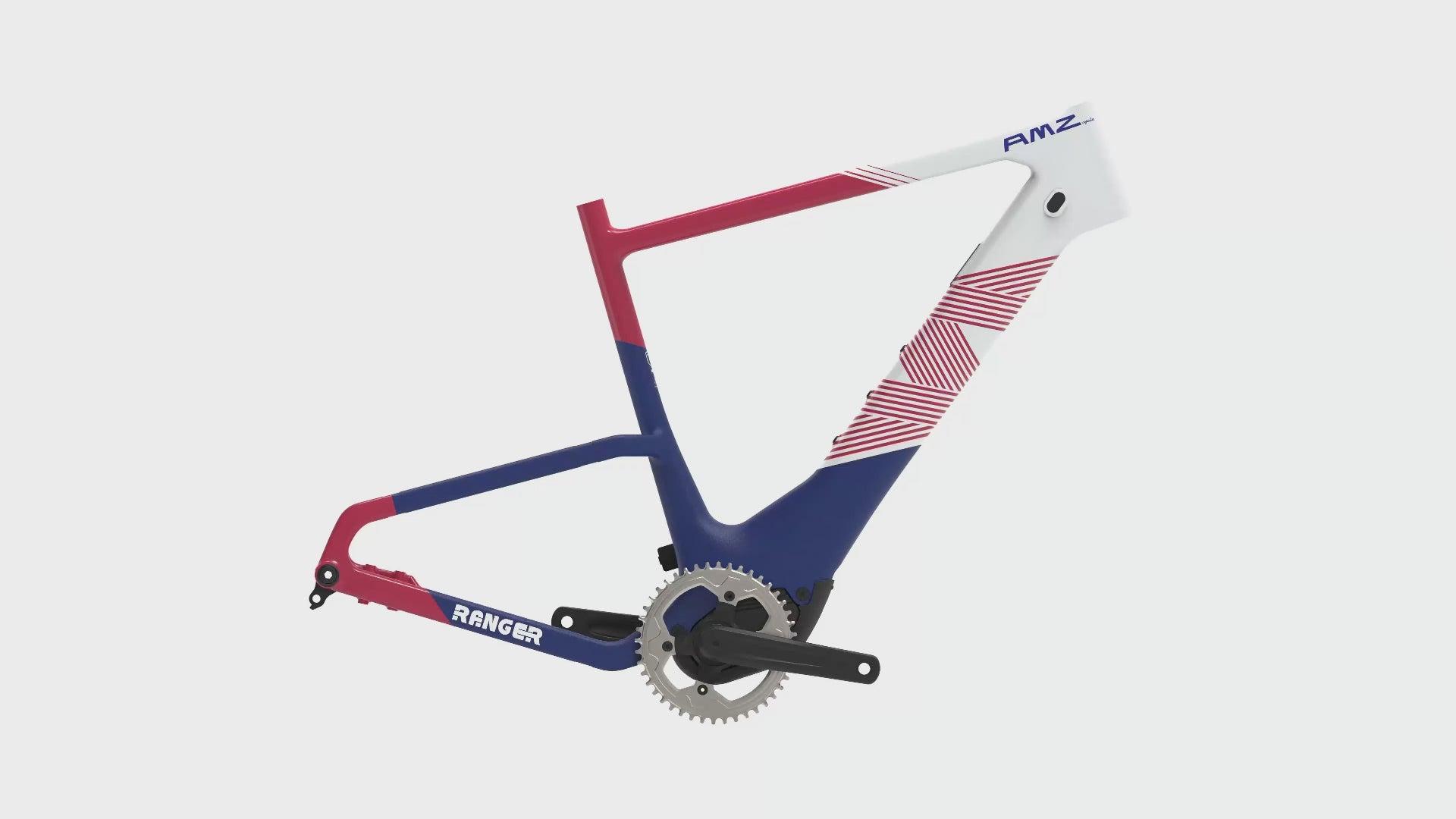

| Frame Set | Full Carbon Fiber Frame；700C；142*12mm Axle；UDH；FICR；Dual Battery system；Flat Mount Brake | ||||
| Headset | FICR；51.8*8.7mm-51.8*6.8mm Bearing | ||||

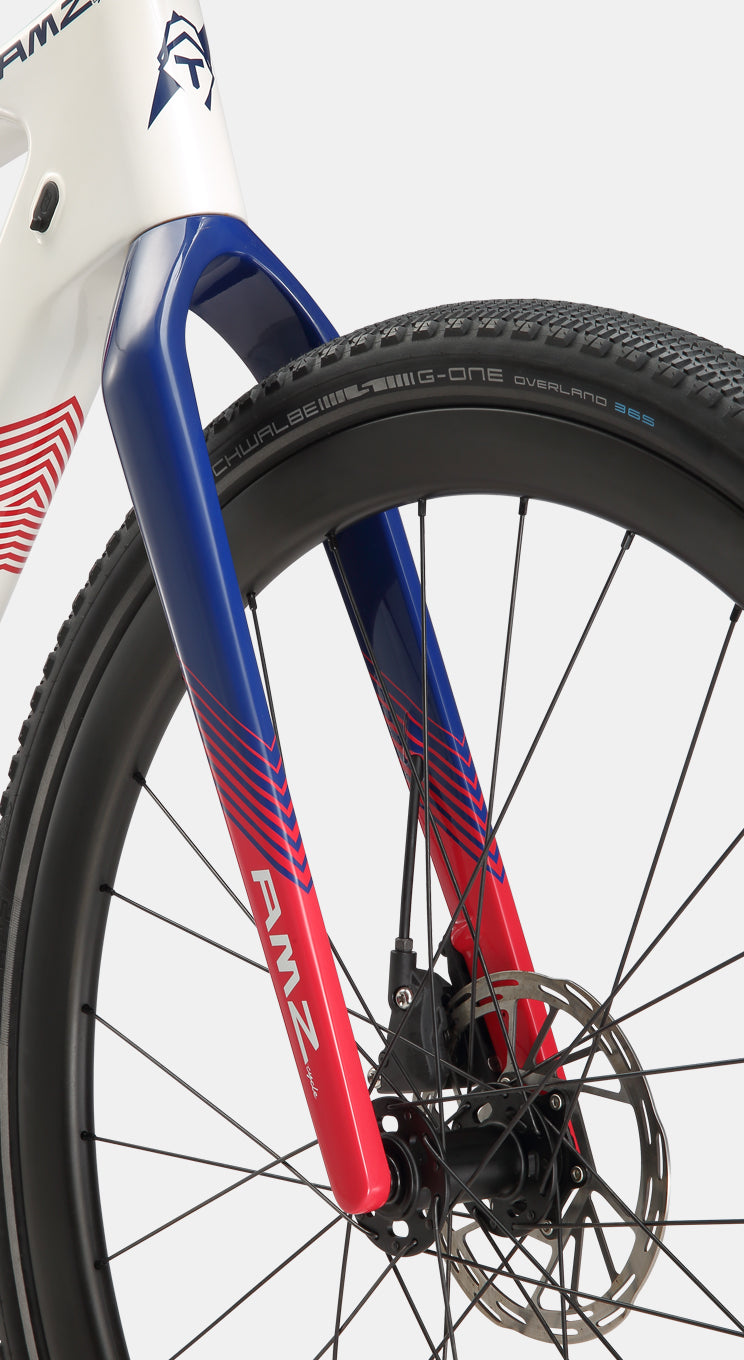

| Fork | Full Carbon Fiber；700C；12*100mm Axle；FICR | ||||

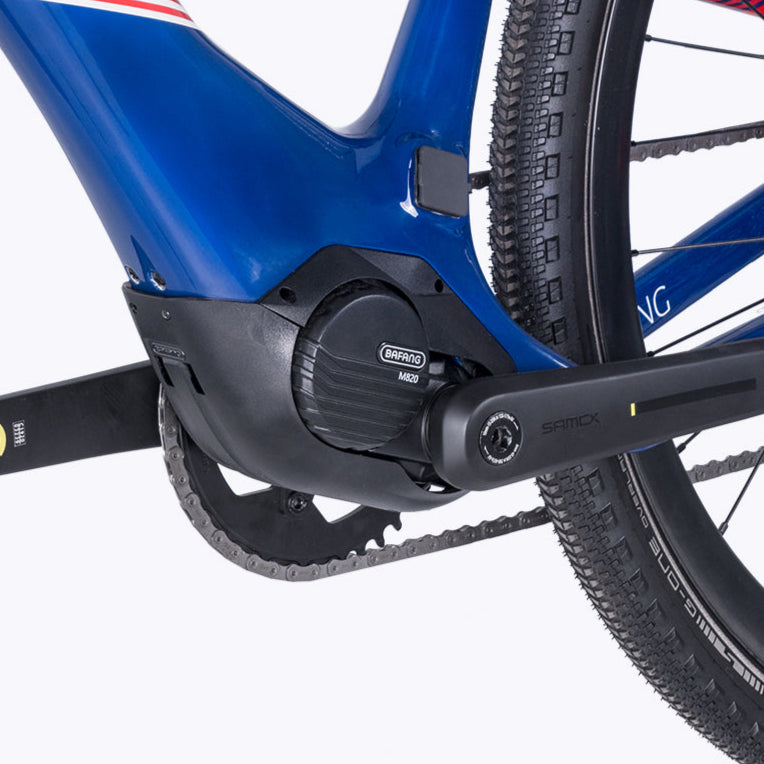

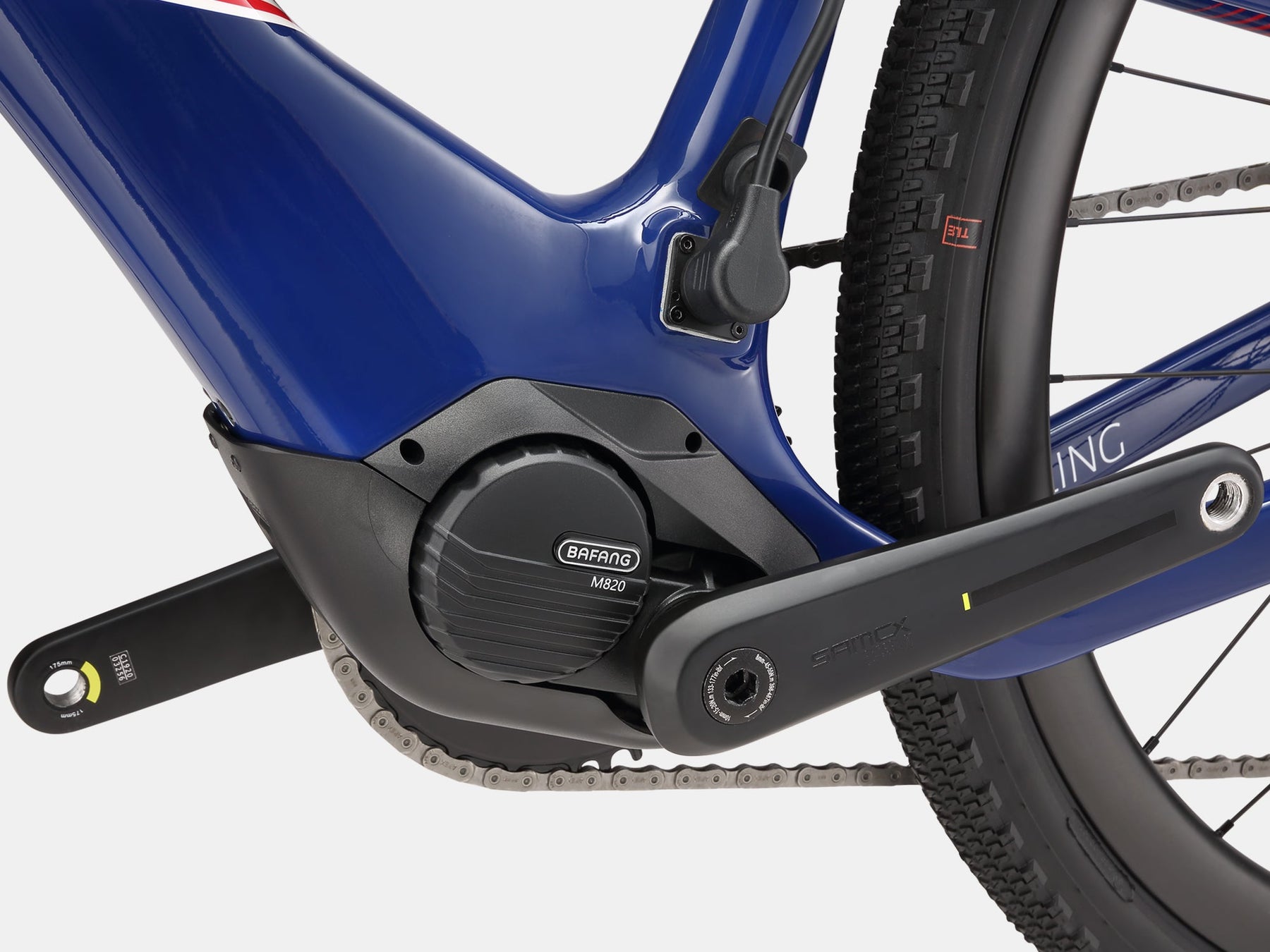

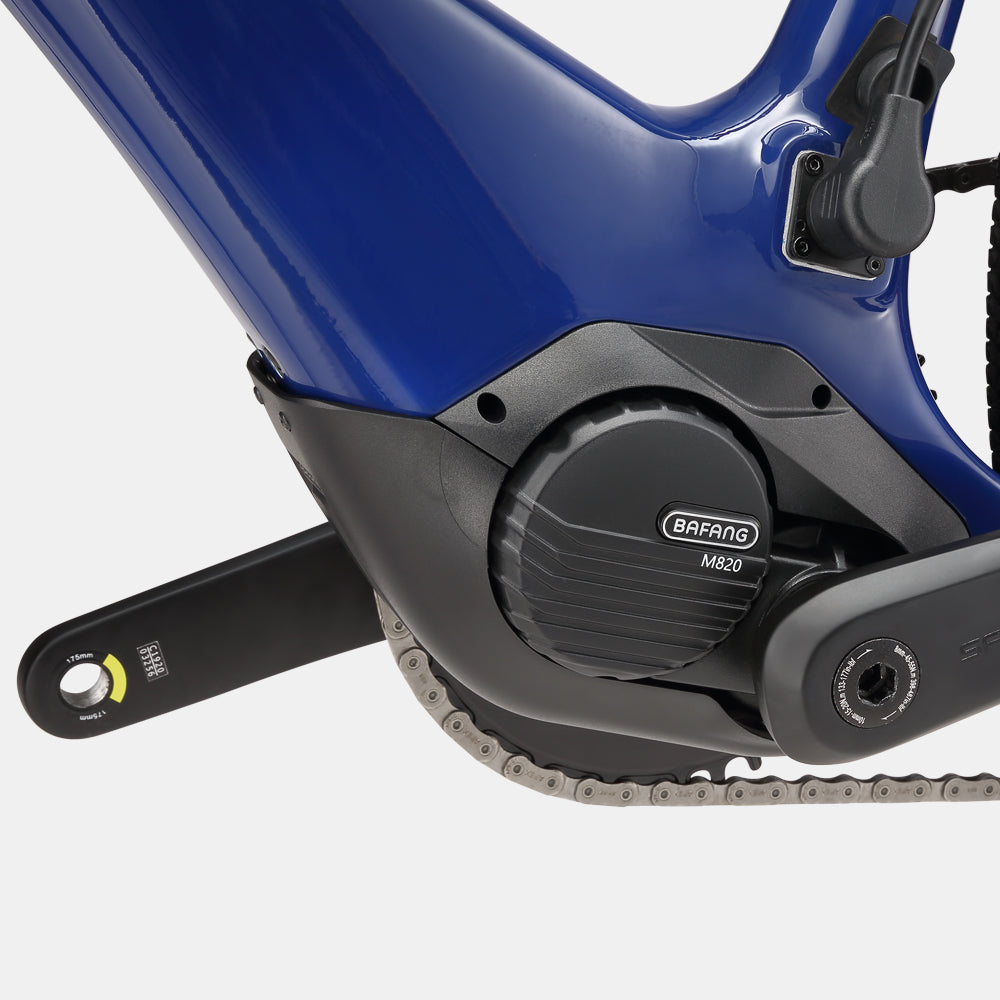

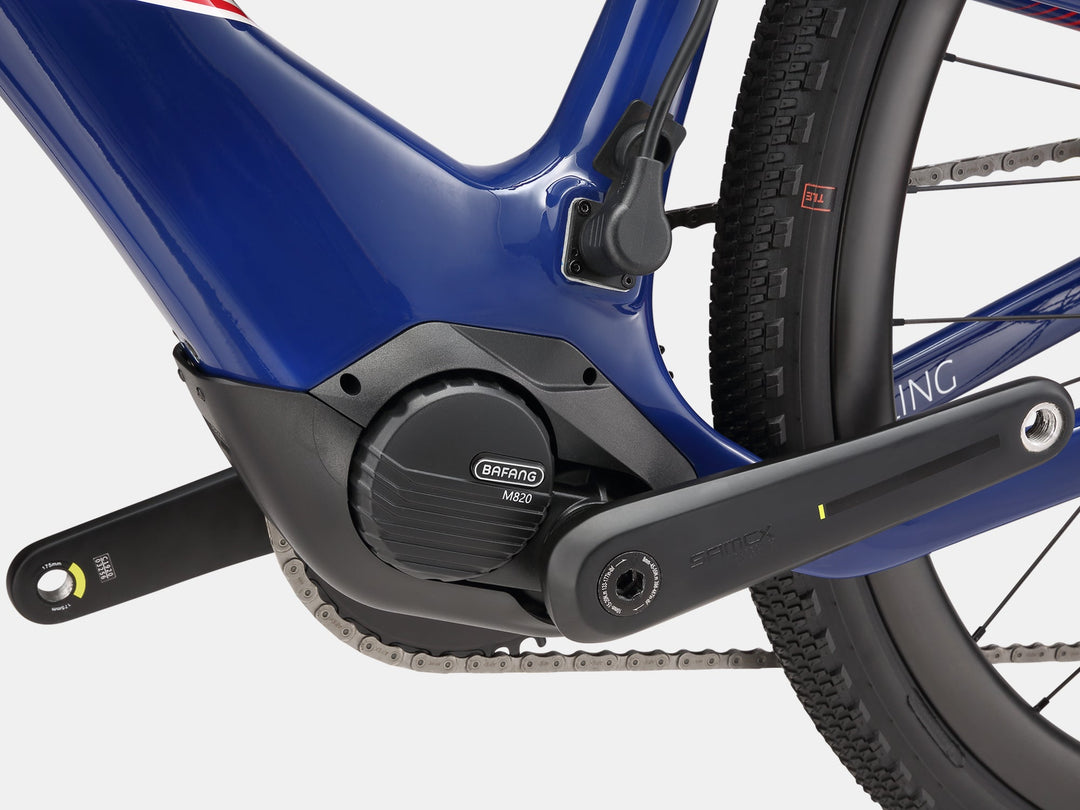

| Motor | BaFang M820；250W; 75N.m | ||||
| Battery | SAMSUNG 18650Cell；36V10.5Ah；378Wh；UL2271；DC2.1；IPX5 | ||||

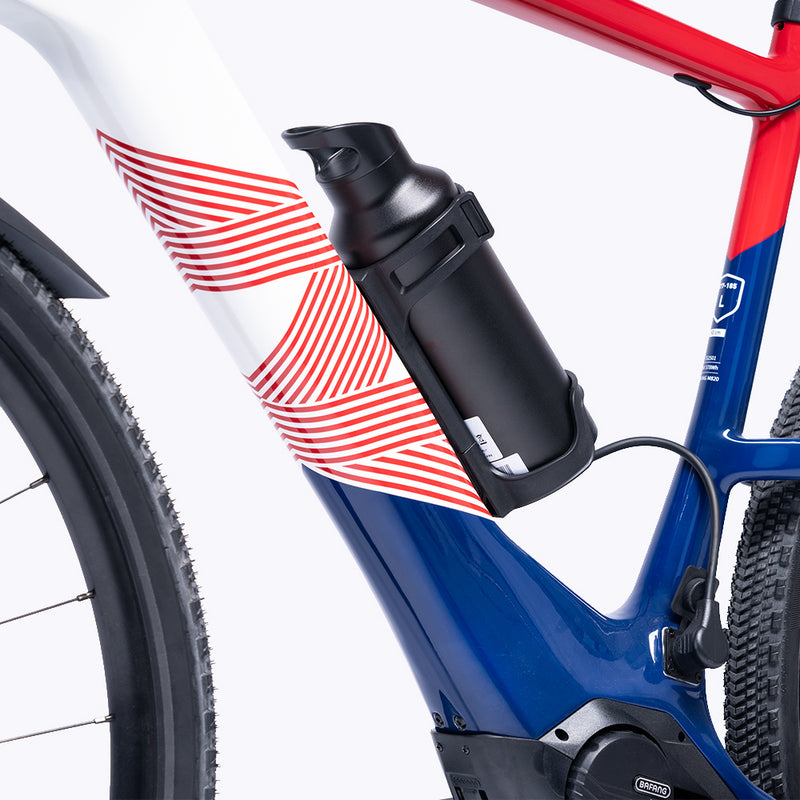

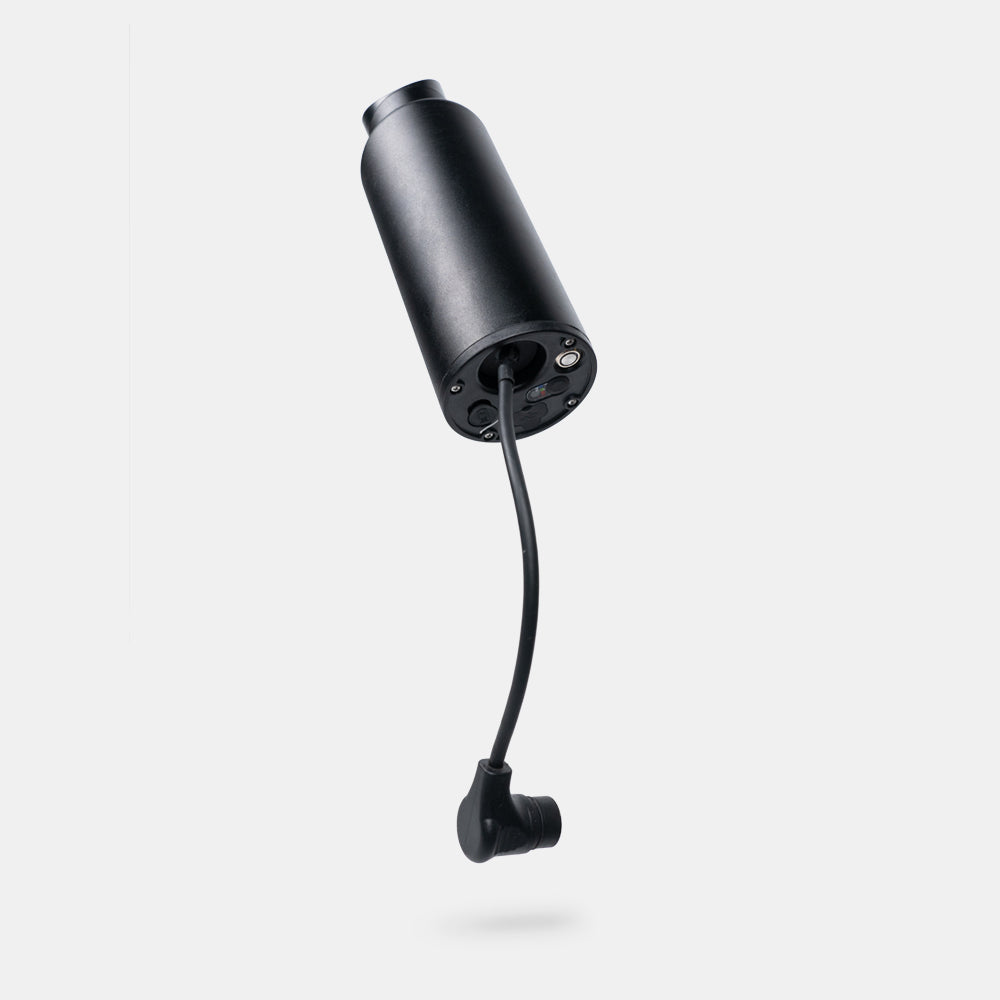

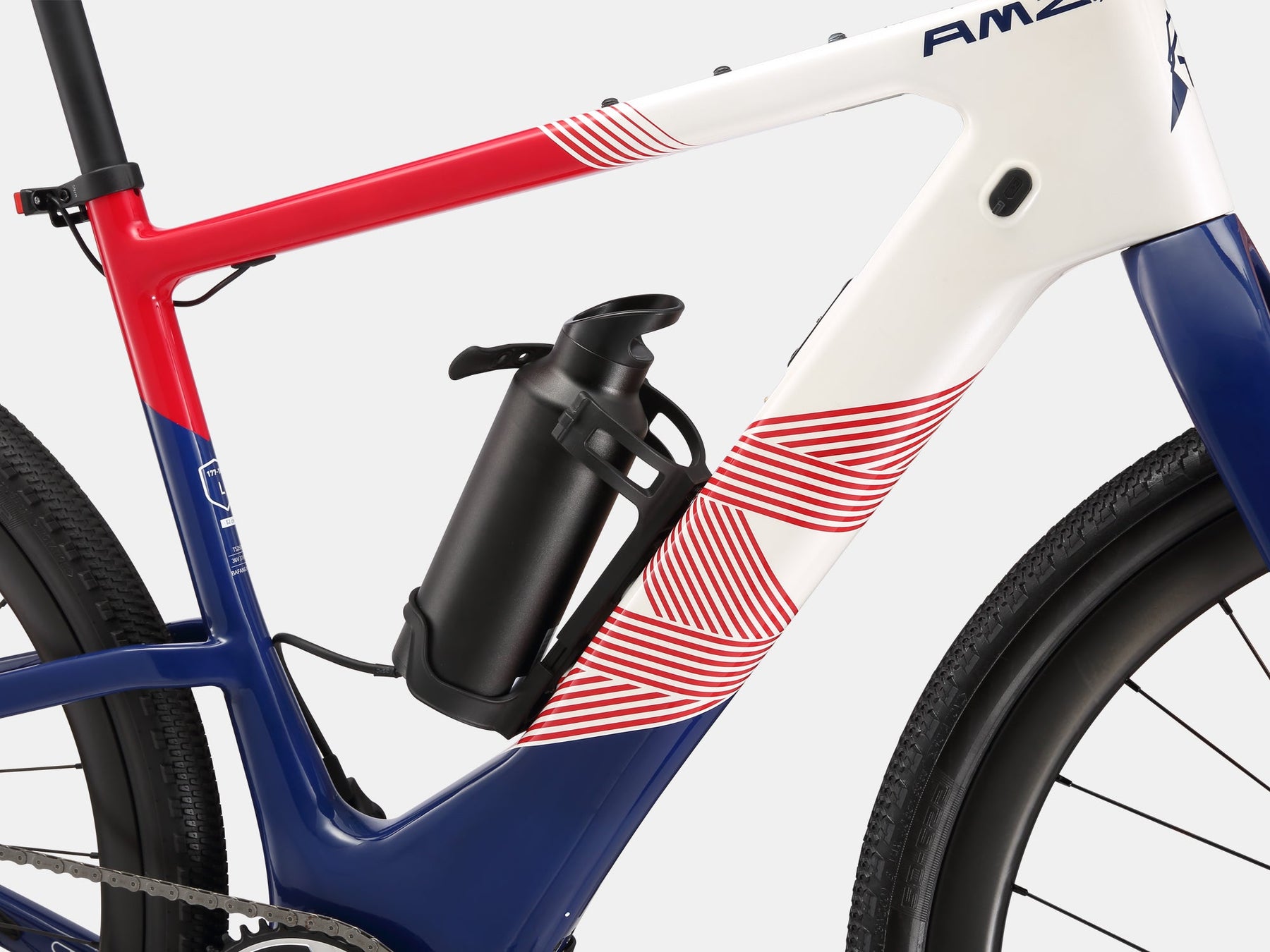

| Extra Battery | SAMSUNG 18650Cell；36V*7Ah；252Wh；UL2271；DC2.1；IPX5 | ||||
| Controller | BaFang M820 | ||||

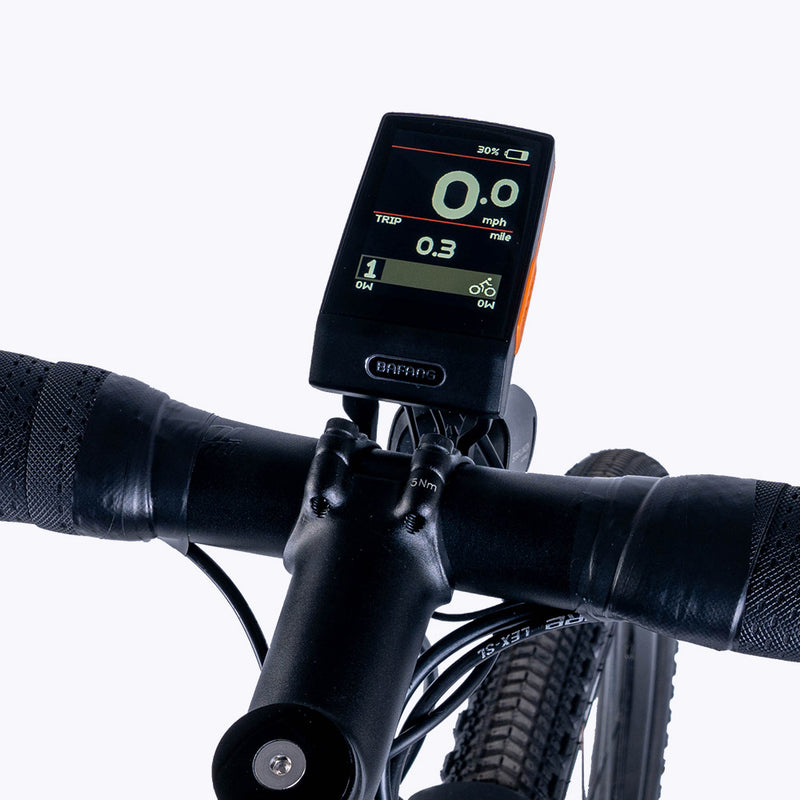

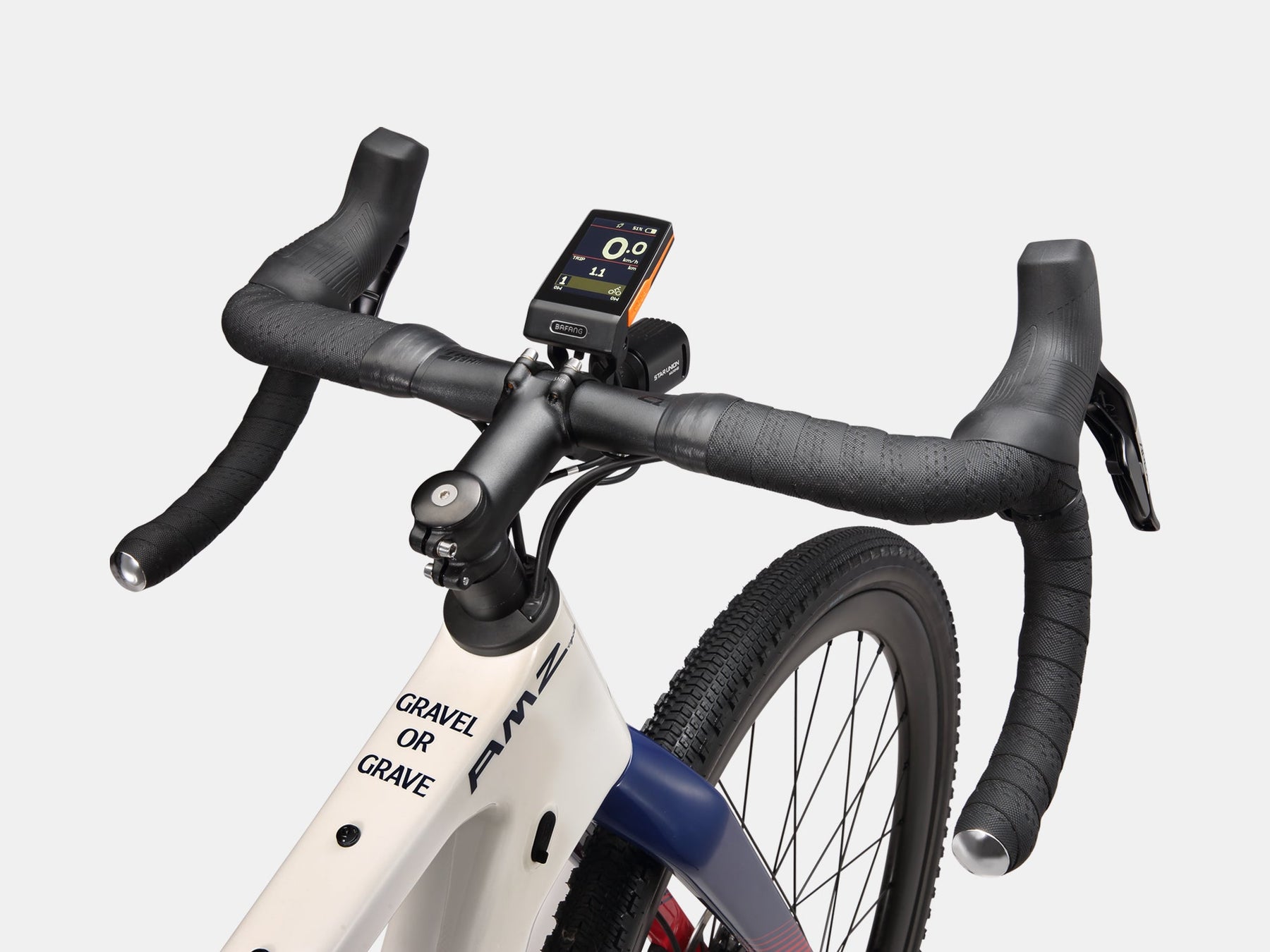

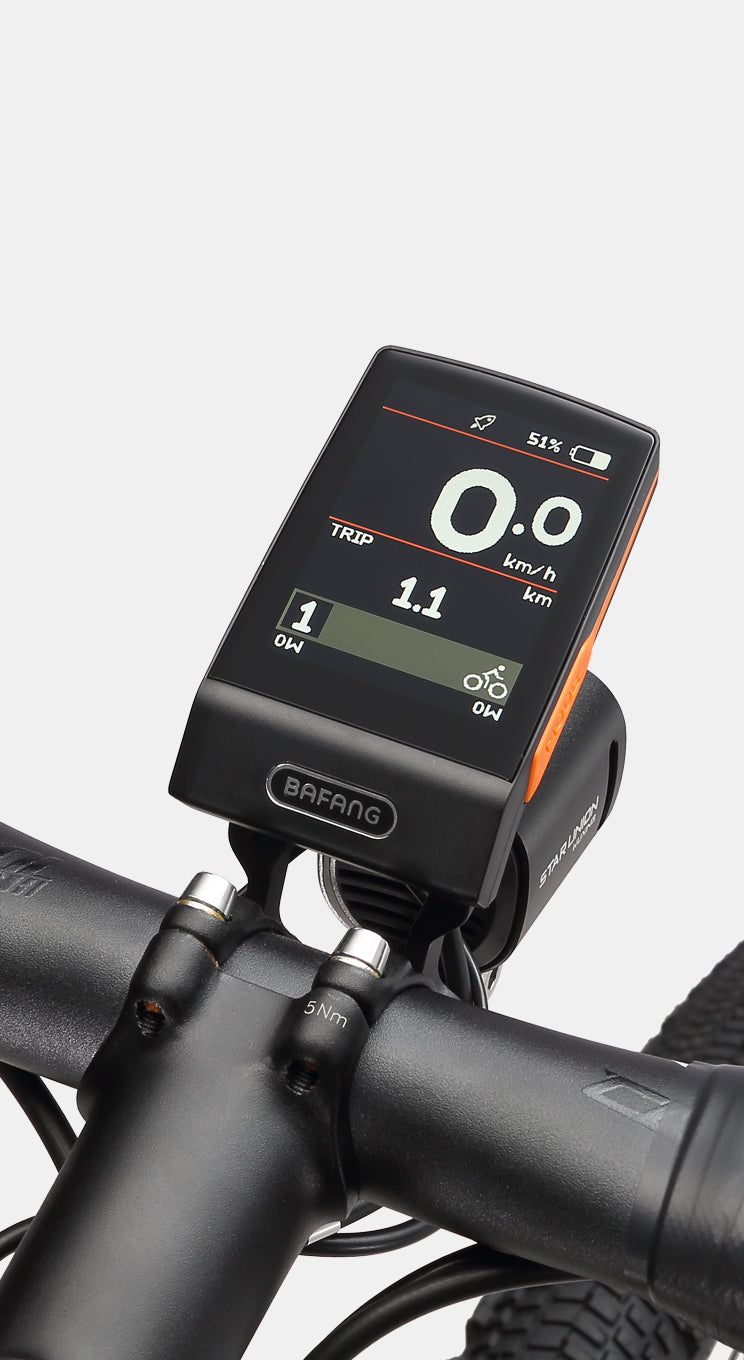

| Display | BaFang；2.4inch | ||||

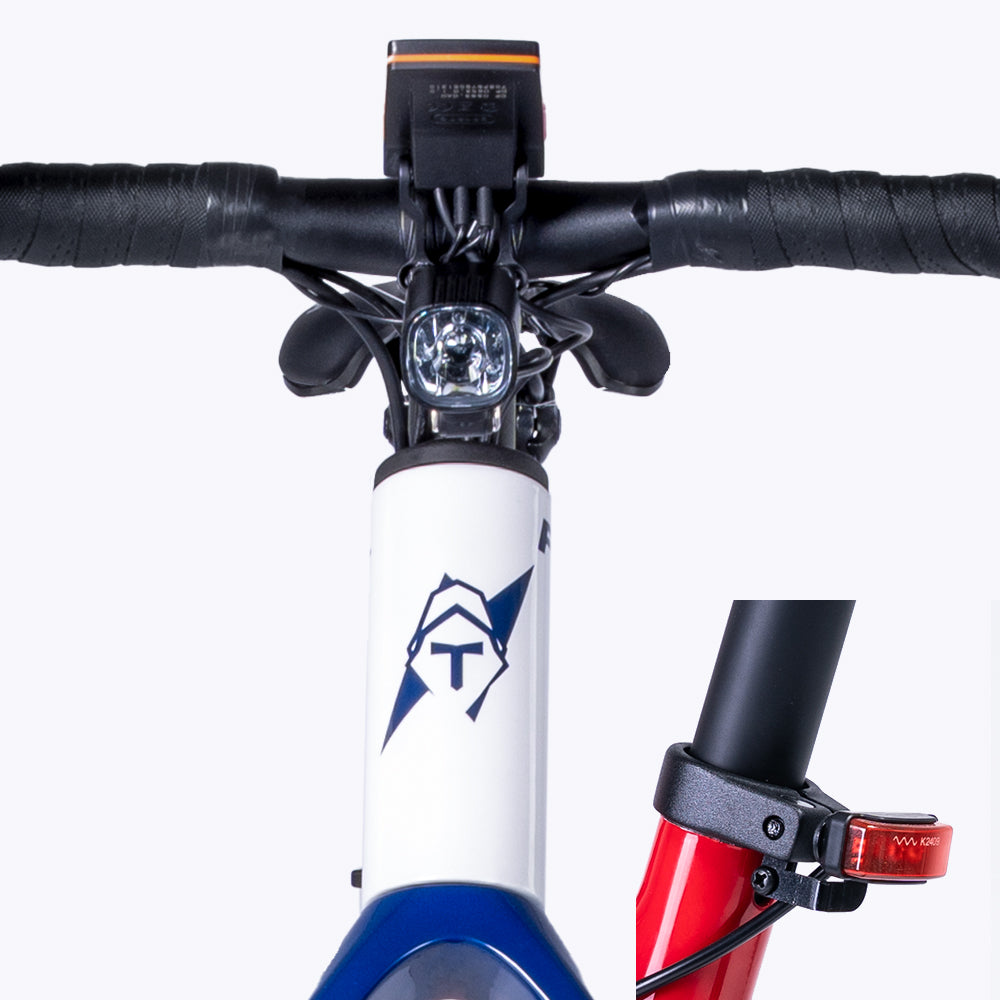

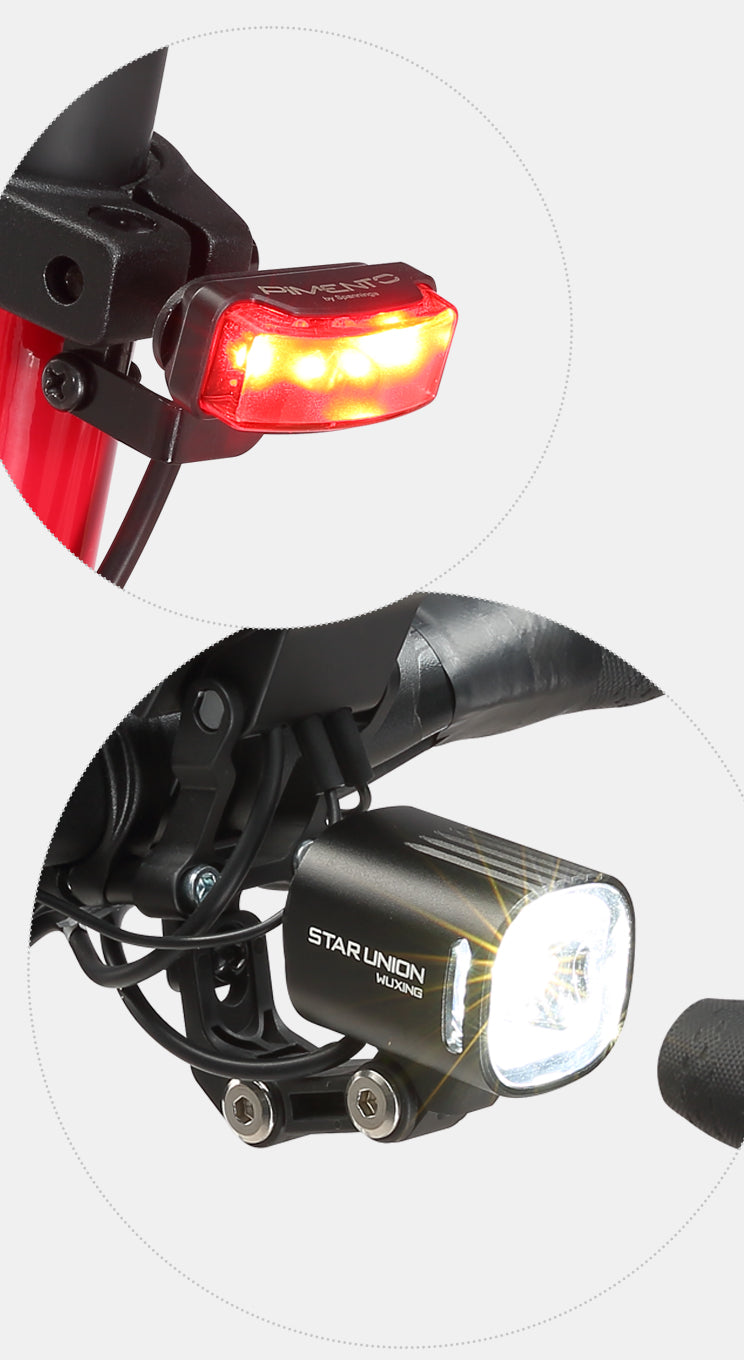

| Headlight | LED；12V 0.3A(3.5W) | ||||
| Taillight | LED；12V 0.025A(0.3W) | ||||
| Speed Sensor | BaFang SR S02 | ||||
| Dual Control Lever | SRAM APEX；1*12s；HD | ||||

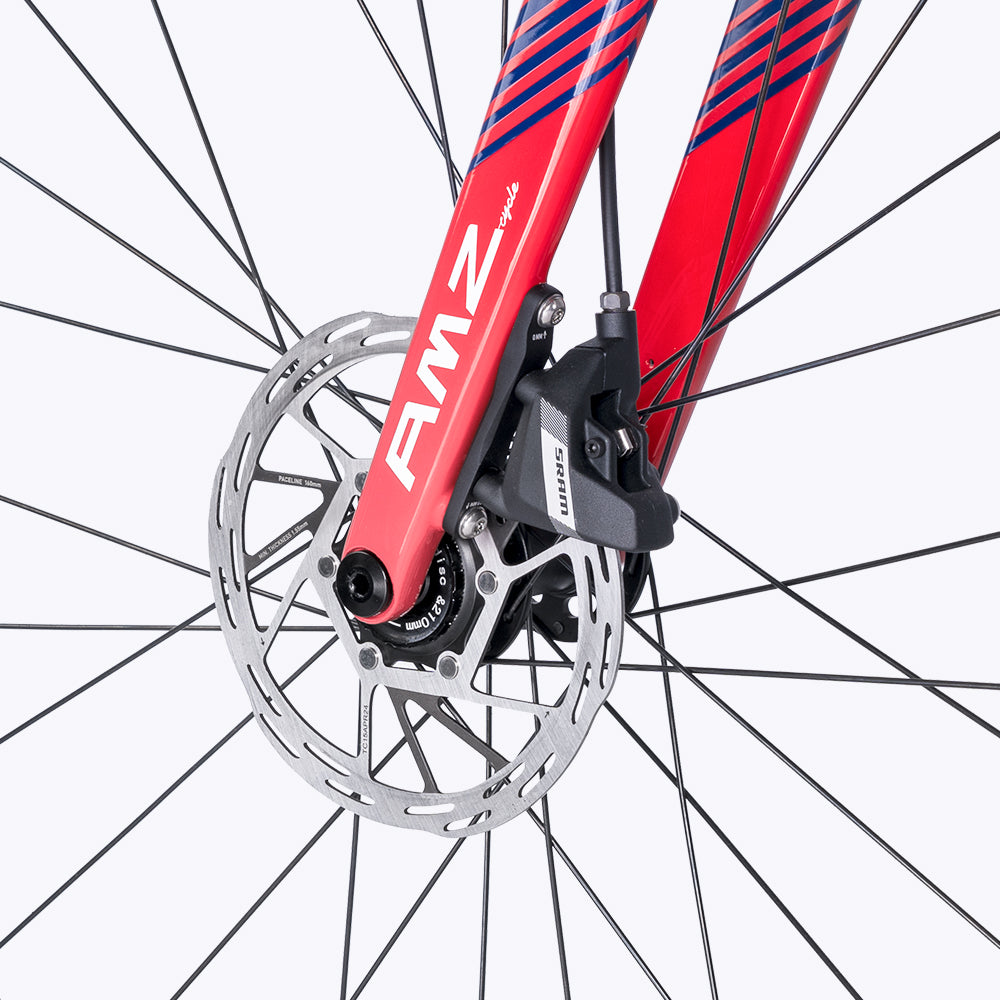

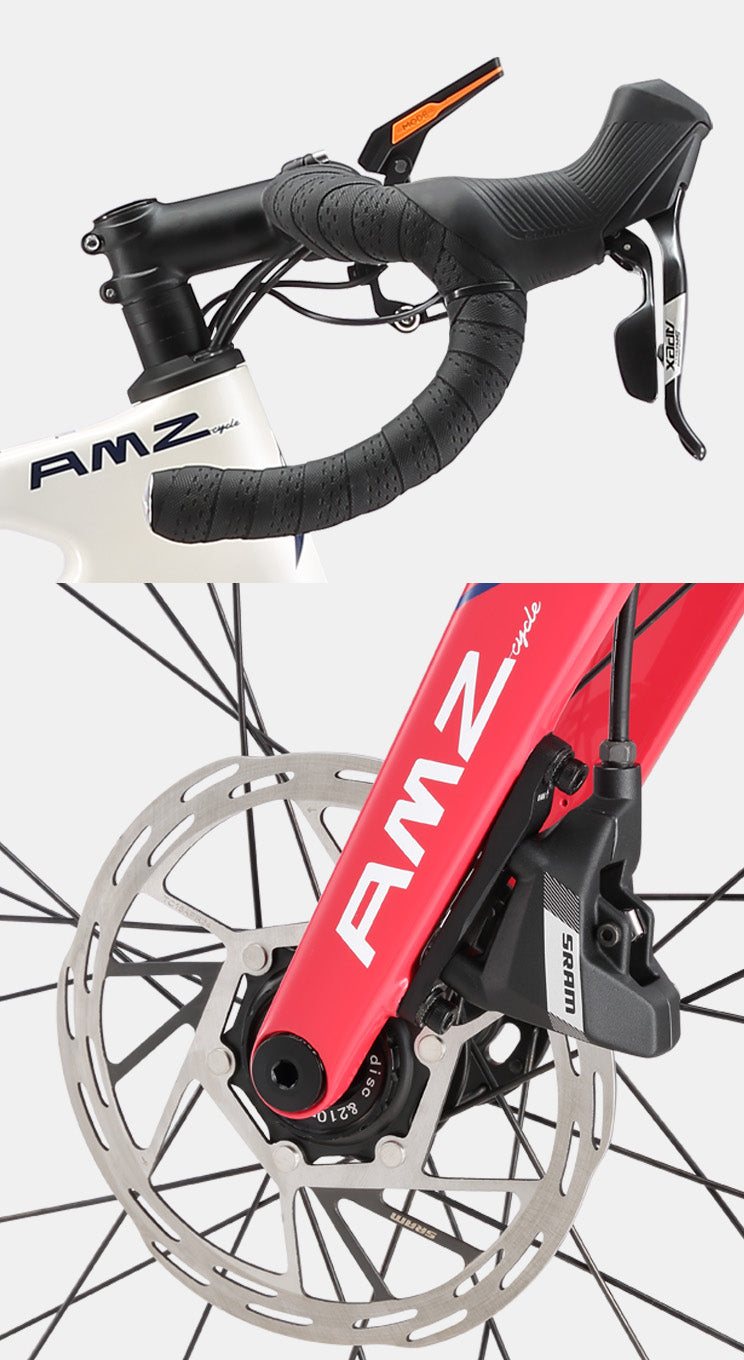

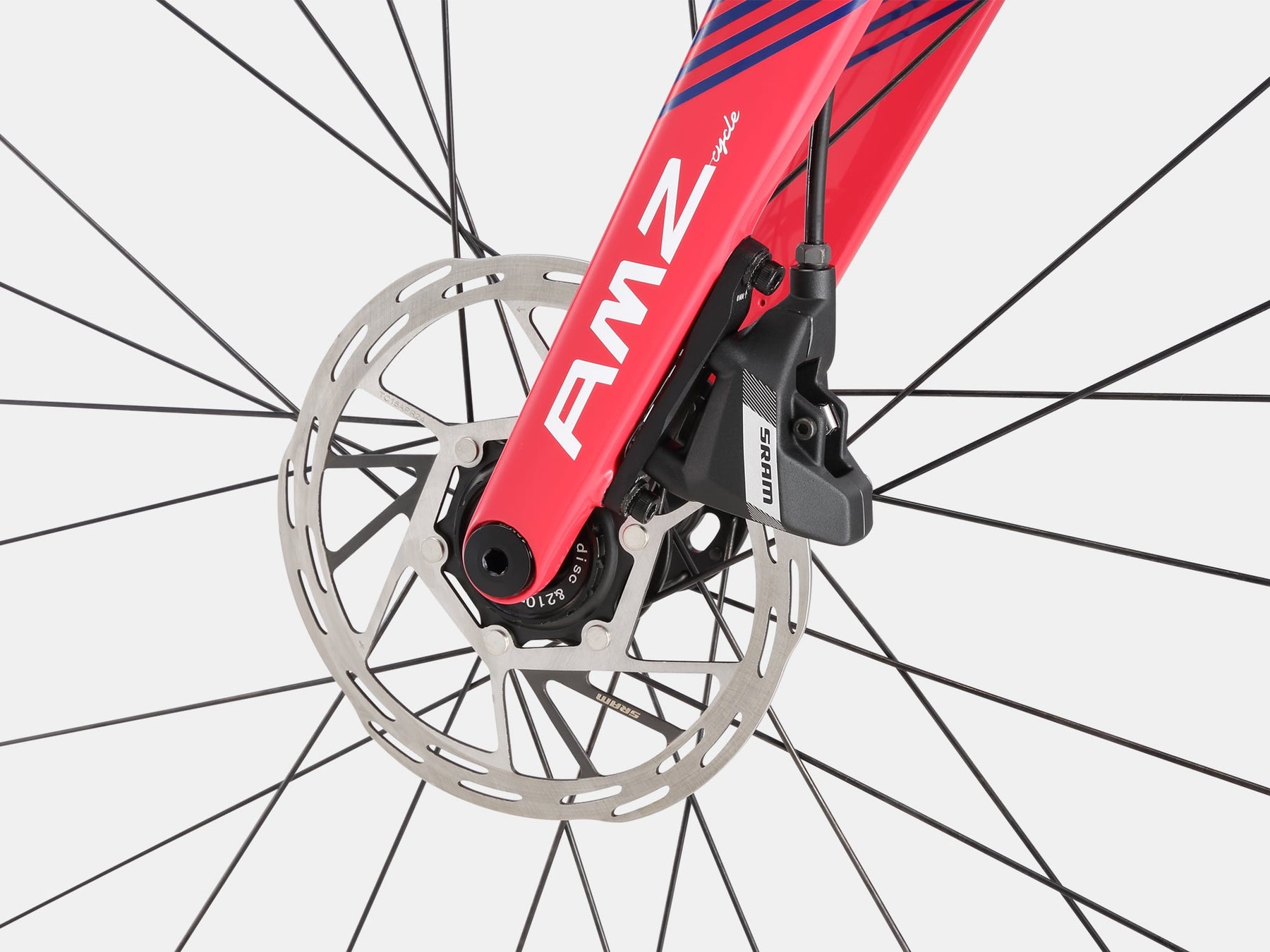

| Front Disc | SRAM 6.3"(160mm)；0.07"(1.85mm)；Centerlock | ||||
| Rear Disc | SRAM 6.3"(160mm)；0.07"(1.85mm)；Centerlock | ||||

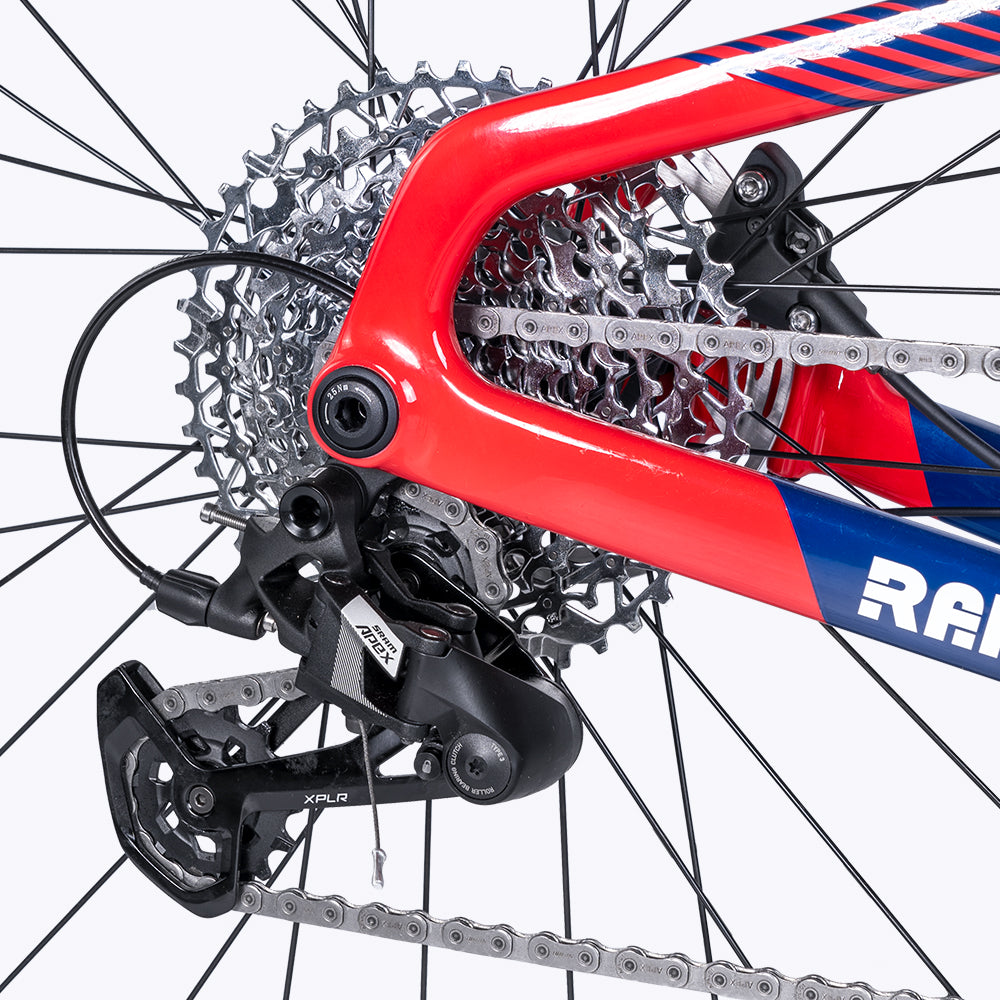

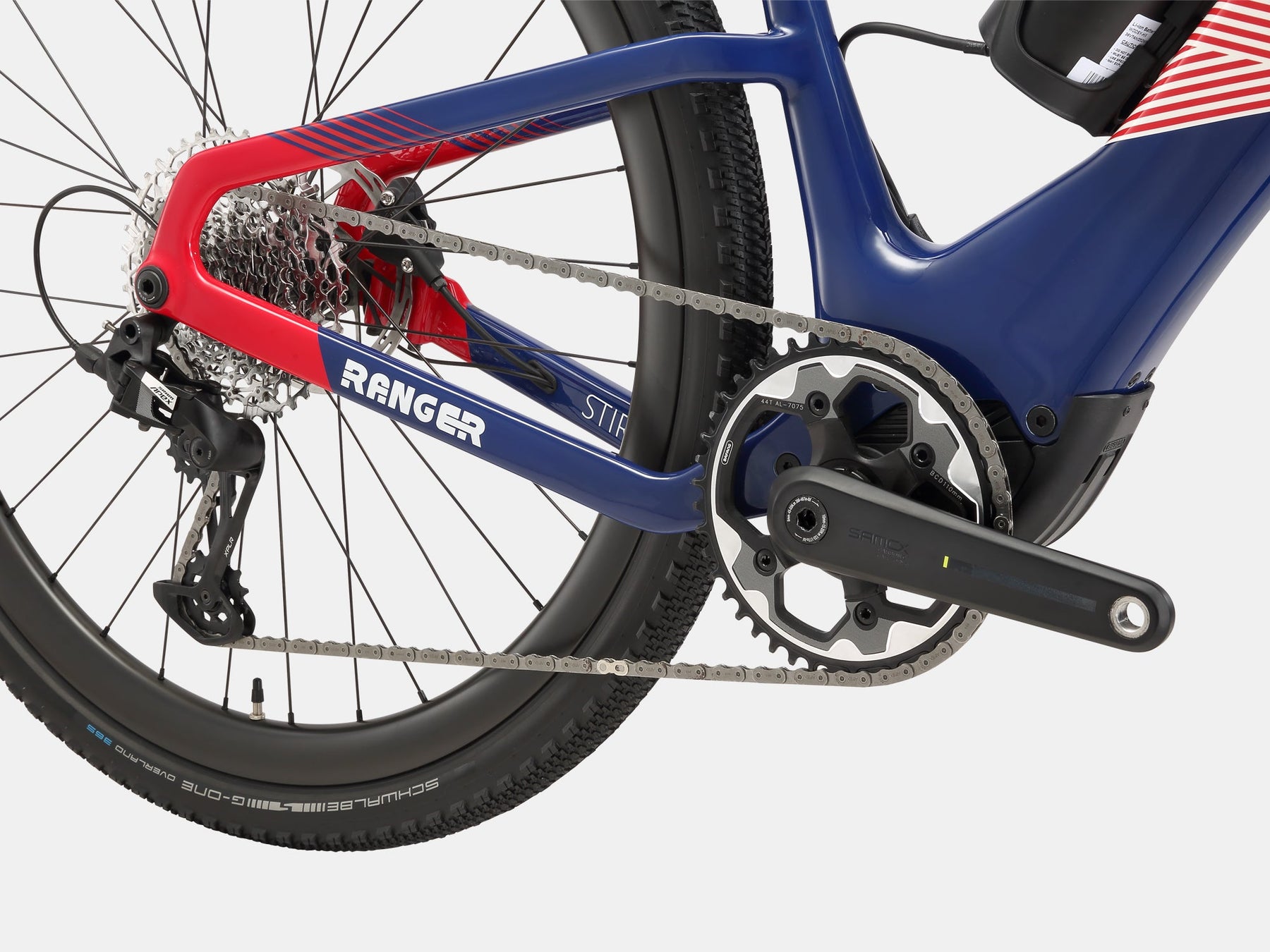

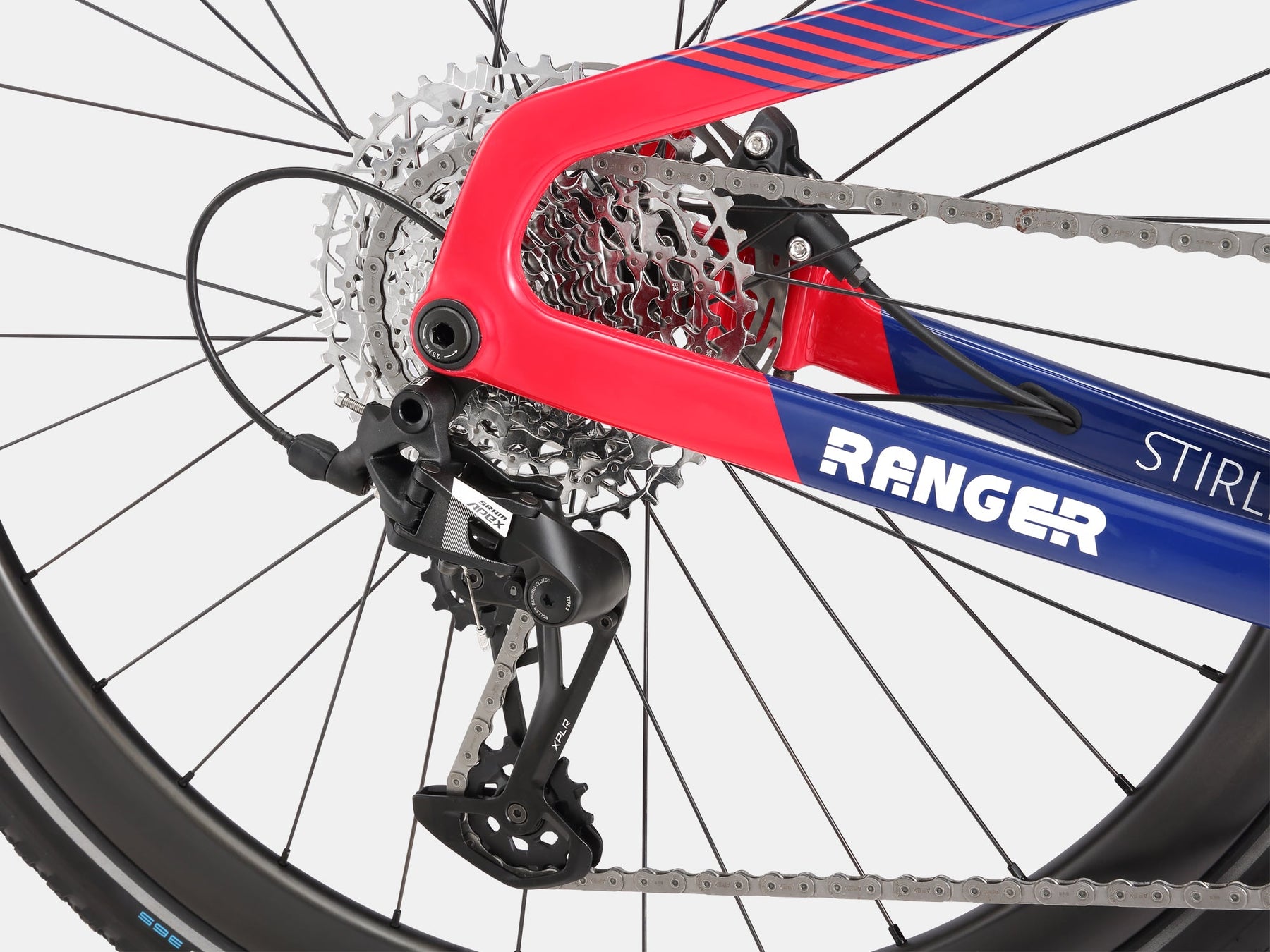

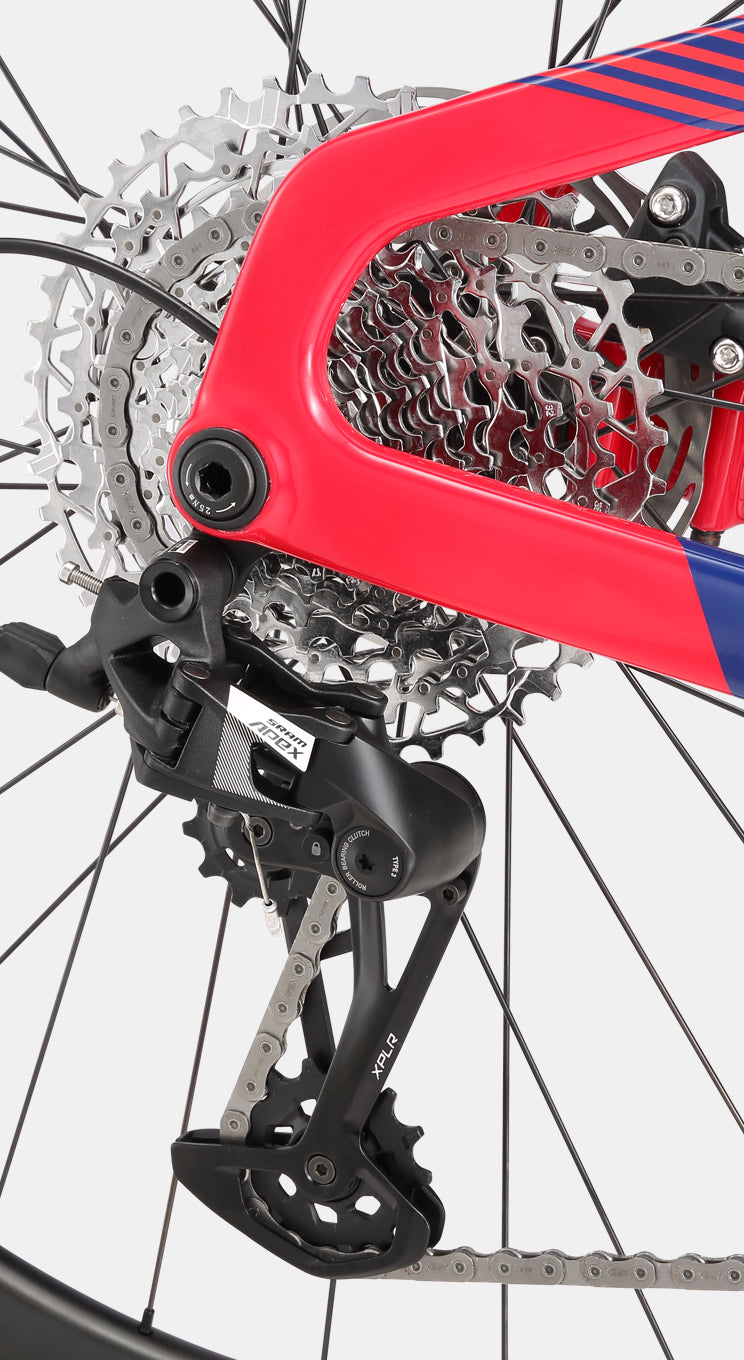

| Rear Derailleur | SRAM APEX；1*12s | ||||
| Chainring | BaFang G532；44T；CL49 | ||||
| Crankarm | SAMCX CEC05；6.9"(175mm)；Carbon Fiber Crankarm | ||||
| Chain | SRAM APEX 12s | ||||
| Cassette | SRAM APEX；12s；10-51T | ||||

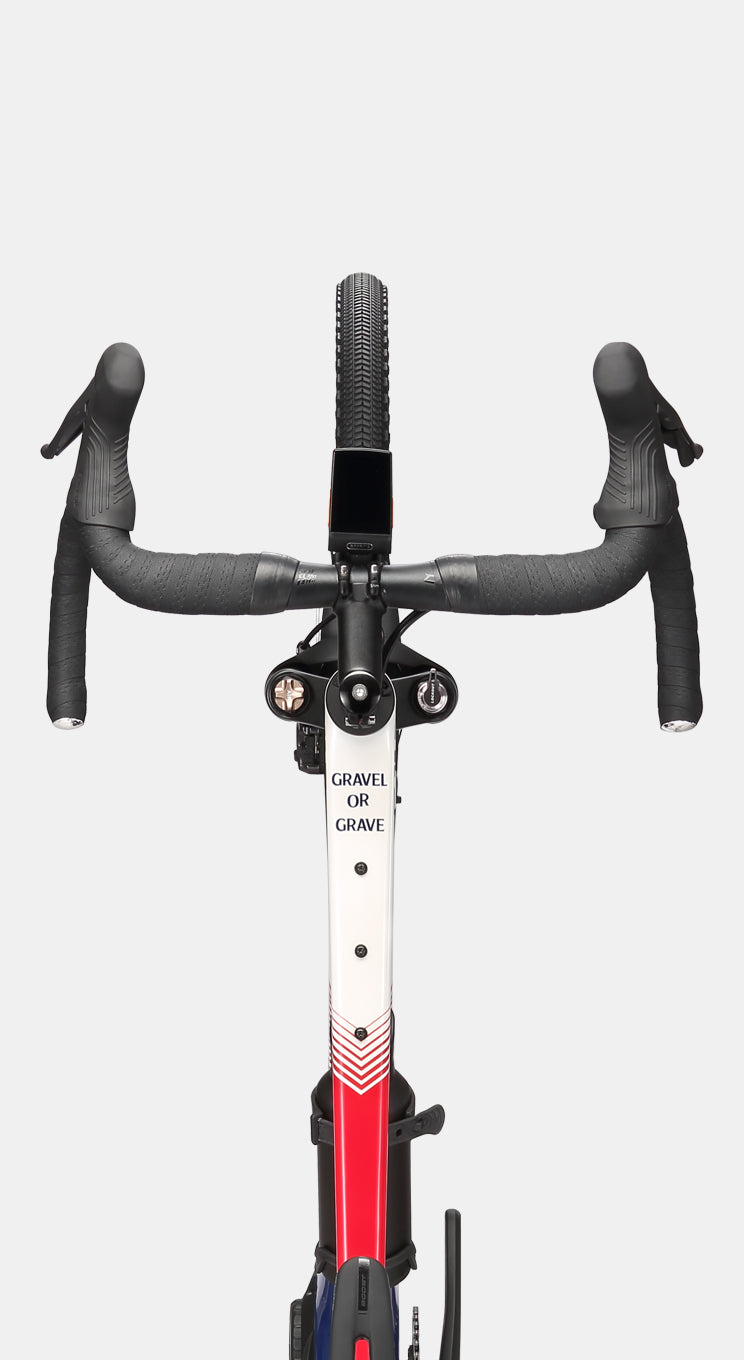

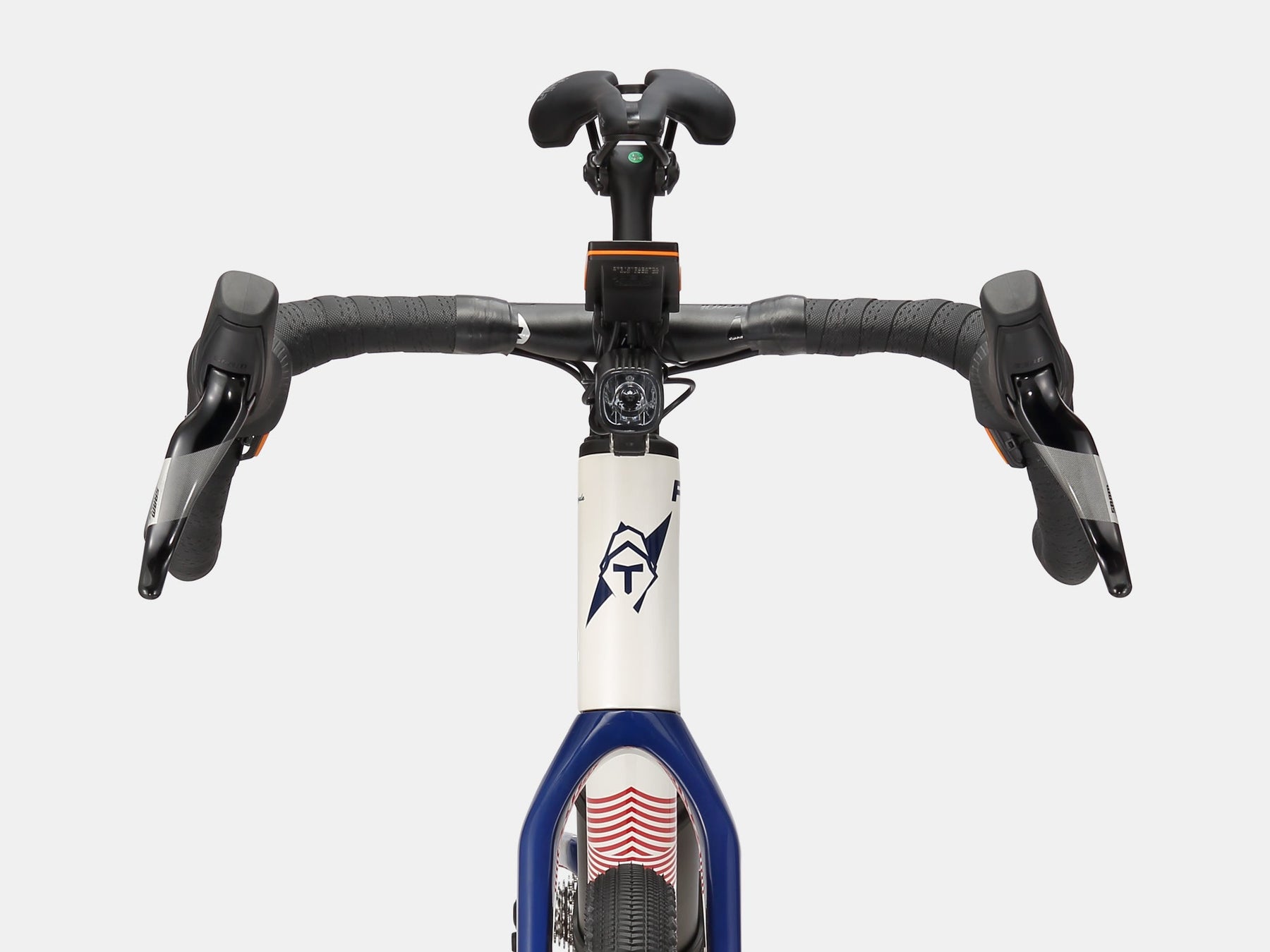

| Bar | Controltech；AL6061；W:16.5-19.1"(420-484mm)；Sidesweep:16°；W1：18.3-19.8"(464-504mm) | ||||
| Stem | AL6061；Ext.:3.1"(80mm)；Angle: -7°；Diameter:31.8mm；Steerer:28.6mm；Height: 1.6"(40mm)； | ||||

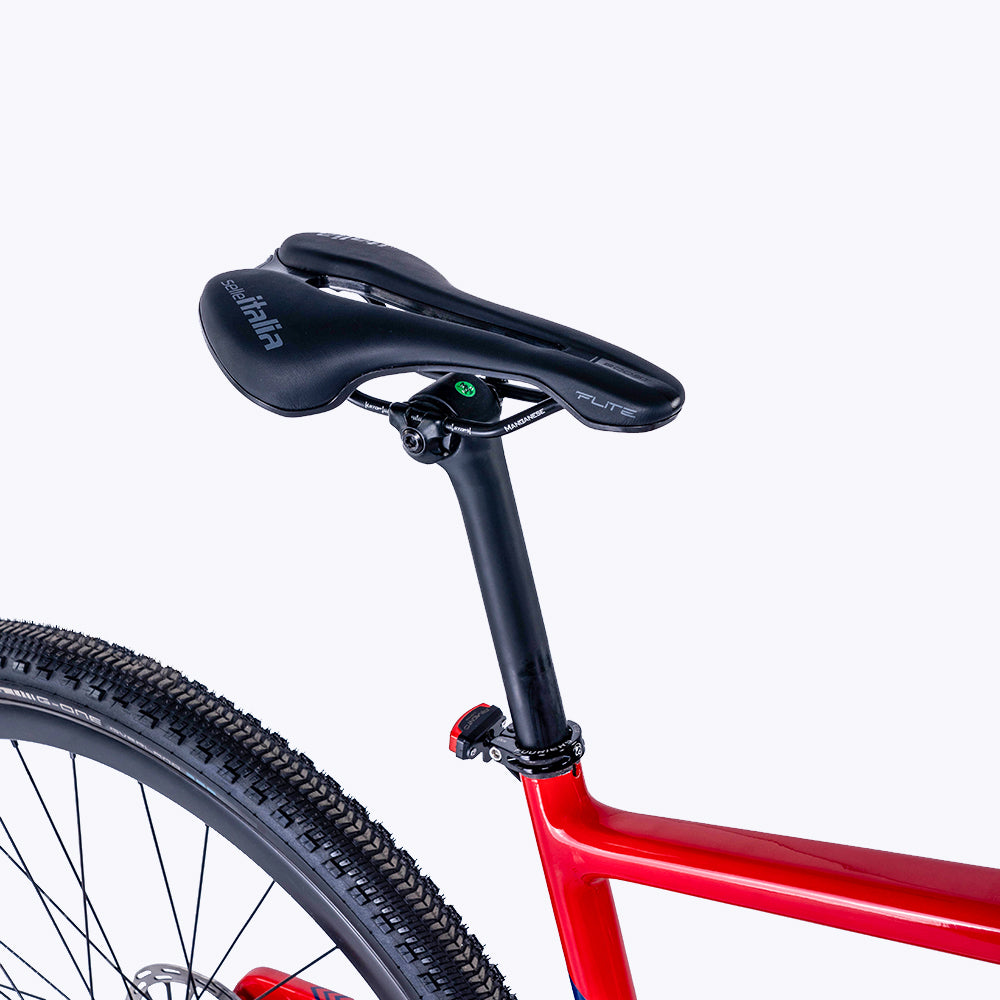

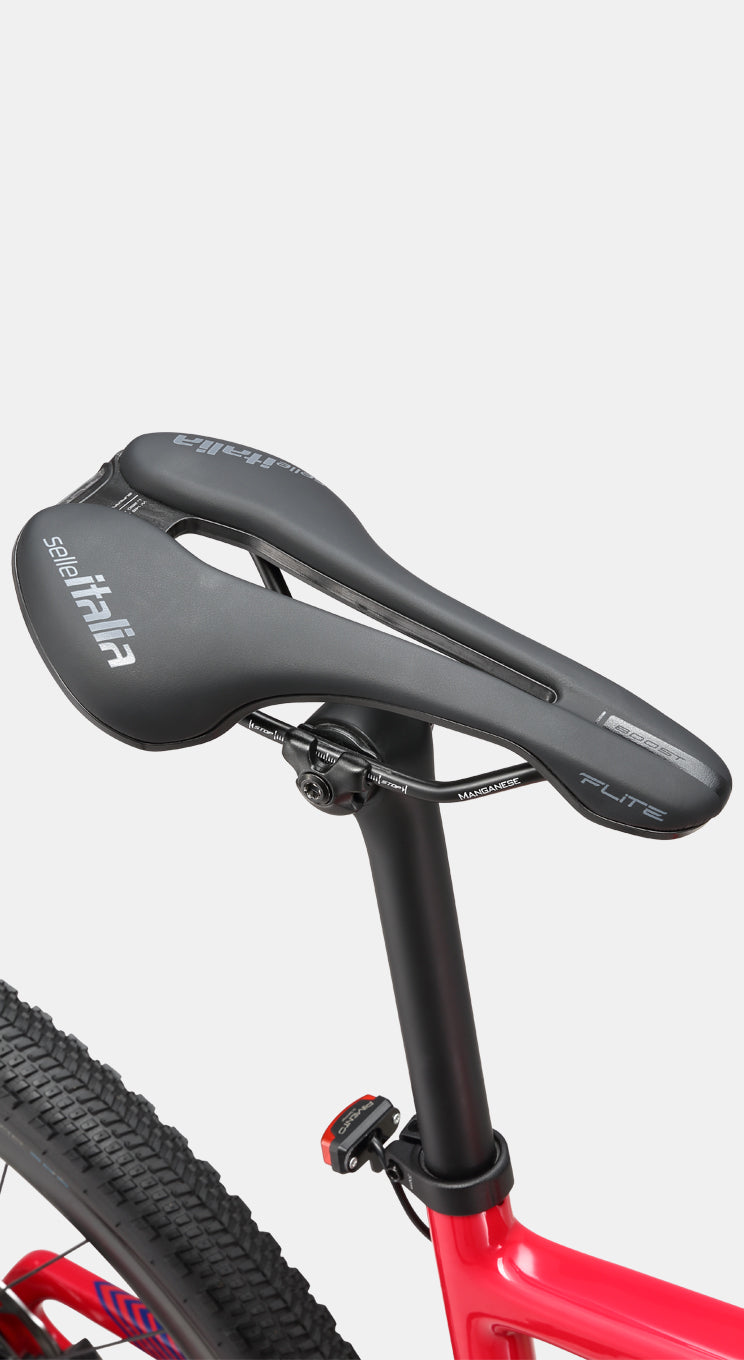

| Saddle | Selle italian；233g；5.7"x9.8"(145*248mm) | ||||
| Pedal | 4.1"x4,3"(104.7×108mm)；ZP bearing | ||||

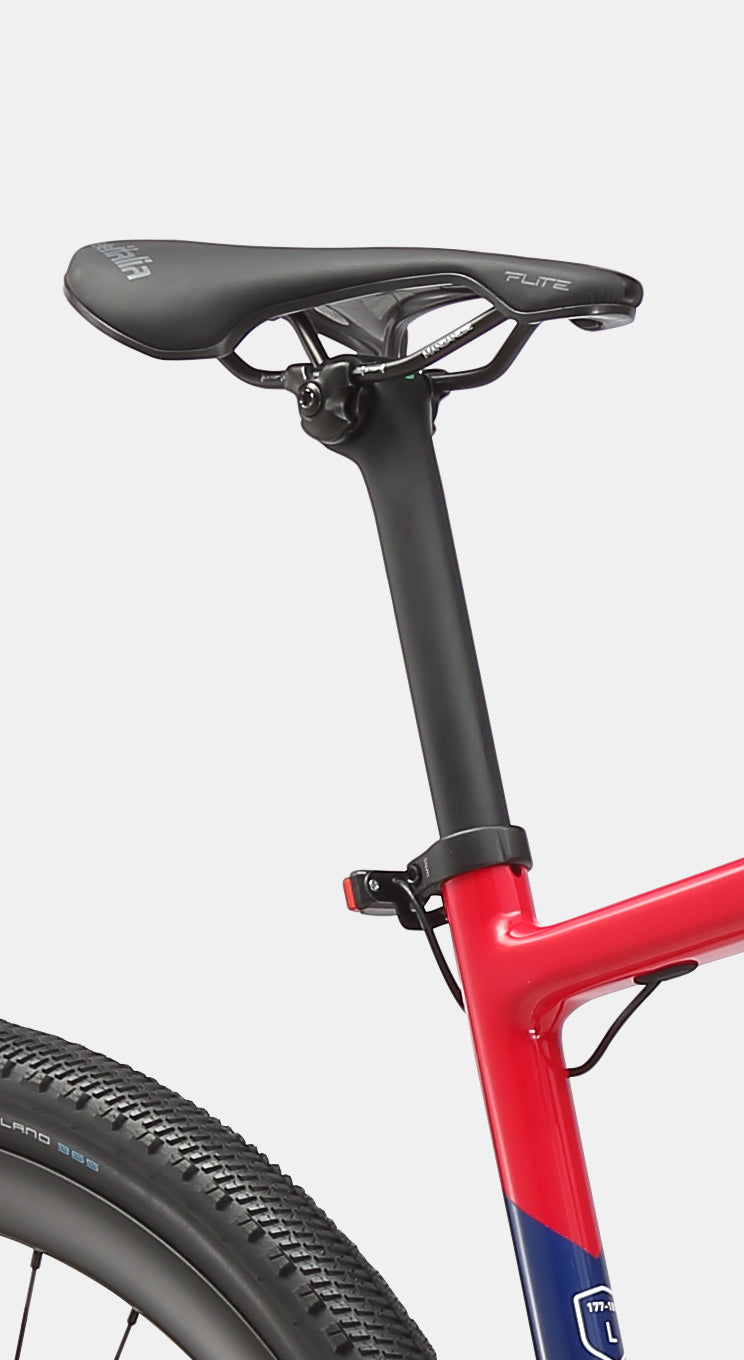

| Dropper Post | KS Rage IS;1.07"(27.2mm);2.6"(65mm)Travel | ||||
| Front Rim | WTB ST i23; 28H; 14G | ||||
| Rear Rim | WTB ST i23; 32H; 14G | ||||
| Hubs | 12*100mm；28H；14G；Ebike Reinforced | ||||
| Hubs | 12*142mm；32H；14G；Ebike Reinforced | ||||
| Spokes | 14G | ||||
| Nipples | 14G; 0.55"(14mm) | ||||
| Tubes | KENDA 700X50C，FV48mm | ||||

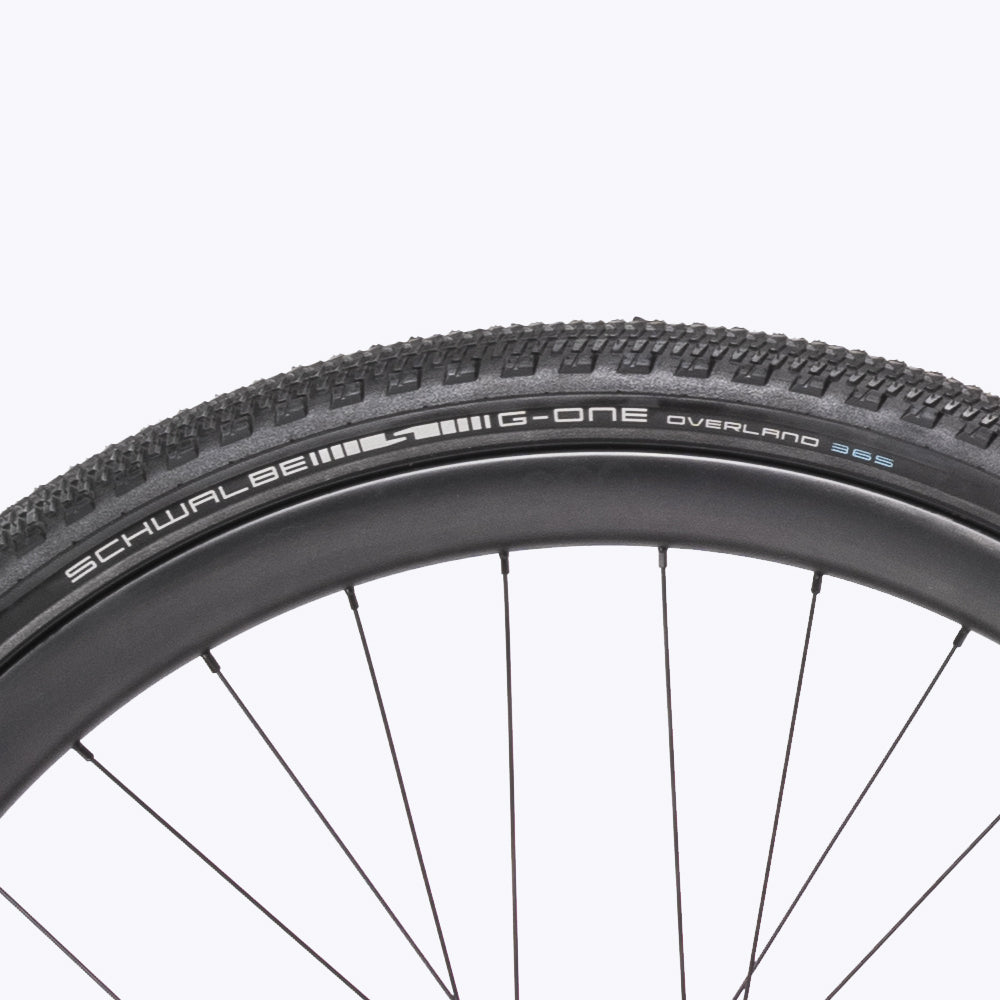

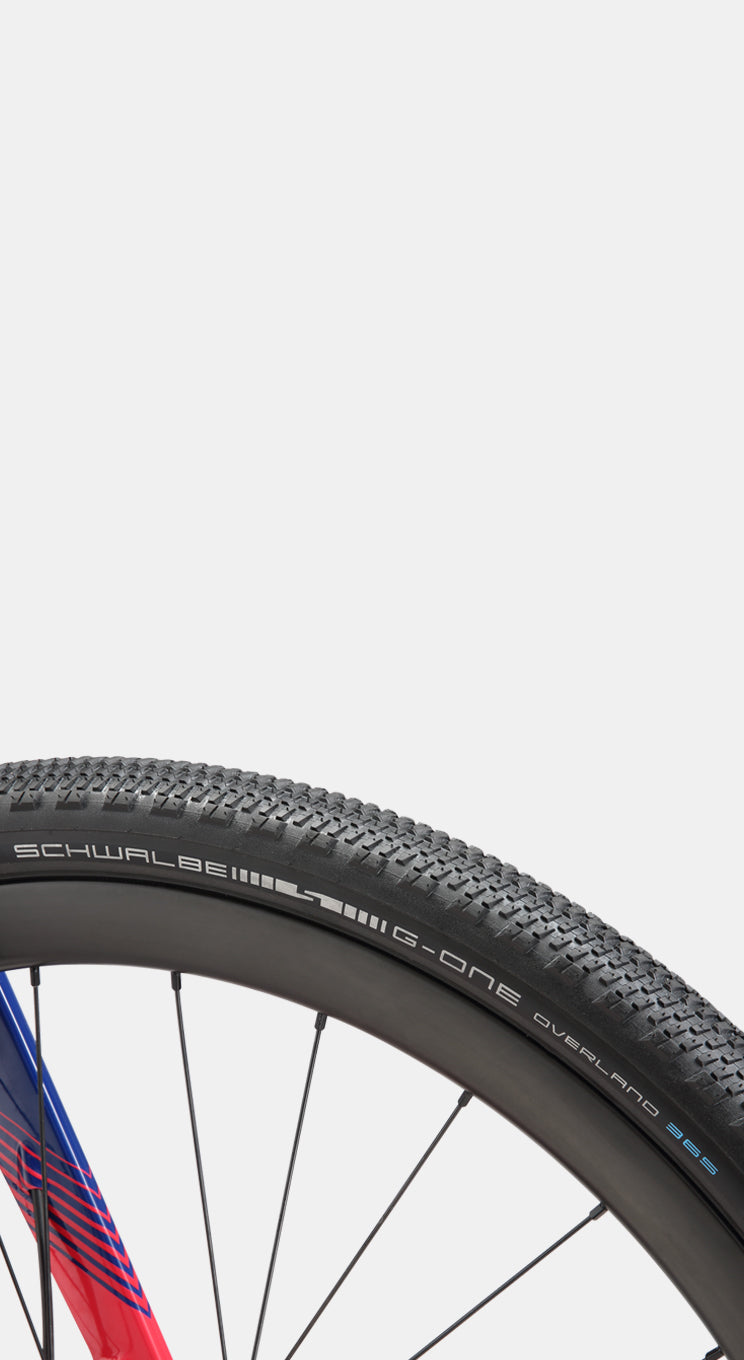

| Tires | Schwalbe G-One OVERLAND 365；700*50C(27.5x2.0"approx) | ||||
Frame: 5 years
Front Fork: 2 years
Motor: 12 months
Battery: 18 months or 20,000 miles (whichever comes first)
Display: 12 months
For more components and details, please refer to our warranty card.
