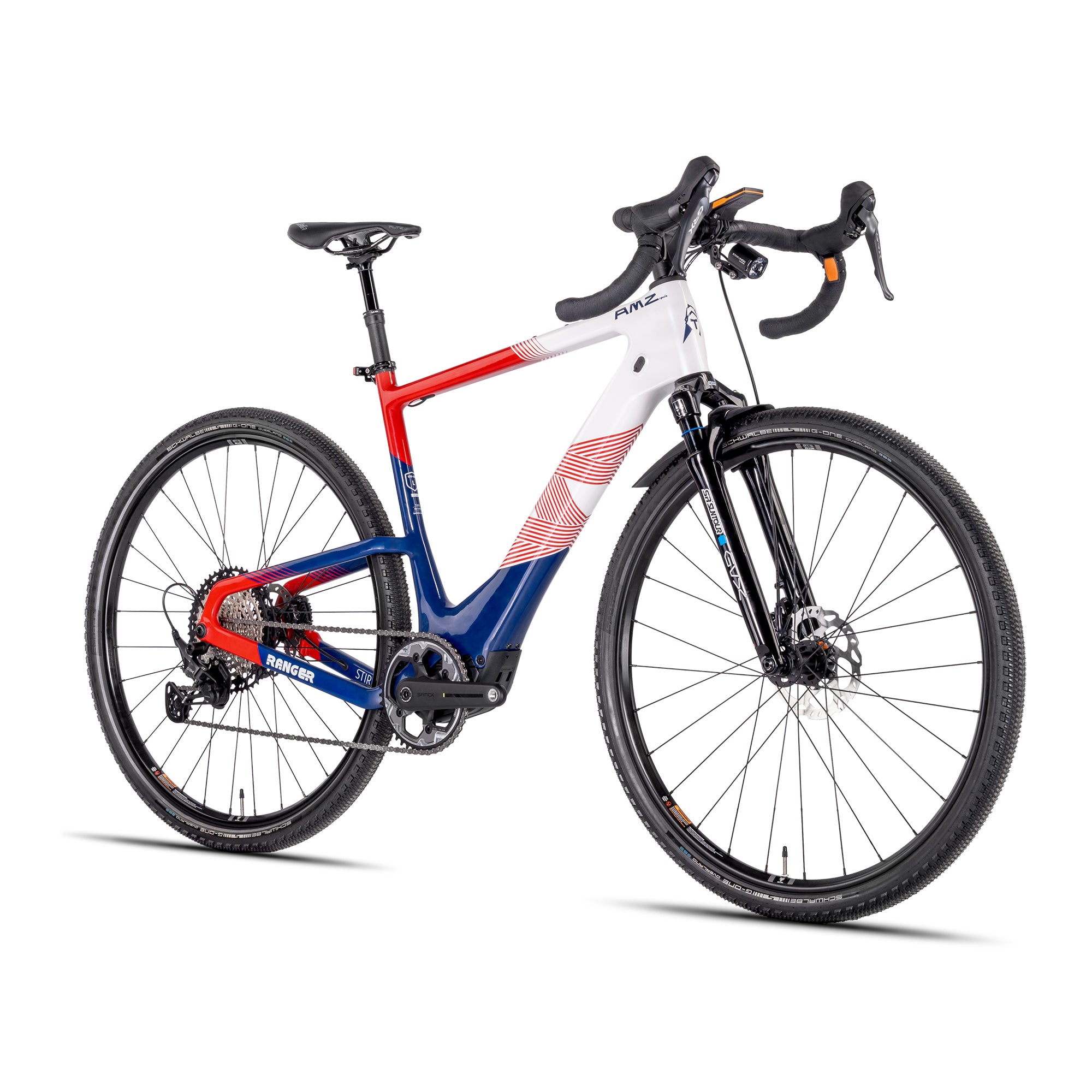

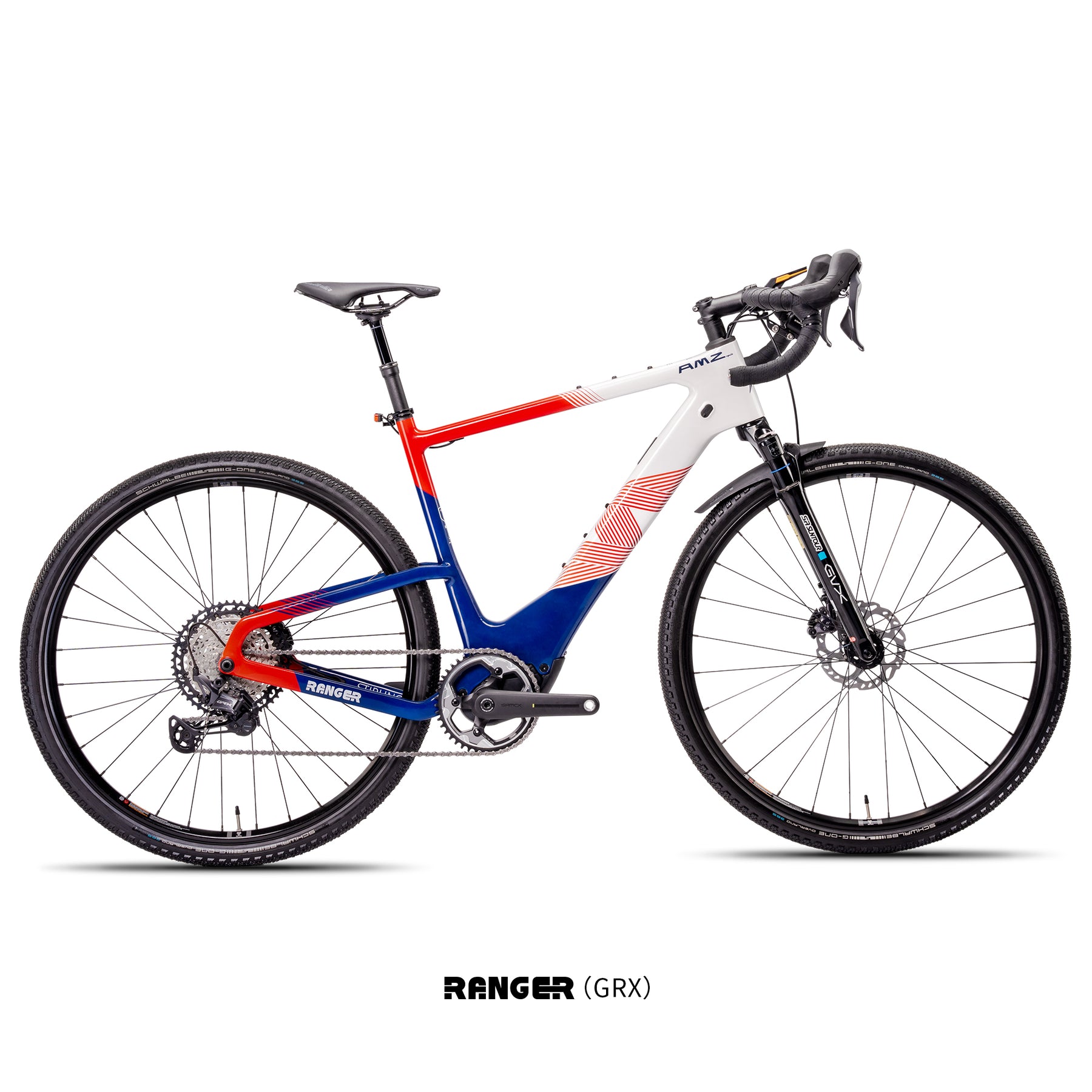

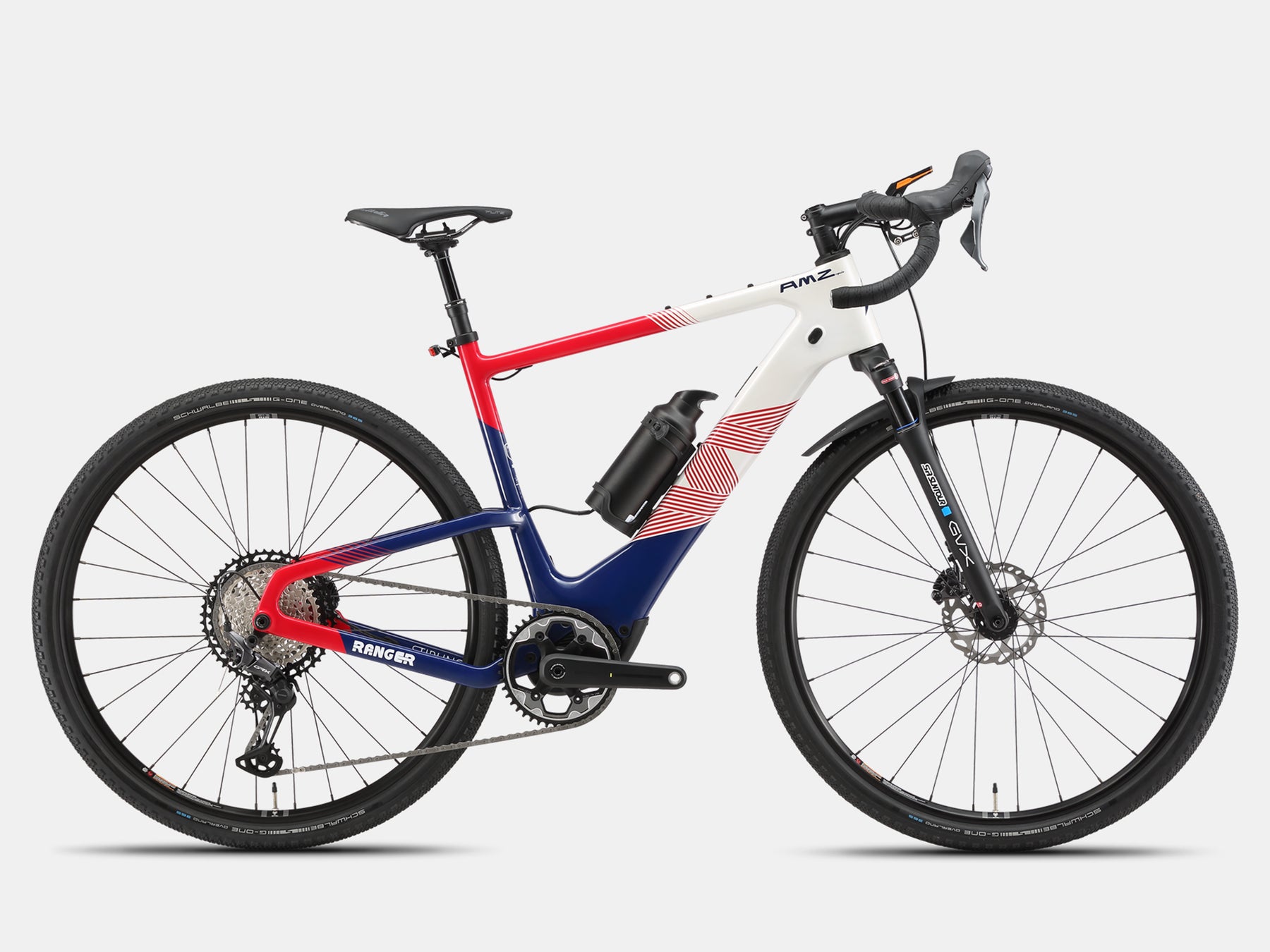

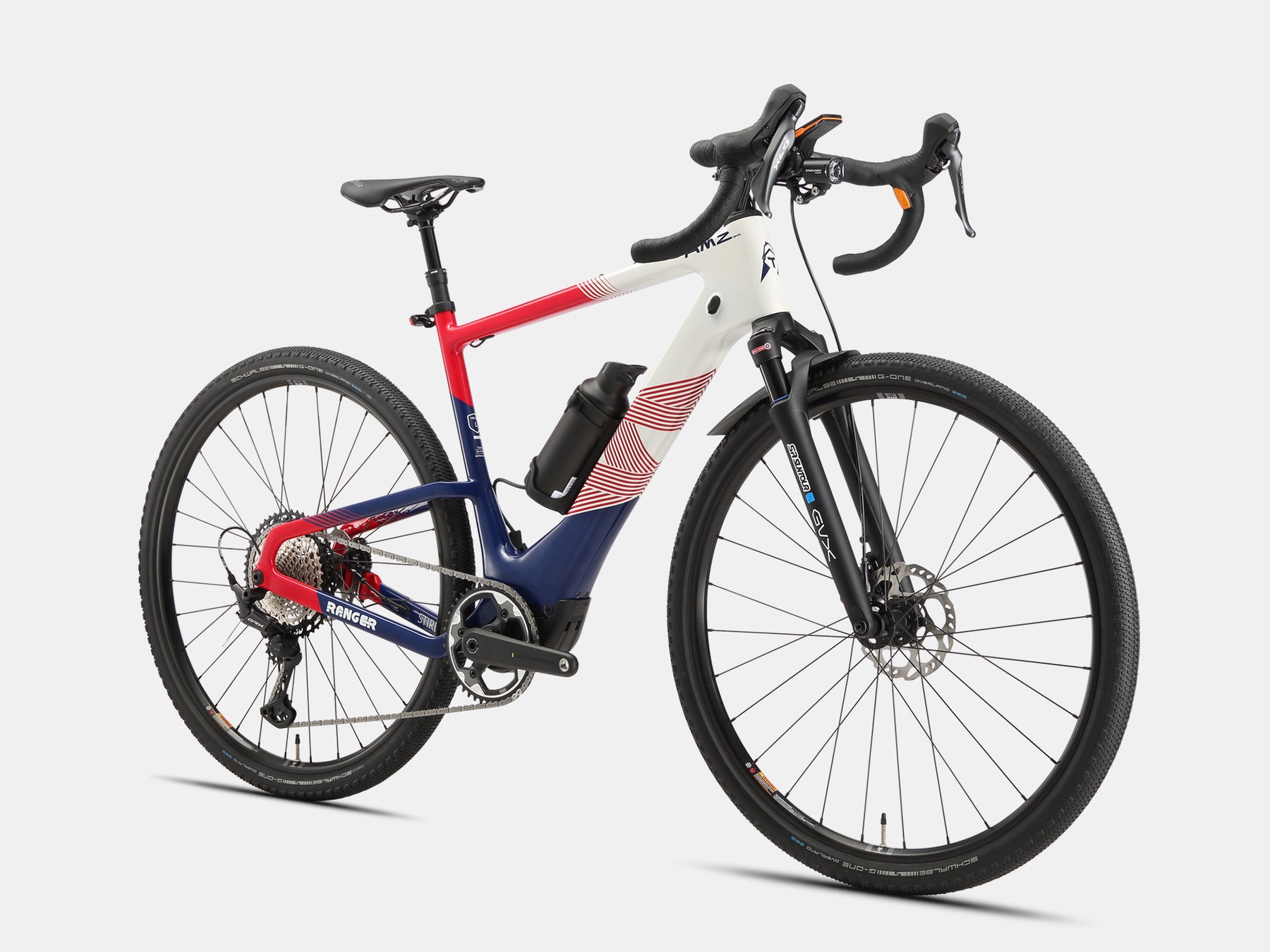

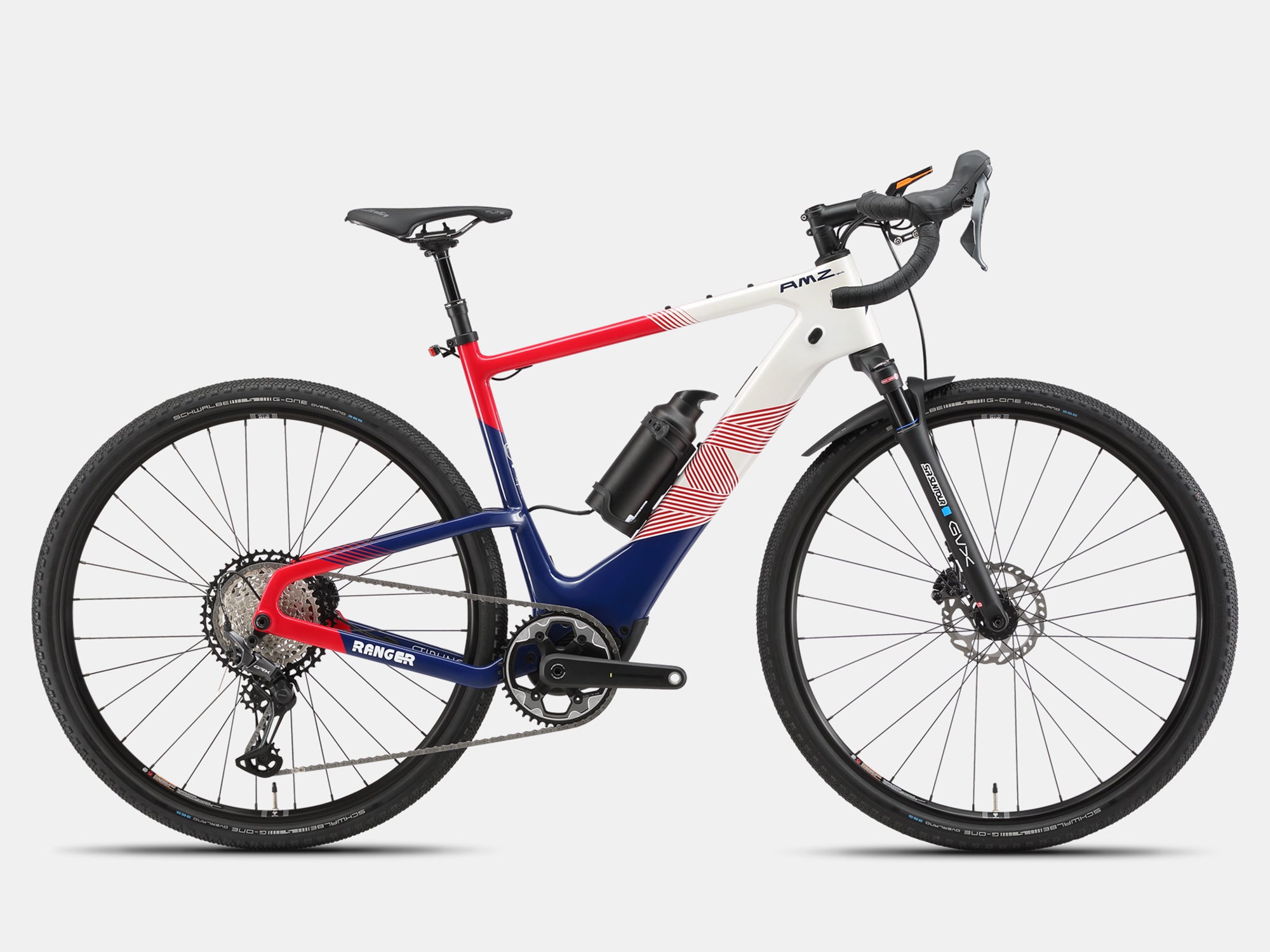

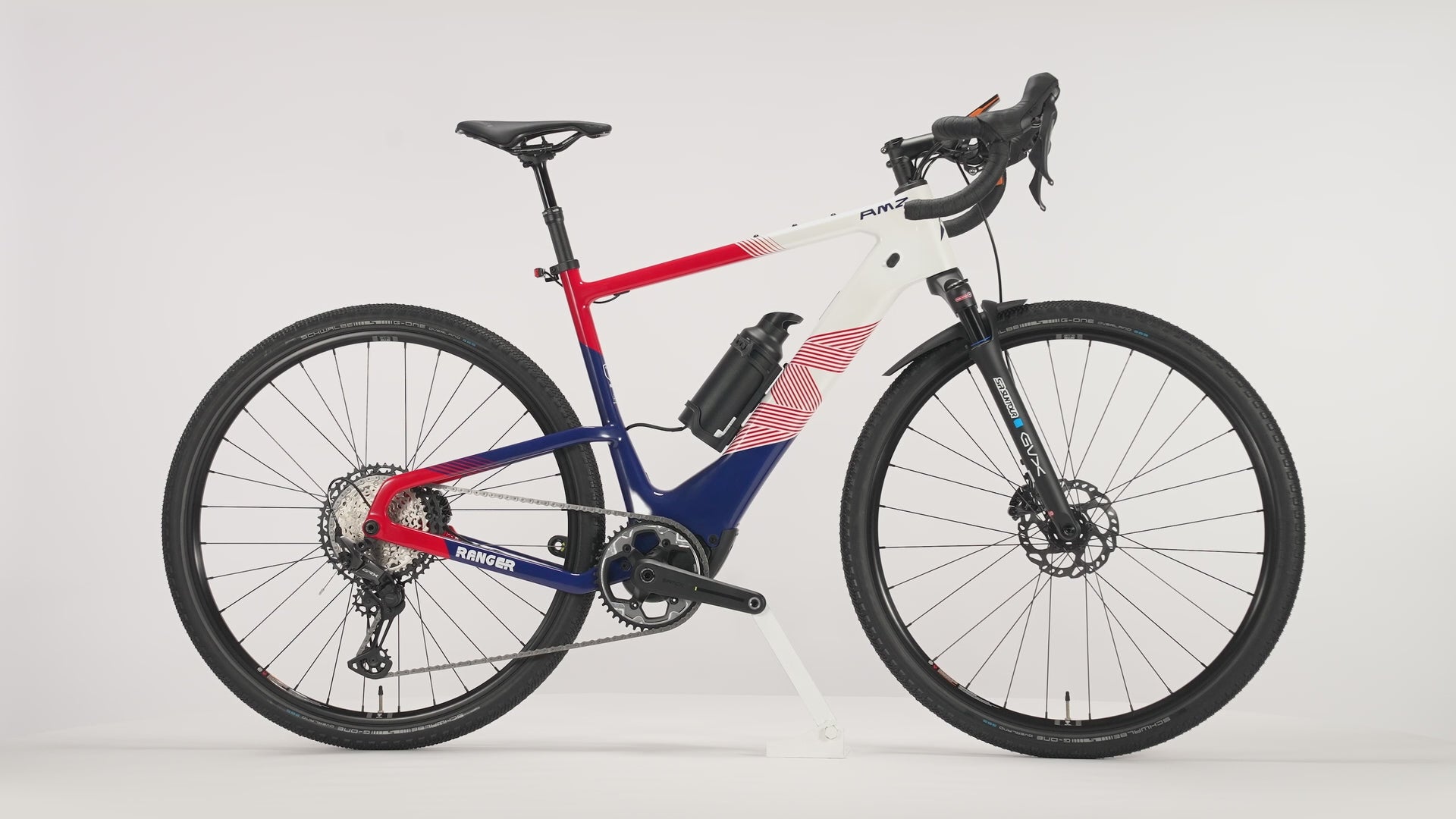

Name: Ranger GRX Electric Gravel Bike
Brand: AMZcycle
SKU: TS2501213
Price: 4499.0 USD
Availability: OutOfStock

Ranger GRX Electric Gravel Bike - AMZcycleFlag Red

Top Speed

20MPH

MOTOR POWER

350W(peak)

RANGE

100 Miles (Dual Battery)

Weight

37 lbs(L size)

Stability, Endurance and High-performance

$5,499.00 $4,499.00

Top Speed

20MPH

MOTOR POWER

350W(peak)

RANGE

100 Miles (Dual Battery)

Weight

37 lbs(L size)

Class 1
Carbon Fiber Frame
350W(peak) Motor
75N·m Torque
378Wh + 252Wh Dual Battery
6-8H charging time

Colour : Flag Red

Flag Red

14 Days Return
5-year warranty
Free & Fast Shipping

Performance Table

E-bike Class	Class 1
Usage Scenario	Long-distance Road Riding
Applicable height	65.7-76.8 inches
Weight	37.3 lbs
Voltage	36V
Charging Time	6–8 hours
Maximum Load	265 lbs
Battery Capacity	378 Wh + 252 Wh (Optional) → Total: 630 Wh
Motor Power	250W（peak：350W）
Max Pedelec Range	50–62 miles + 31–37 miles → Total up to ~99 miles
Max Pedelec Speed	20 mph

Specification Table

Frame Set	Full Carbon Fiber Frame; 700×50C; 142×12mm Axle; UDH; FICR; Dual Battery System; Flat Mount Brake
Headset	FICR; 51.8×8.7mm–51.8×6.8mm Bearing
Fork	SUNTOUR GVX32; Travel: 50mm (2.0"); 700C; 12×100mm Axle; Air Spring
Motor	BaFang M82036; 250W; 75N·m
Battery	Samsung 18650 Cell; 36V 10.5Ah; 378Wh; UL2271; DC2.1; IPX5
Secondary Battery	Samsung 18650 Cell; 36V 7Ah; 252Wh; UL2271; DC2.1; IPX5
Controller	BaFang M820; 36V

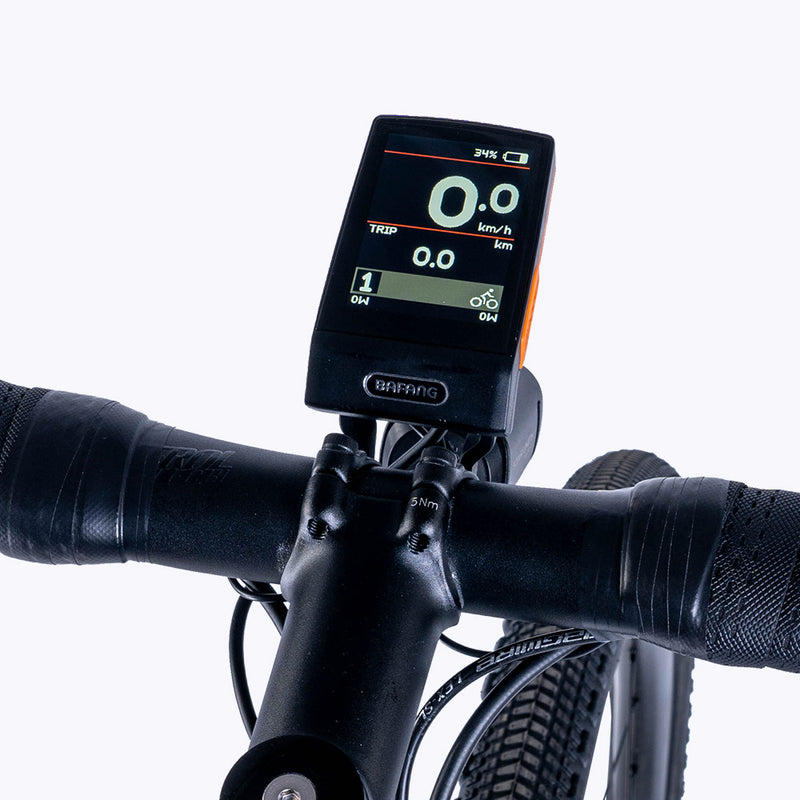

Display	BaFang; 2.4 inch

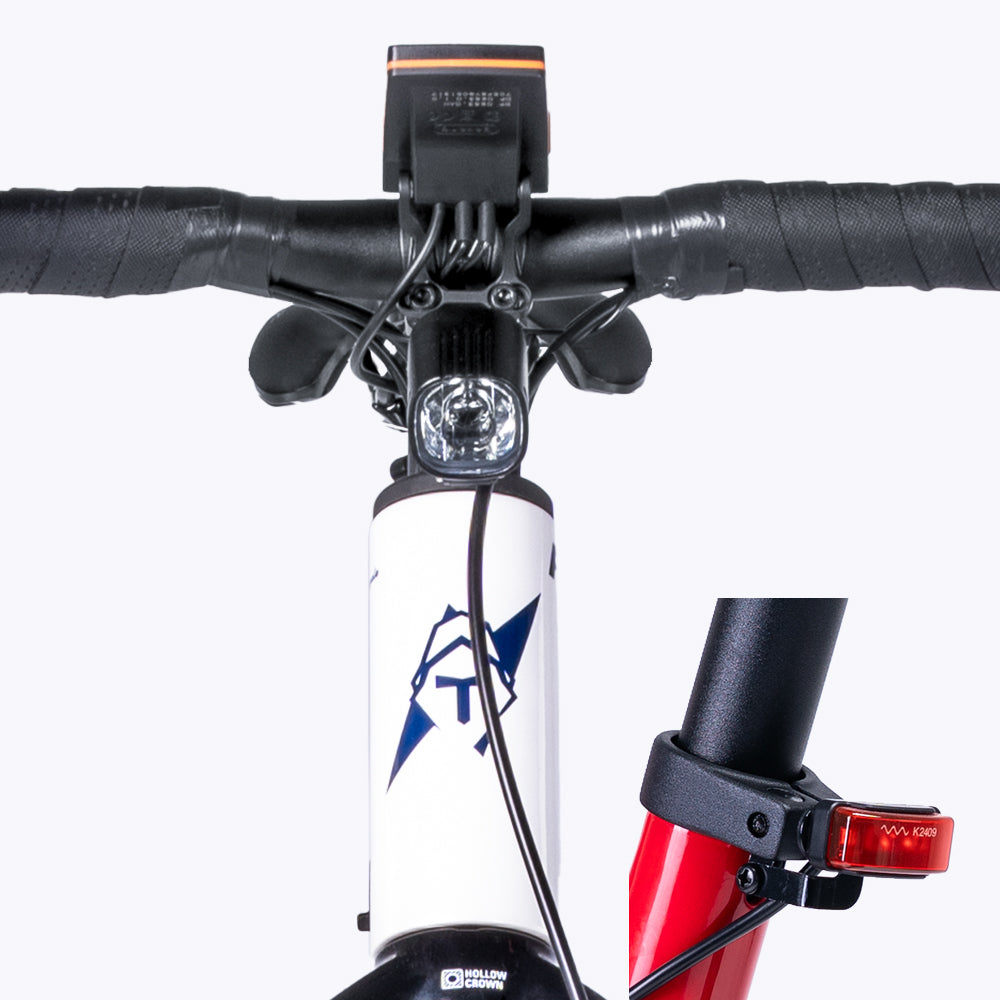

Headlight	LED; 12V 0.3A (3.5W)
Taillight	LED; 12V 0.025A (0.3W)
Speed Sensor	BaFang SR S02
Dual Control Lever	NA

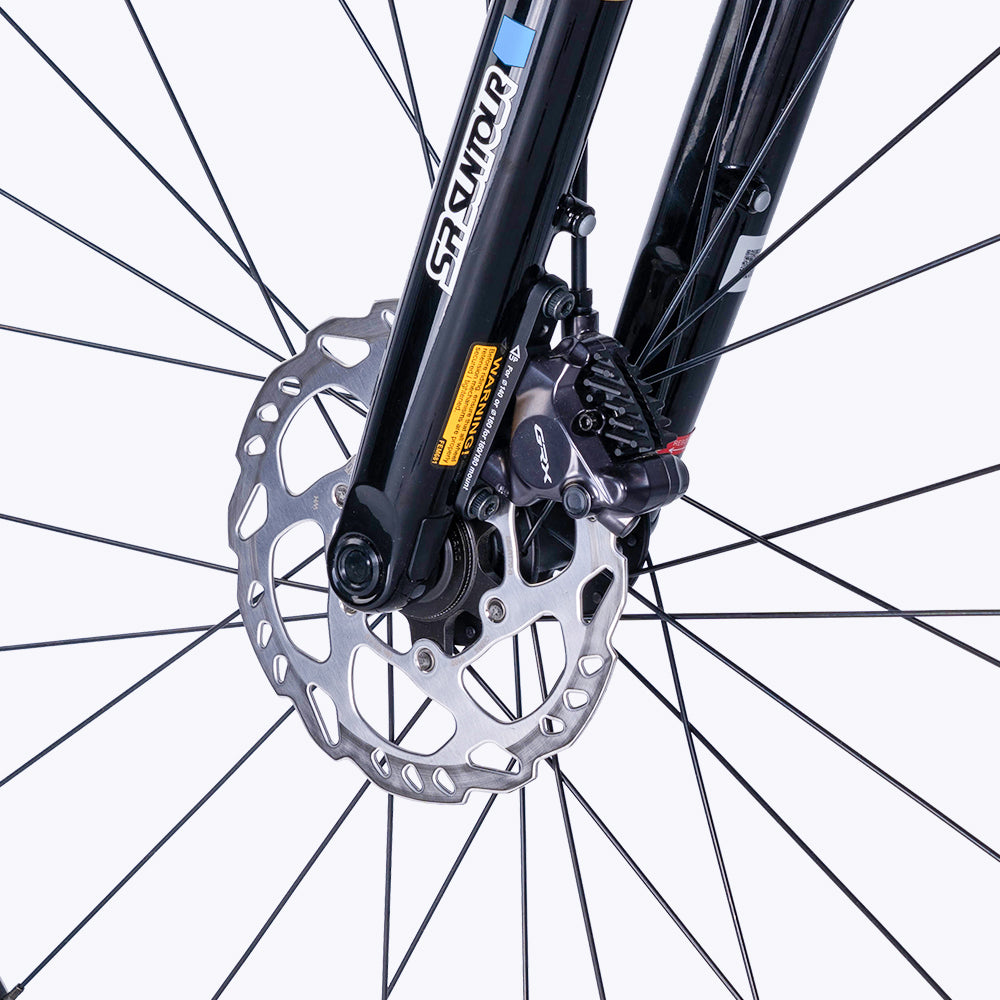

Front Brake	Shimano RX820; 2 Piston; FM
Rear Brake	Shimano RX820; 2 Piston; FM
Front Disc	Shimano SM-RT70; 160mm (6.3"); 1.8mm; Centerlock
Rear Disc	Shimano SM-RT70; 160mm (6.3"); 1.8mm; Centerlock
Shifter	Shimano RX820; 1×12s; HD; Drop Post Controller

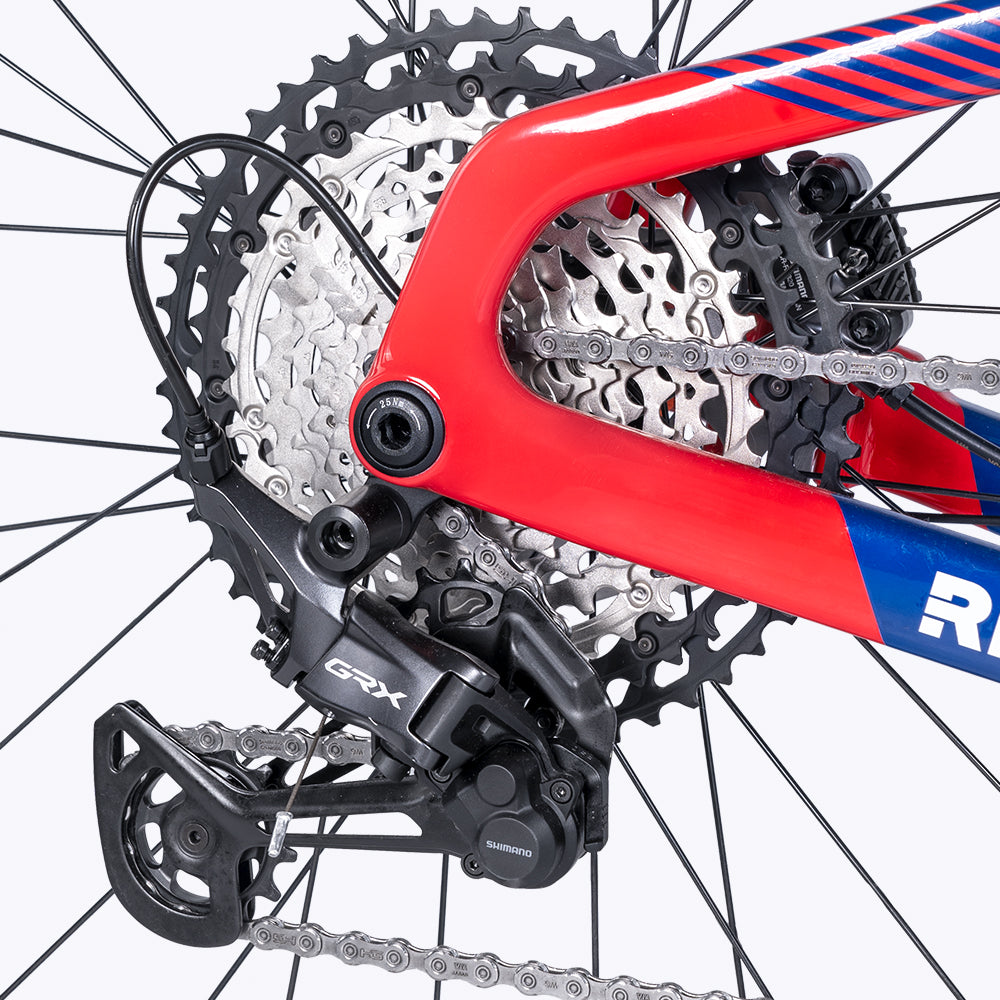

Rear Derailleur	Shimano RX822; 1×12s
Chainring	BaFang G532; 44T; CL49
Crankarm	Samox; 175mm (6.9"); Carbon Fiber Crankarm
Chain	Shimano M6100; 12s
Cassette	Shimano M8100; 12s; 10–51T

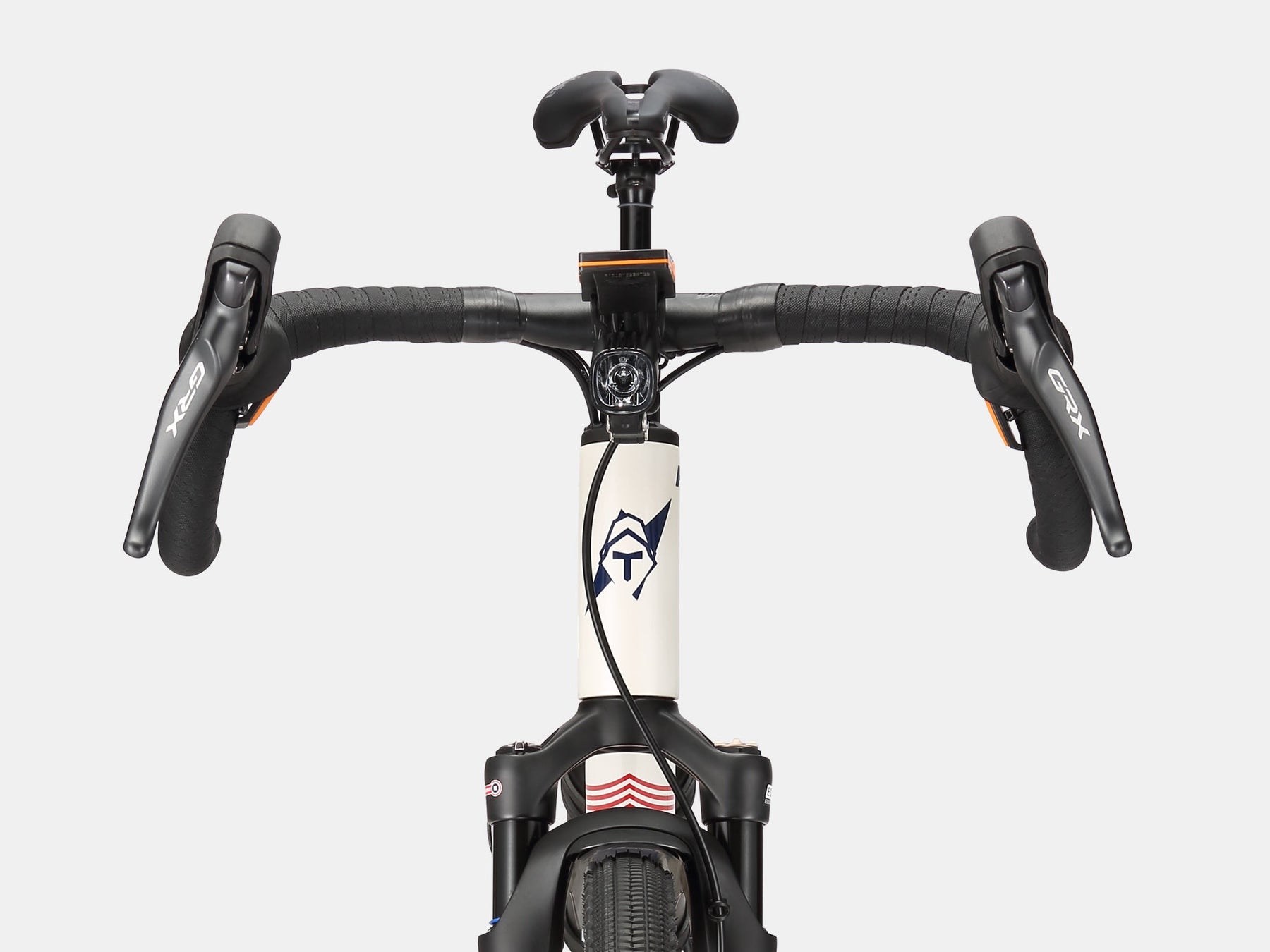

Handlebar	Controltech; AL6061; Width: 420–484mm (16.5–19.1"); Sidesweep: 16°; Reach (W1): 464–504mm (18.3–19.8")
Stem	AL6061; Extension: 80mm (3.1"); Angle: -7°; Clamp: 31.8mm; Steerer: 28.6mm; Height: 40mm (1.6")
Saddle	Selle Italian FLITE; 233g; 145×248mm (5.7×9.8")
Pedal	104.7×108mm (4.1×4.3"); ZP Bearing
Dropper Post	KS Rage IS; 27.2mm; 65mm Travel (2.6")
Dropper Post Controller	ST-R610
Rims	WTB ST i23; 28H; 14G (Front); WTB ST i23; 32H; 14G (Rear)
Front Hubs	12×100mm; 28H; 14G; E-bike Reinforced
Rear Hubs	12×142mm; 32H; 14G; E-bike Reinforced
Spokes	14G
Nipples	14G; 14mm
Tubes	Kenda 700×50C; FV48mm
Tires	Schwalbe G-One Overland 365; 700×50C (29×2.0")

Frame: 5 years
Front Fork: 2 years
Motor: 12 months
Battery: 18 months or 20,000 miles (whichever comes first)
Display: 12 months
For more components and details, please refer to our warranty card.

Packing List:AMZcycle Ranger GRX Electric Bike, Assembly Toolkit (to help you assemble the bike), Battery & Charger, Headlight & Taillight,Display, Cable Binders, Left & Right Pedals.

For more details, please refer to the included user manual.

▼Ranger_GRX_Packing_List

▼Ranger-GRX-User-Manual

▼Ranger-GRX-Quick-Start-Guid

▼TS-WarrantyCard

[{"id":46621569188014,"title":"Flag Red \/ S","option1":"Flag Red","option2":"S","option3":null,"sku":"TS2501211","requires_shipping":true,"taxable":false,"featured_image":{"id":41305602982062,"product_id":8764991045806,"position":1,"created_at":"2025-09-20T10:46:17-05:00","updated_at":"2025-10-20T04:21:18-05:00","alt":"Ranger GRX Electric Gravel Bike - AMZcycleFlag Red","width":2000,"height":1500,"src":"\/\/amzcycle.cc\/cdn\/shop\/files\/ranger-grx-electric-gravel-bike-4136233.jpg?v=1760952078","variant_ids":[46600137801902,46621569188014,46621569220782,46621569253550,46621569286318]},"available":false,"name":"Ranger GRX Electric Gravel Bike - Flag Red \/ S","public_title":"Flag Red \/ S","options":["Flag Red","S"],"price":449900,"weight":0,"compare_at_price":549900,"inventory_management":"shopify","barcode":"","featured_media":{"alt":"Ranger GRX Electric Gravel Bike - AMZcycleFlag Red","id":32083676364974,"position":1,"preview_image":{"aspect_ratio":1.333,"height":1500,"width":2000,"src":"\/\/amzcycle.cc\/cdn\/shop\/files\/ranger-grx-electric-gravel-bike-4136233.jpg?v=1760952078"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":46621569220782,"title":"Flag Red \/ M","option1":"Flag Red","option2":"M","option3":null,"sku":"TS2501212","requires_shipping":true,"taxable":false,"featured_image":{"id":41305602982062,"product_id":8764991045806,"position":1,"created_at":"2025-09-20T10:46:17-05:00","updated_at":"2025-10-20T04:21:18-05:00","alt":"Ranger GRX Electric Gravel Bike - AMZcycleFlag Red","width":2000,"height":1500,"src":"\/\/amzcycle.cc\/cdn\/shop\/files\/ranger-grx-electric-gravel-bike-4136233.jpg?v=1760952078","variant_ids":[46600137801902,46621569188014,46621569220782,46621569253550,46621569286318]},"available":false,"name":"Ranger GRX Electric Gravel Bike - Flag Red \/ M","public_title":"Flag Red \/ M","options":["Flag Red","M"],"price":449900,"weight":0,"compare_at_price":549900,"inventory_management":"shopify","barcode":"","featured_media":{"alt":"Ranger GRX Electric Gravel Bike - AMZcycleFlag Red","id":32083676364974,"position":1,"preview_image":{"aspect_ratio":1.333,"height":1500,"width":2000,"src":"\/\/amzcycle.cc\/cdn\/shop\/files\/ranger-grx-electric-gravel-bike-4136233.jpg?v=1760952078"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":46600137801902,"title":"Flag Red \/ L","option1":"Flag Red","option2":"L","option3":null,"sku":"TS2501213","requires_shipping":true,"taxable":false,"featured_image":{"id":41305602982062,"product_id":8764991045806,"position":1,"created_at":"2025-09-20T10:46:17-05:00","updated_at":"2025-10-20T04:21:18-05:00","alt":"Ranger GRX Electric Gravel Bike - AMZcycleFlag Red","width":2000,"height":1500,"src":"\/\/amzcycle.cc\/cdn\/shop\/files\/ranger-grx-electric-gravel-bike-4136233.jpg?v=1760952078","variant_ids":[46600137801902,46621569188014,46621569220782,46621569253550,46621569286318]},"available":true,"name":"Ranger GRX Electric Gravel Bike - Flag Red \/ L","public_title":"Flag Red \/ L","options":["Flag Red","L"],"price":449900,"weight":0,"compare_at_price":549900,"inventory_management":"shopify","barcode":"","featured_media":{"alt":"Ranger GRX Electric Gravel Bike - AMZcycleFlag Red","id":32083676364974,"position":1,"preview_image":{"aspect_ratio":1.333,"height":1500,"width":2000,"src":"\/\/amzcycle.cc\/cdn\/shop\/files\/ranger-grx-electric-gravel-bike-4136233.jpg?v=1760952078"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":46621569253550,"title":"Flag Red \/ XL","option1":"Flag Red","option2":"XL","option3":null,"sku":"TS2501214","requires_shipping":true,"taxable":false,"featured_image":{"id":41305602982062,"product_id":8764991045806,"position":1,"created_at":"2025-09-20T10:46:17-05:00","updated_at":"2025-10-20T04:21:18-05:00","alt":"Ranger GRX Electric Gravel Bike - AMZcycleFlag Red","width":2000,"height":1500,"src":"\/\/amzcycle.cc\/cdn\/shop\/files\/ranger-grx-electric-gravel-bike-4136233.jpg?v=1760952078","variant_ids":[46600137801902,46621569188014,46621569220782,46621569253550,46621569286318]},"available":false,"name":"Ranger GRX Electric Gravel Bike - Flag Red \/ XL","public_title":"Flag Red \/ XL","options":["Flag Red","XL"],"price":449900,"weight":0,"compare_at_price":549900,"inventory_management":"shopify","barcode":"","featured_media":{"alt":"Ranger GRX Electric Gravel Bike - AMZcycleFlag Red","id":32083676364974,"position":1,"preview_image":{"aspect_ratio":1.333,"height":1500,"width":2000,"src":"\/\/amzcycle.cc\/cdn\/shop\/files\/ranger-grx-electric-gravel-bike-4136233.jpg?v=1760952078"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":46621569286318,"title":"Flag Red \/ 2XL","option1":"Flag Red","option2":"2XL","option3":null,"sku":"TS2501215","requires_shipping":true,"taxable":false,"featured_image":{"id":41305602982062,"product_id":8764991045806,"position":1,"created_at":"2025-09-20T10:46:17-05:00","updated_at":"2025-10-20T04:21:18-05:00","alt":"Ranger GRX Electric Gravel Bike - AMZcycleFlag Red","width":2000,"height":1500,"src":"\/\/amzcycle.cc\/cdn\/shop\/files\/ranger-grx-electric-gravel-bike-4136233.jpg?v=1760952078","variant_ids":[46600137801902,46621569188014,46621569220782,46621569253550,46621569286318]},"available":false,"name":"Ranger GRX Electric Gravel Bike - Flag Red \/ 2XL","public_title":"Flag Red \/ 2XL","options":["Flag Red","2XL"],"price":449900,"weight":0,"compare_at_price":549900,"inventory_management":"shopify","barcode":"","featured_media":{"alt":"Ranger GRX Electric Gravel Bike - AMZcycleFlag Red","id":32083676364974,"position":1,"preview_image":{"aspect_ratio":1.333,"height":1500,"width":2000,"src":"\/\/amzcycle.cc\/cdn\/shop\/files\/ranger-grx-electric-gravel-bike-4136233.jpg?v=1760952078"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

{"id":46600137801902,"title":"Flag Red \/ L","option1":"Flag Red","option2":"L","option3":null,"sku":"TS2501213","requires_shipping":true,"taxable":false,"featured_image":{"id":41305602982062,"product_id":8764991045806,"position":1,"created_at":"2025-09-20T10:46:17-05:00","updated_at":"2025-10-20T04:21:18-05:00","alt":"Ranger GRX Electric Gravel Bike - AMZcycleFlag Red","width":2000,"height":1500,"src":"\/\/amzcycle.cc\/cdn\/shop\/files\/ranger-grx-electric-gravel-bike-4136233.jpg?v=1760952078","variant_ids":[46600137801902,46621569188014,46621569220782,46621569253550,46621569286318]},"available":true,"name":"Ranger GRX Electric Gravel Bike - Flag Red \/ L","public_title":"Flag Red \/ L","options":["Flag Red","L"],"price":449900,"weight":0,"compare_at_price":549900,"inventory_management":"shopify","barcode":"","featured_media":{"alt":"Ranger GRX Electric Gravel Bike - AMZcycleFlag Red","id":32083676364974,"position":1,"preview_image":{"aspect_ratio":1.333,"height":1500,"width":2000,"src":"\/\/amzcycle.cc\/cdn\/shop\/files\/ranger-grx-electric-gravel-bike-4136233.jpg?v=1760952078"}},"requires_selling_plan":false,"selling_plan_allocations":[]}

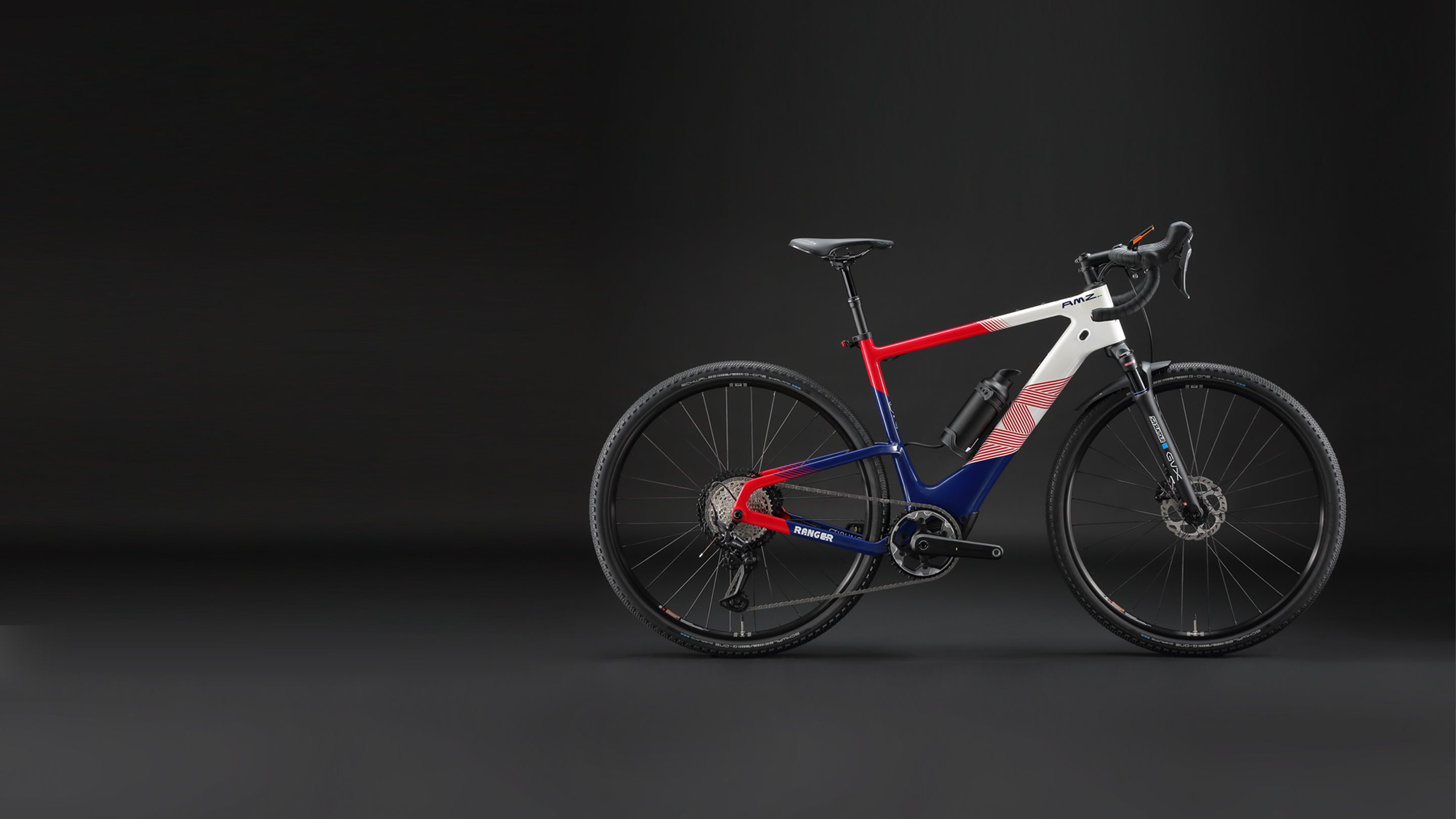

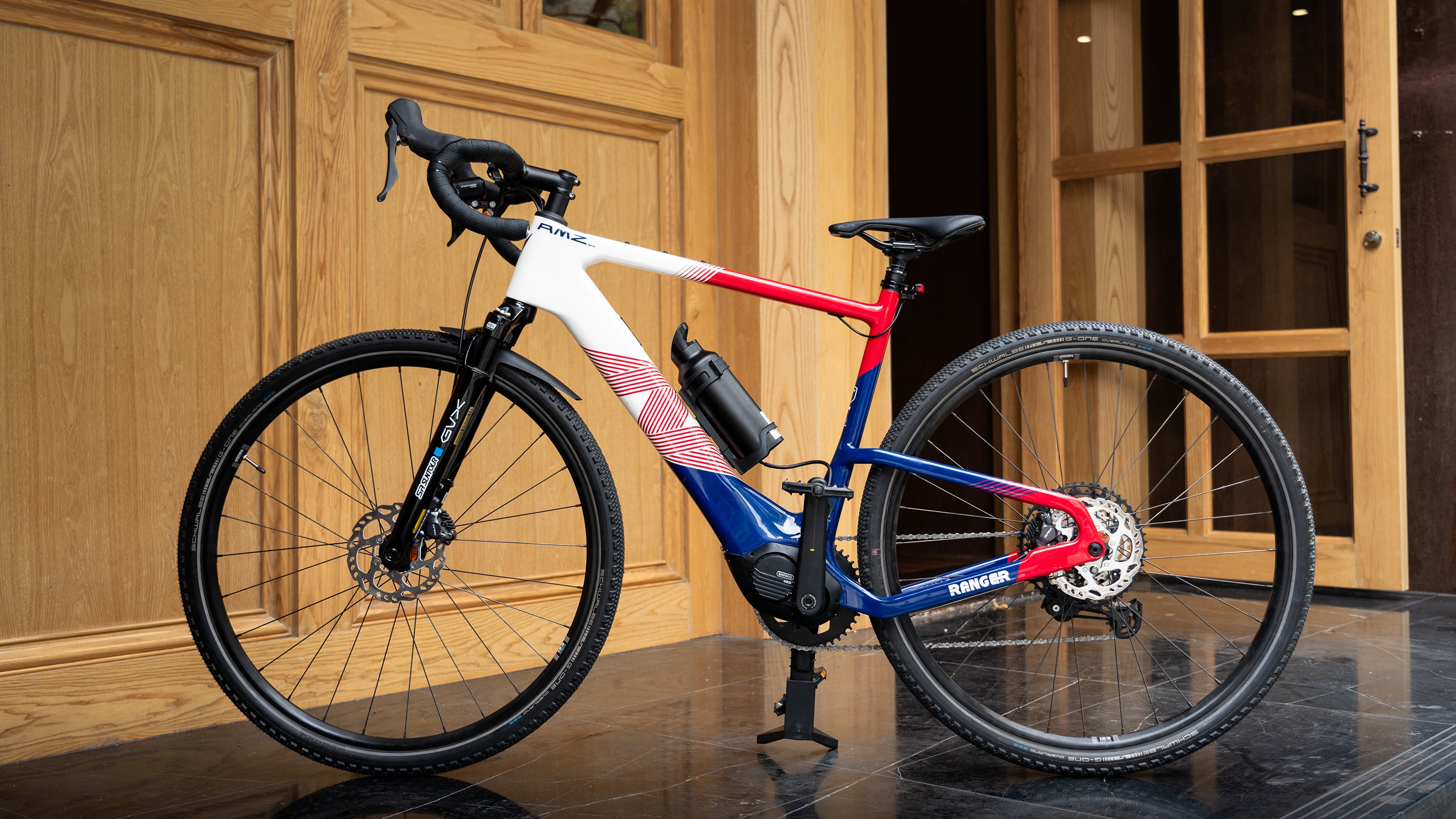

Ranger GRX, Adventure E-gravel Bike

Push beyond limits with confidence, comfort, and control.

Ranger GRX, Built for Heavy-Duty Gravel

Ranger GRX delivers stability and strength across mud, rocky climbs, and forest trails, empowering you to ride farther and conquer the wild with confidence.

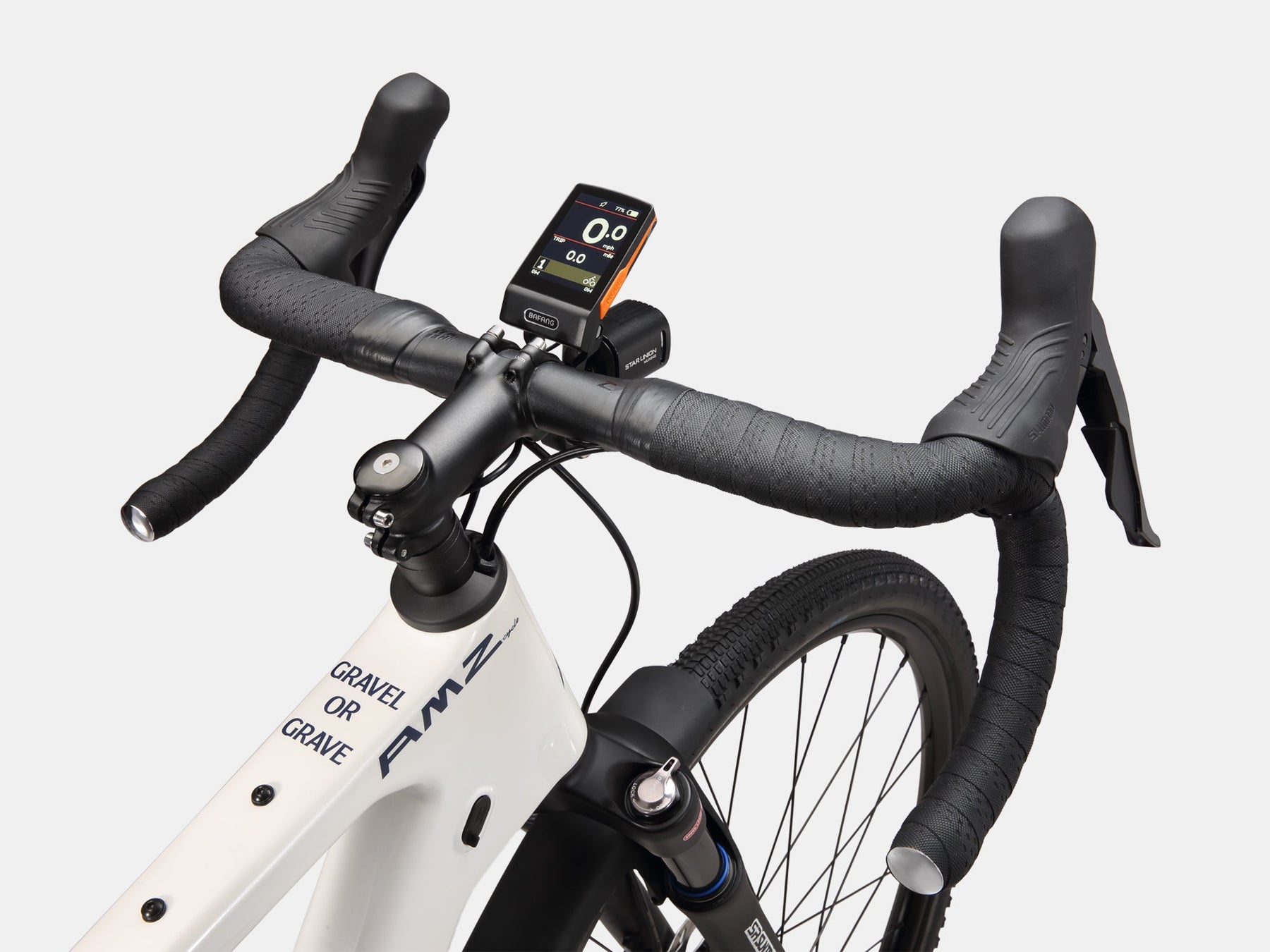

Smart Power System

Seamlessly integrated motor, dual-battery, and smart display — delivering efficient power, extended range, and intuitive control for every ride.

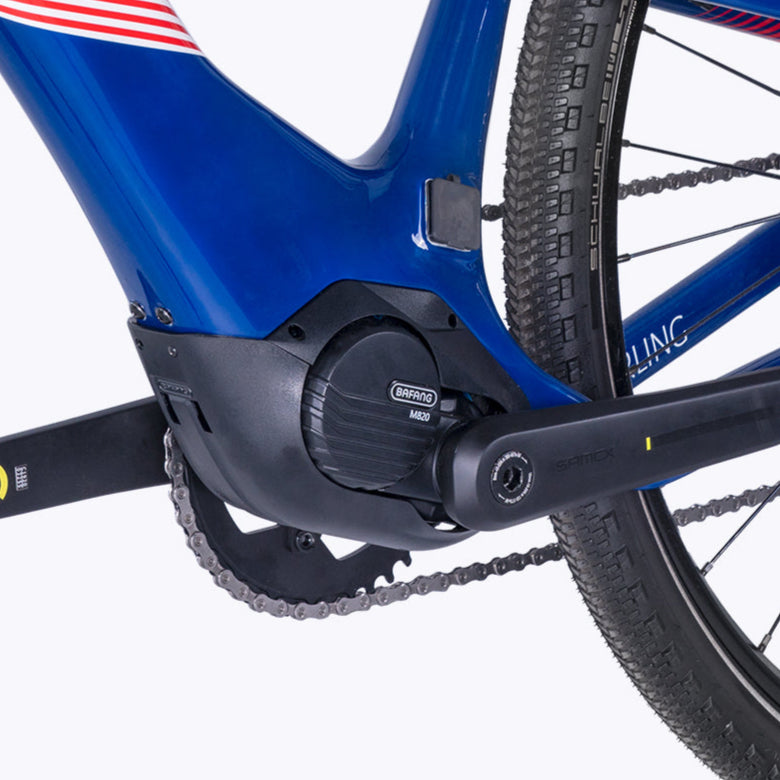

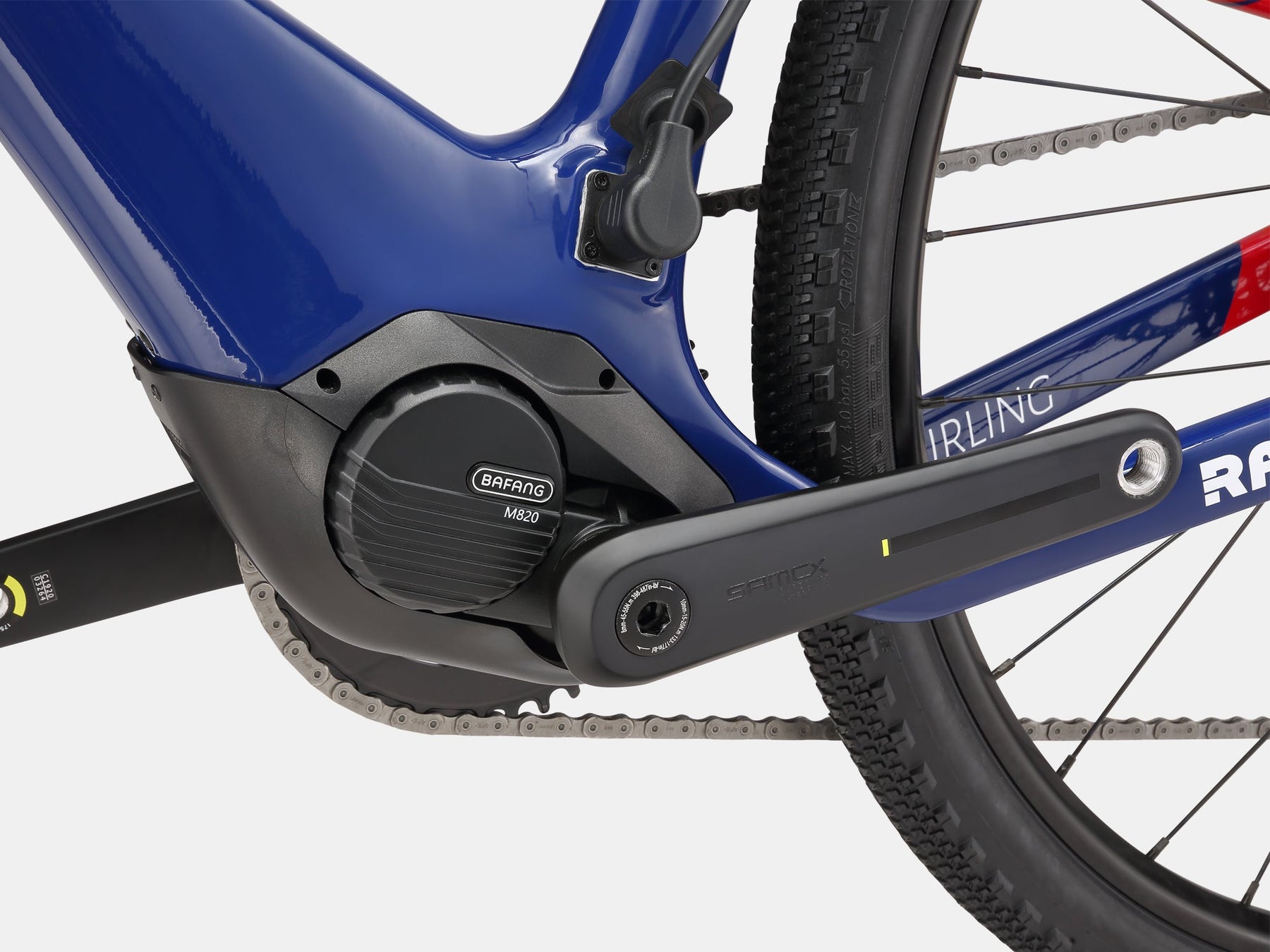

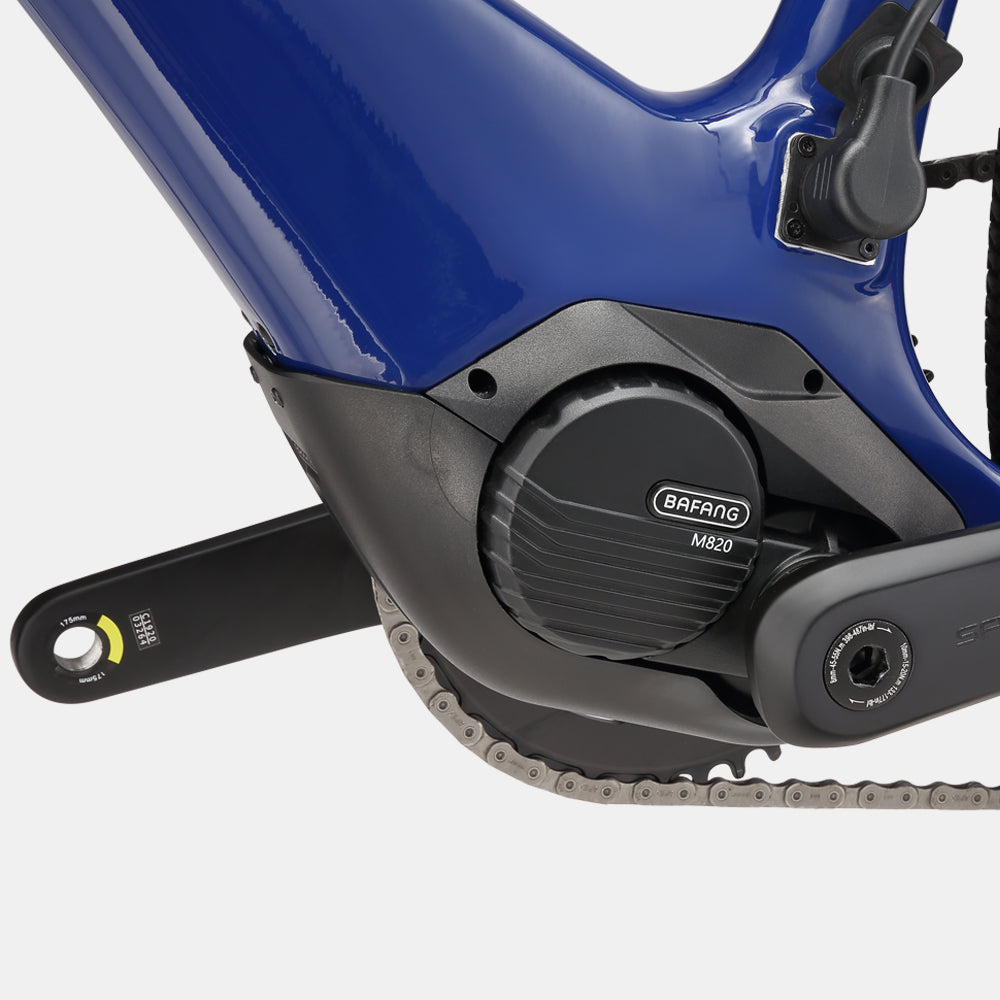

Compact Power, Heavy-Duty Performance

BAFANG M820 mid-drive motor delivers 250W output and 75 N·m of torque with smooth, natural assistance, giving you precise control on every climb and trail.

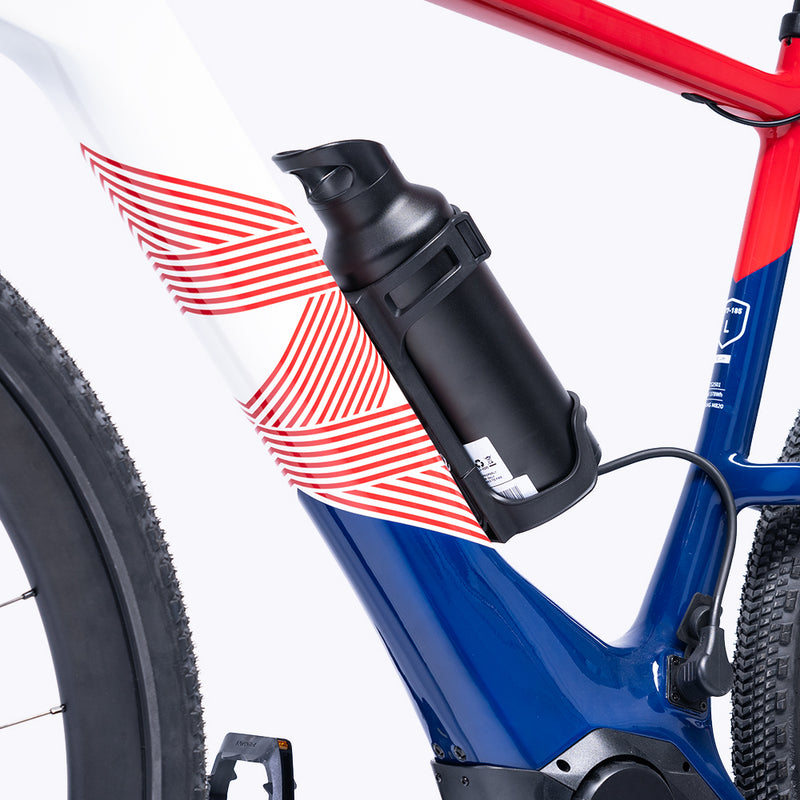

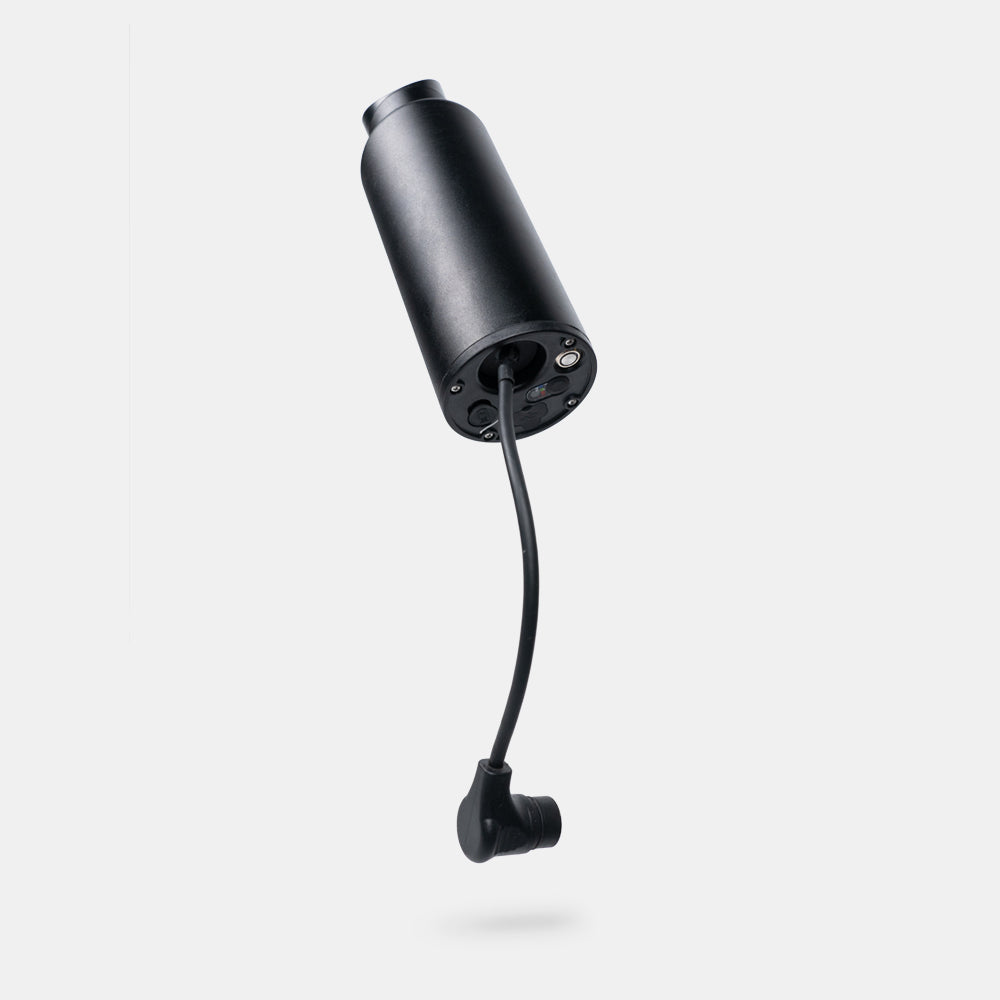

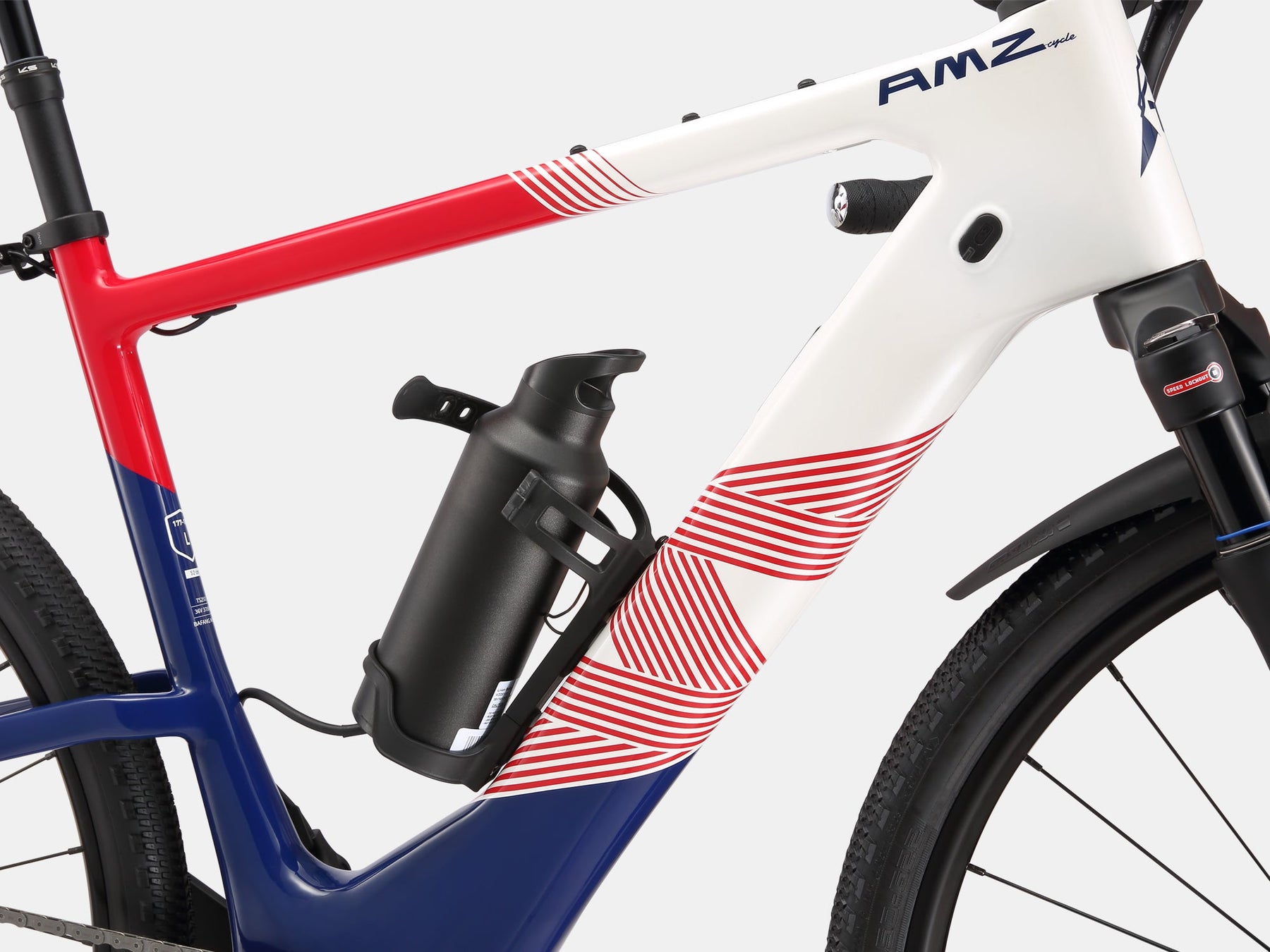

Dual-Battery Endurance, Ride Without Limits

378Wh + 252Wh SAMSUNG batteries helps to extend your adventure, you can ride your way with confidence and freedom.

Unparalleled Usable
Power and Torque

With 27% more peak power and
SuperNatural delivery, the S-Works Levo 4
redefines rideability and performance.

Unparalleled Usable
Power and Torque

With 27% more peak power and
SuperNatural delivery, the S-Works Levo 4
redefines rideability and performance.

Unparalleled Usable
Power and Torque

With 27% more peak power and
SuperNatural delivery, the S-Works Levo 4
redefines rideability and performance.

Unparalleled Usable
Power and Torque

With 27% more peak power and
SuperNatural delivery, the S-Works Levo 4
redefines rideability and performance.

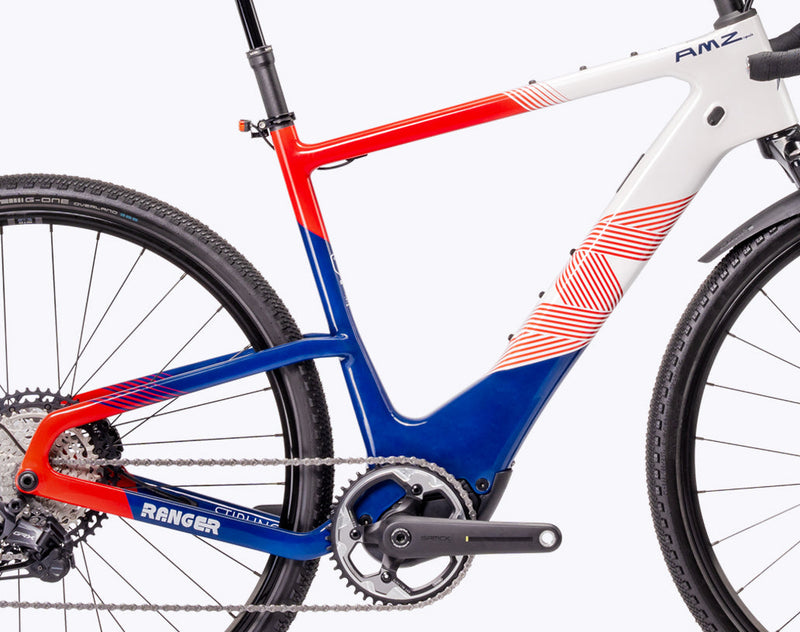

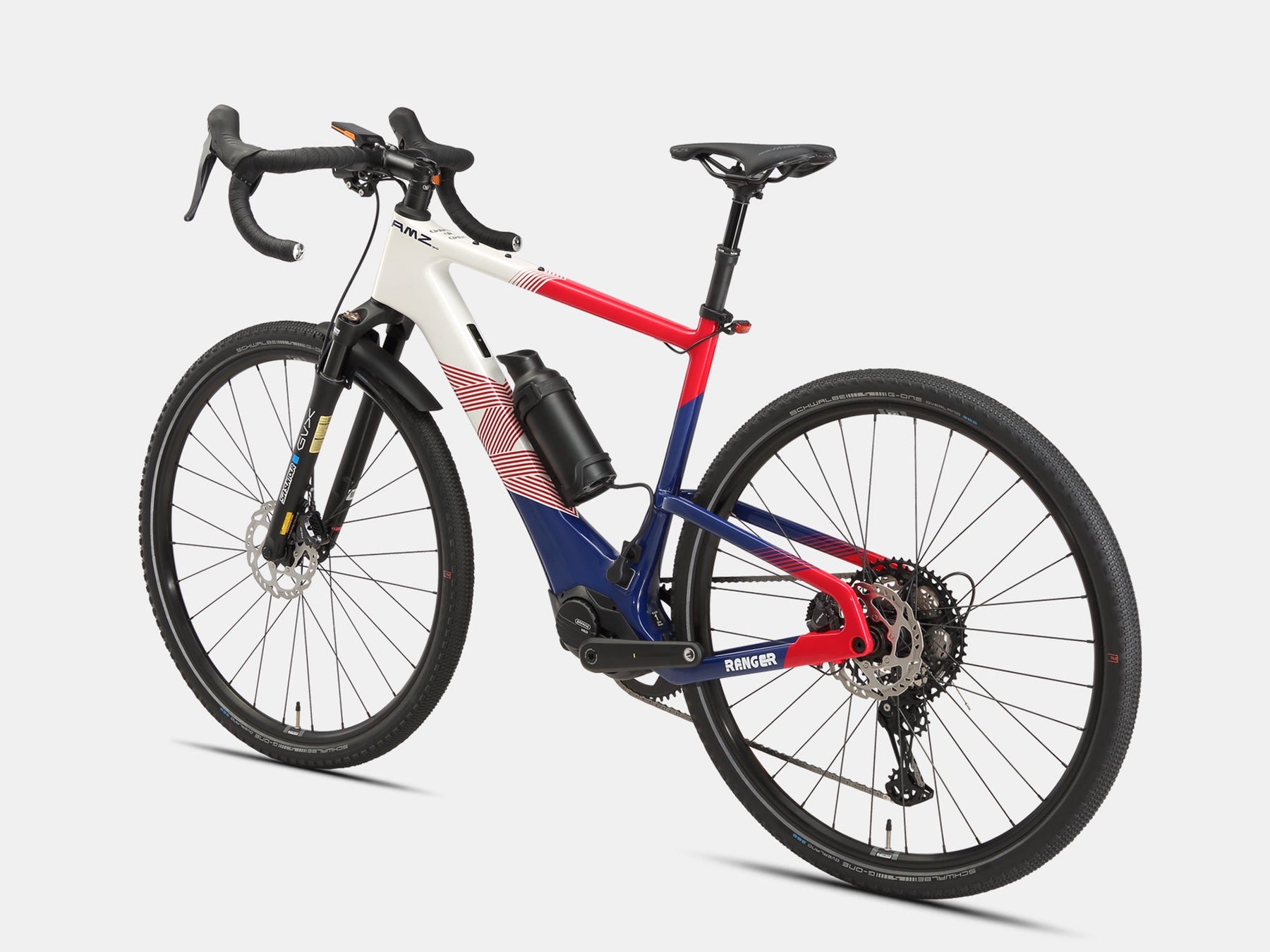

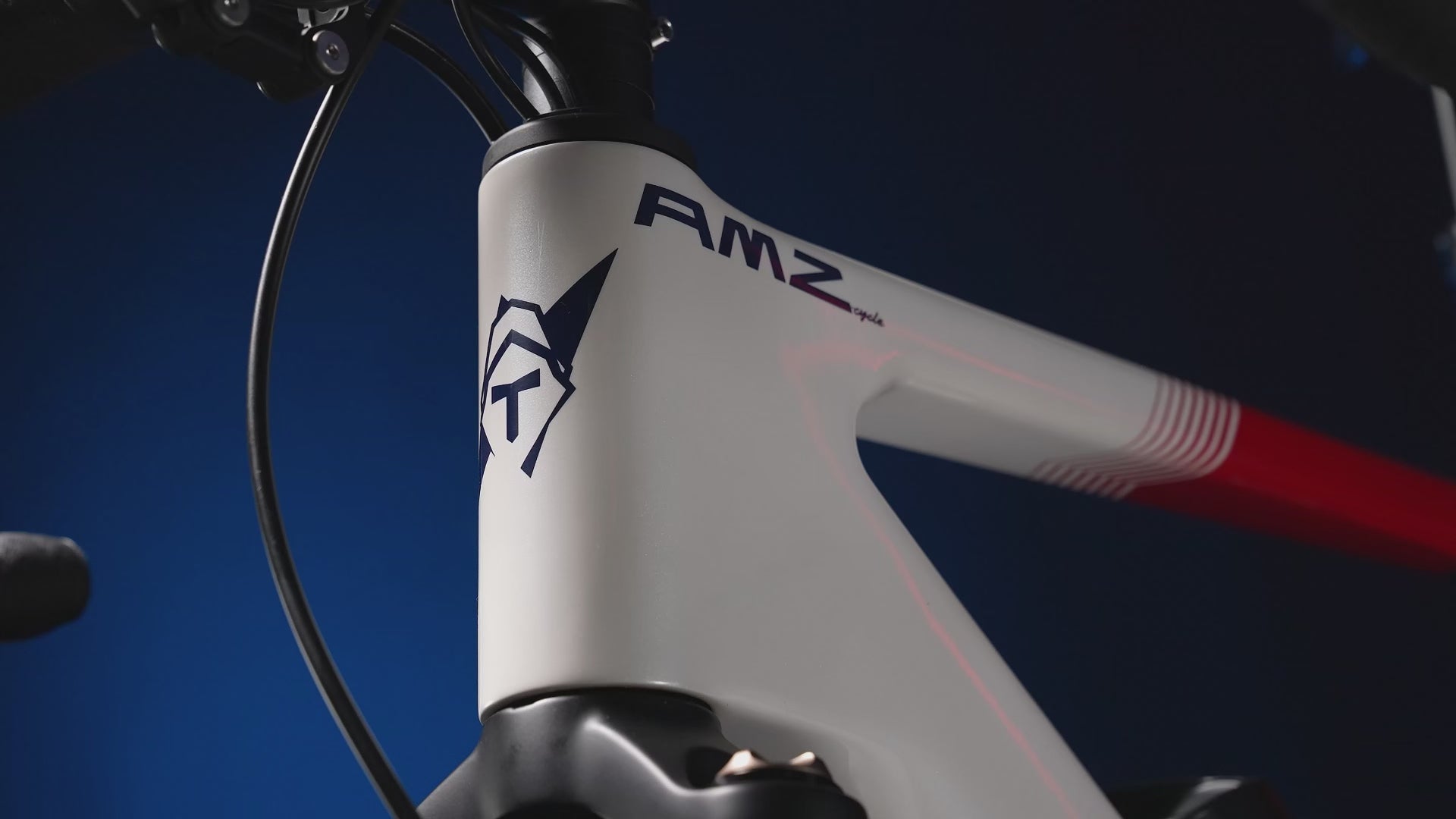

Toray T800 Carbon Fiber Frame

The frame with gravel geometry-delivering stability comfort and endurance FICR design keeps it sleek clean and strong.

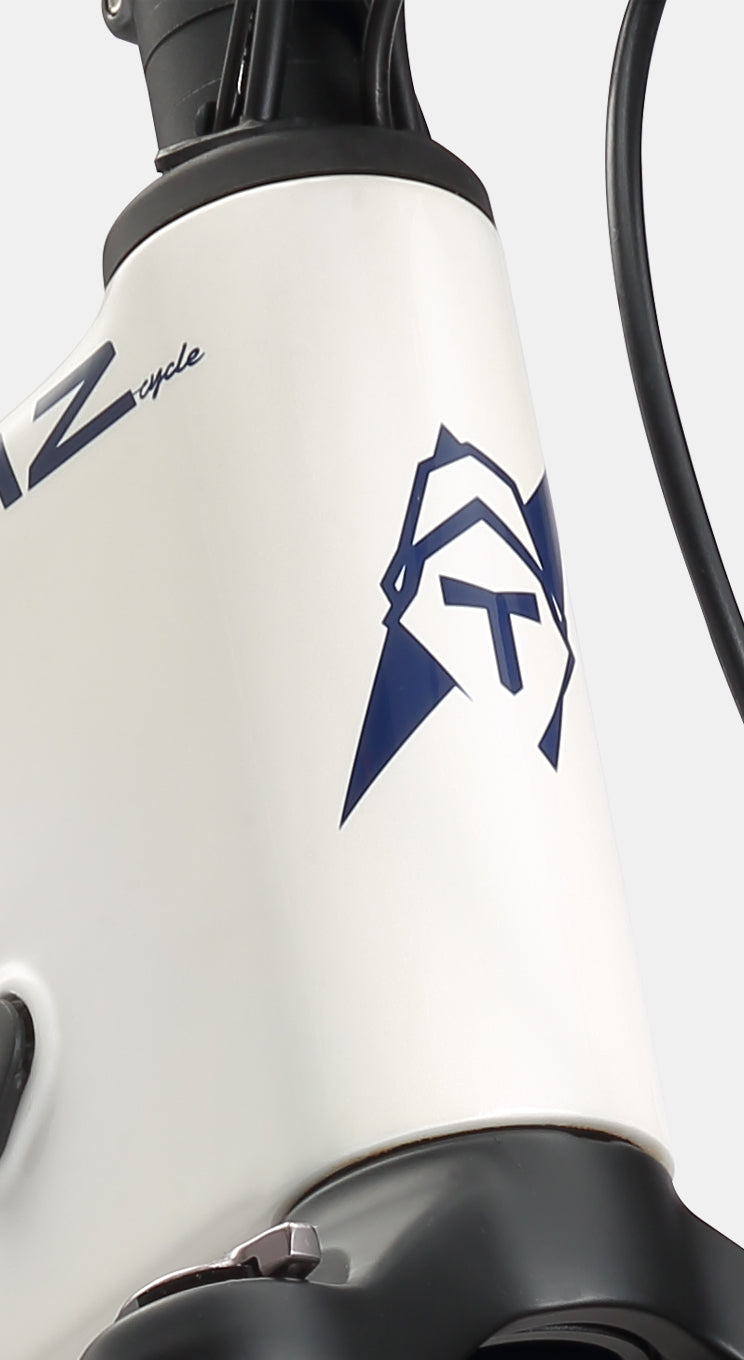

Balanced Head Tube

A 70° head tube angle delivers the perfect balance between speed and stability, keeping control accurately.

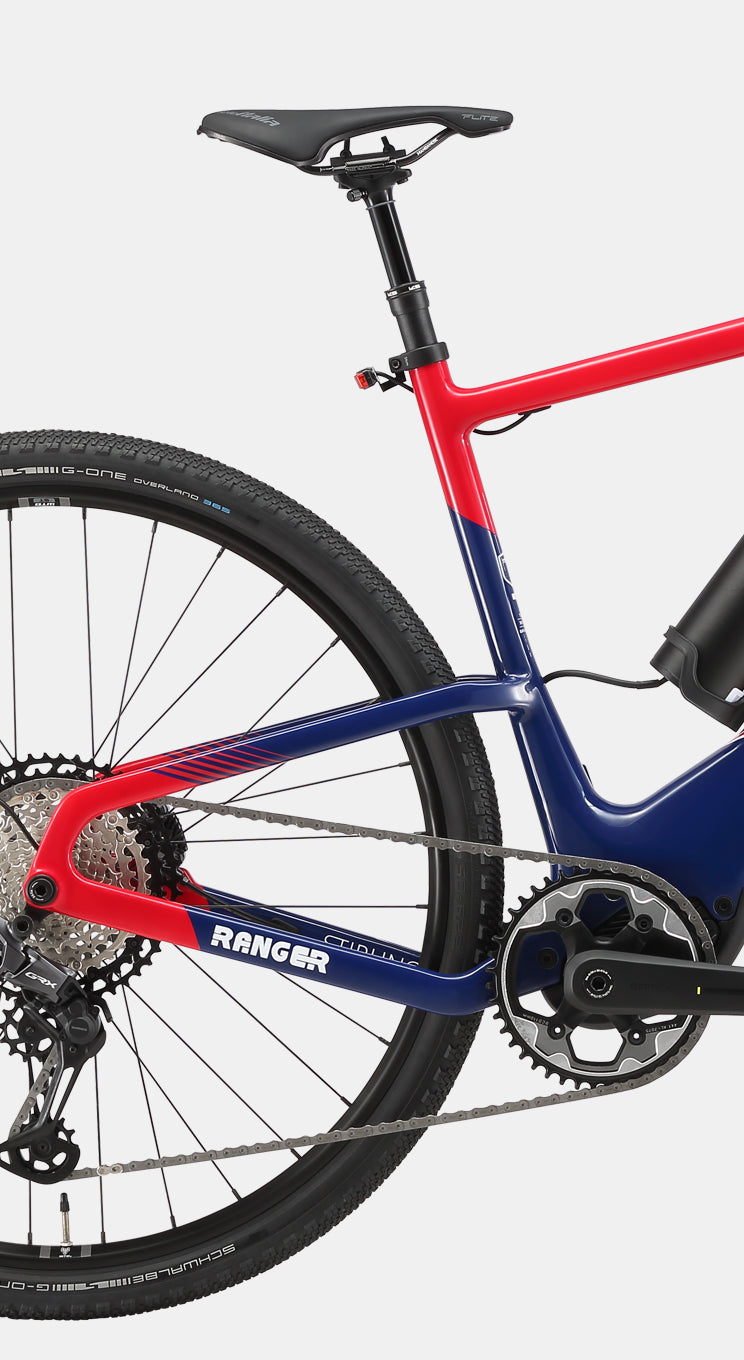

Lower Chainstay Design

The design achieves a smoother and more fluid silhouette while improving visual balance.

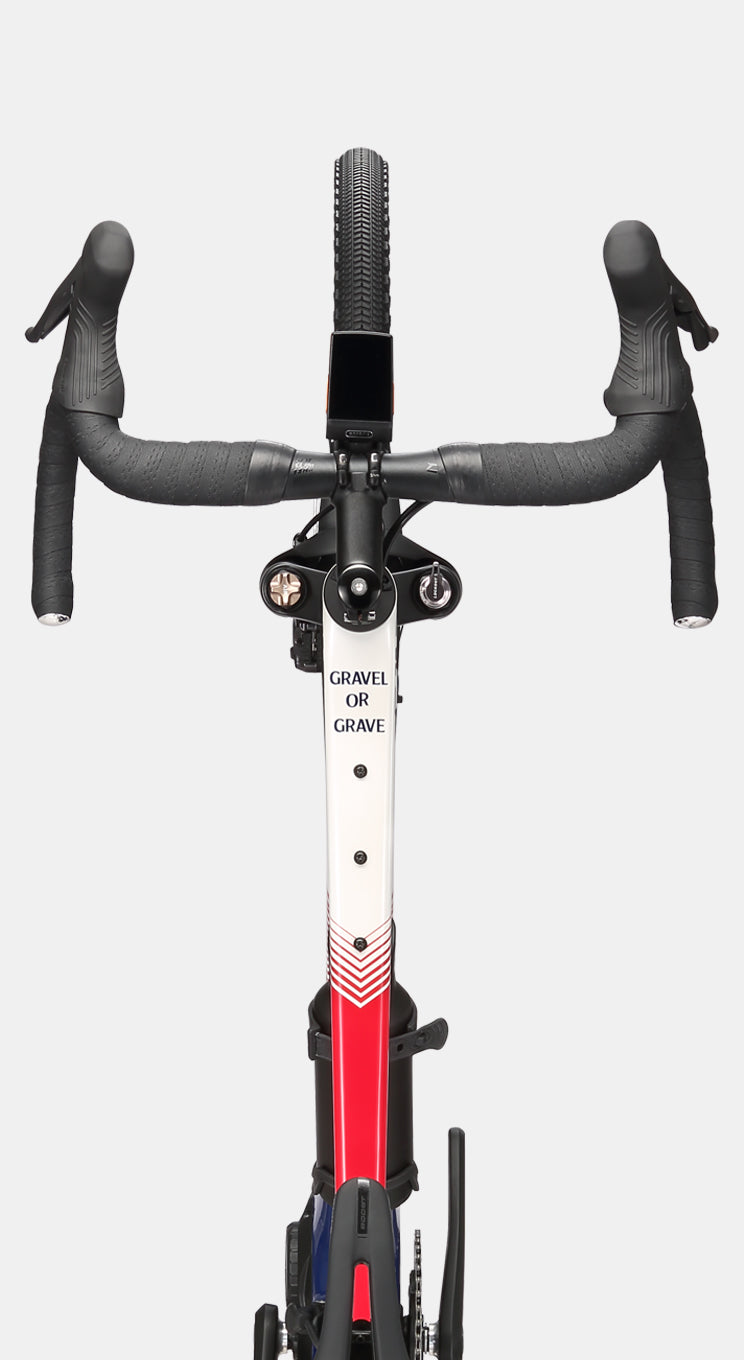

Longer Reach

Ranger GRX geometry makes riders in a more upright and comfortable position, reducing joint stress and stay centered.

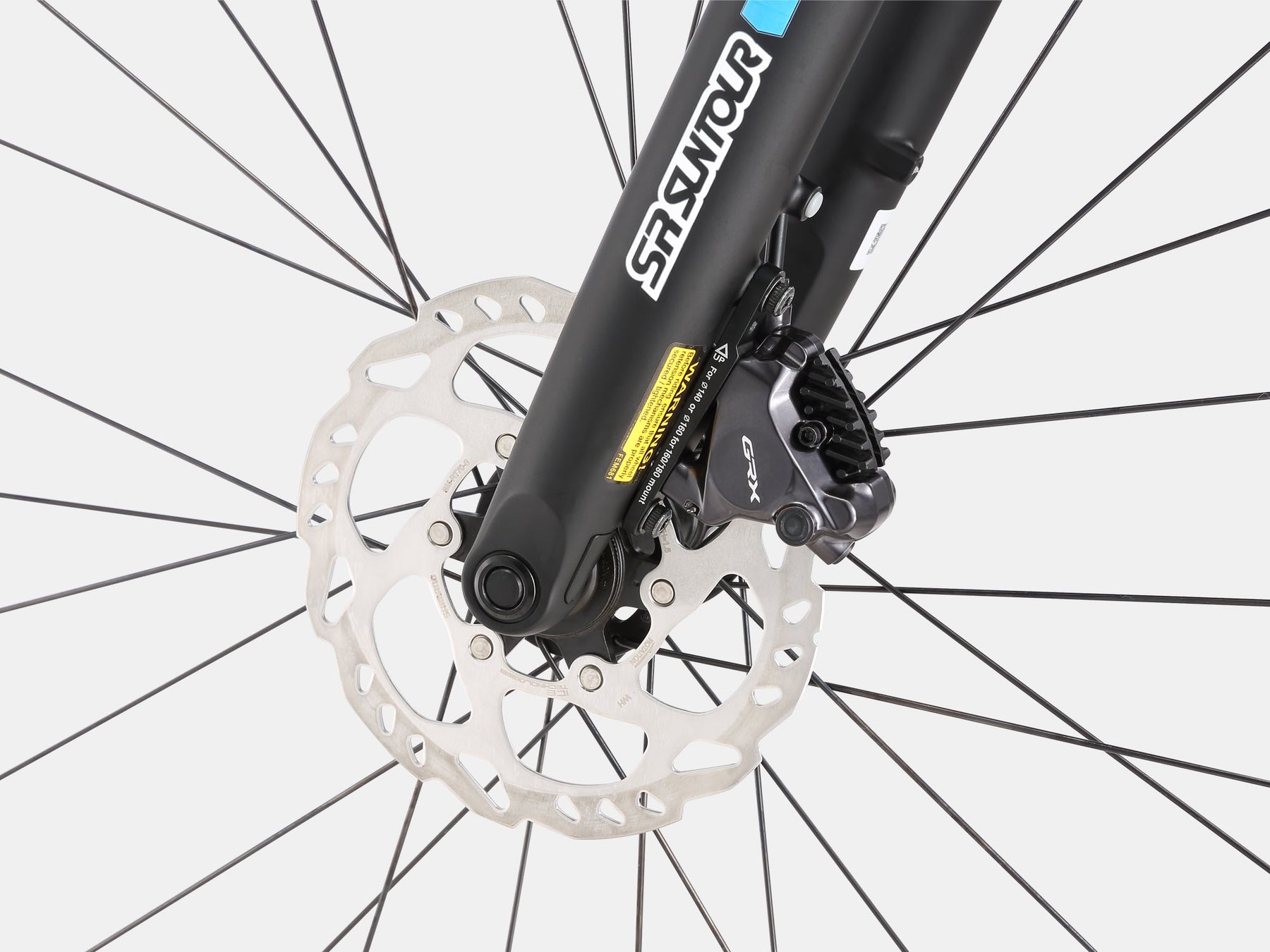

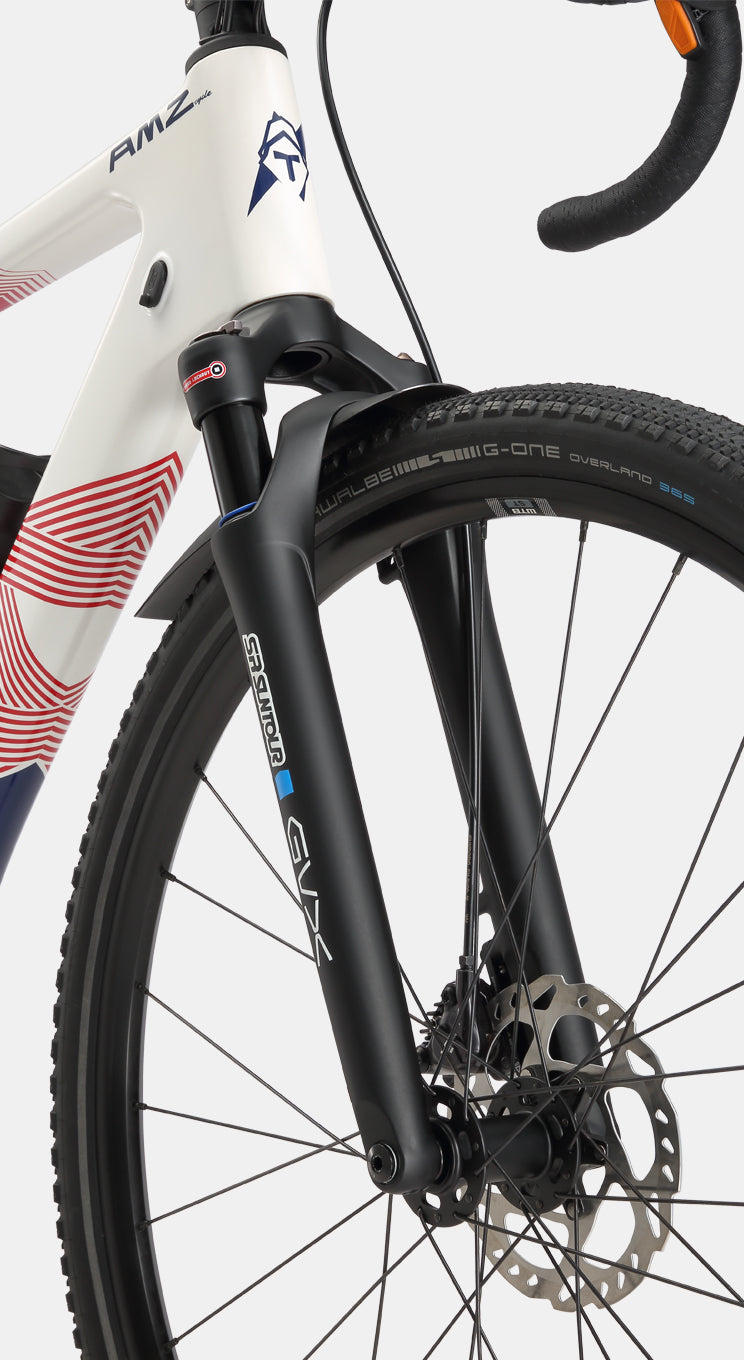

Smooth Suspension Fork

SR Suntour GVX air-spring gravel fork with 30mm travel create traction, comfort and versatility and precise control.

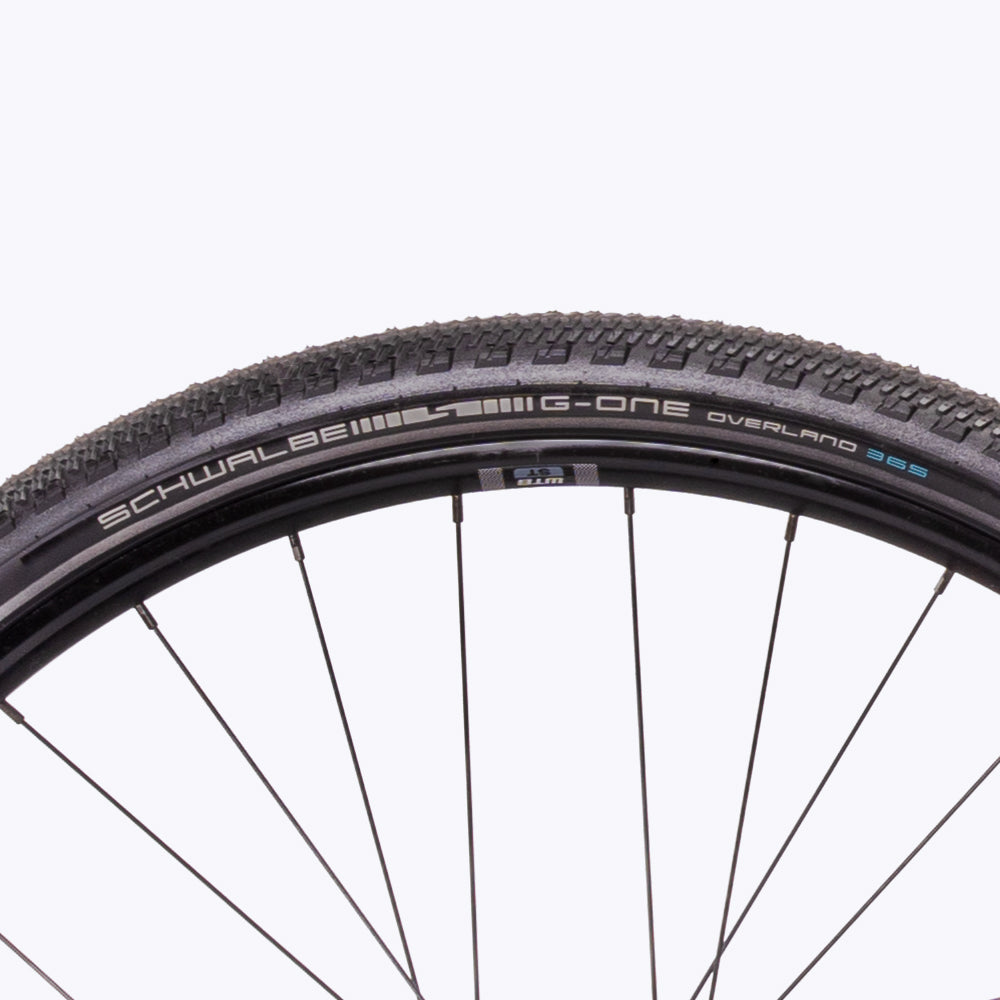

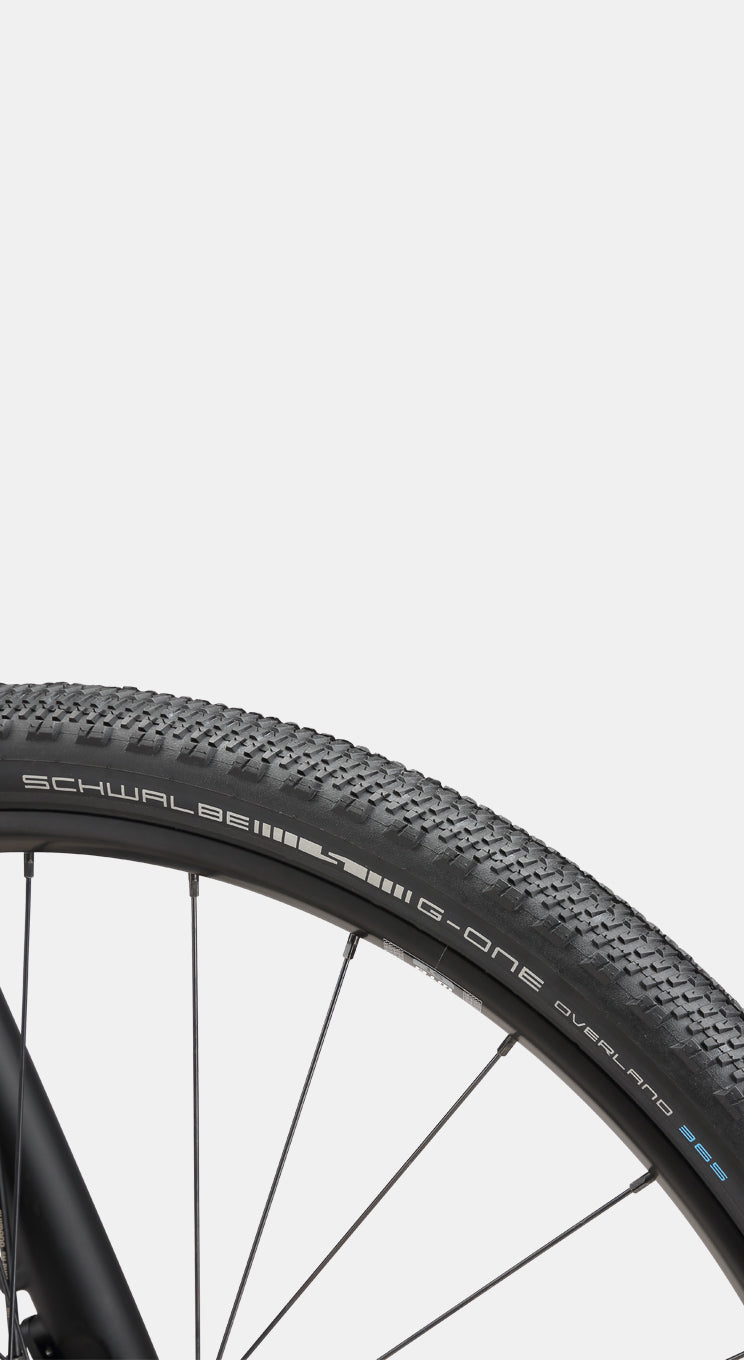

Grippy Gravel Tires

SCHWALBE G-one 365 700C×50C tires deliver excellent grip, lightweight performance, and stable handling.

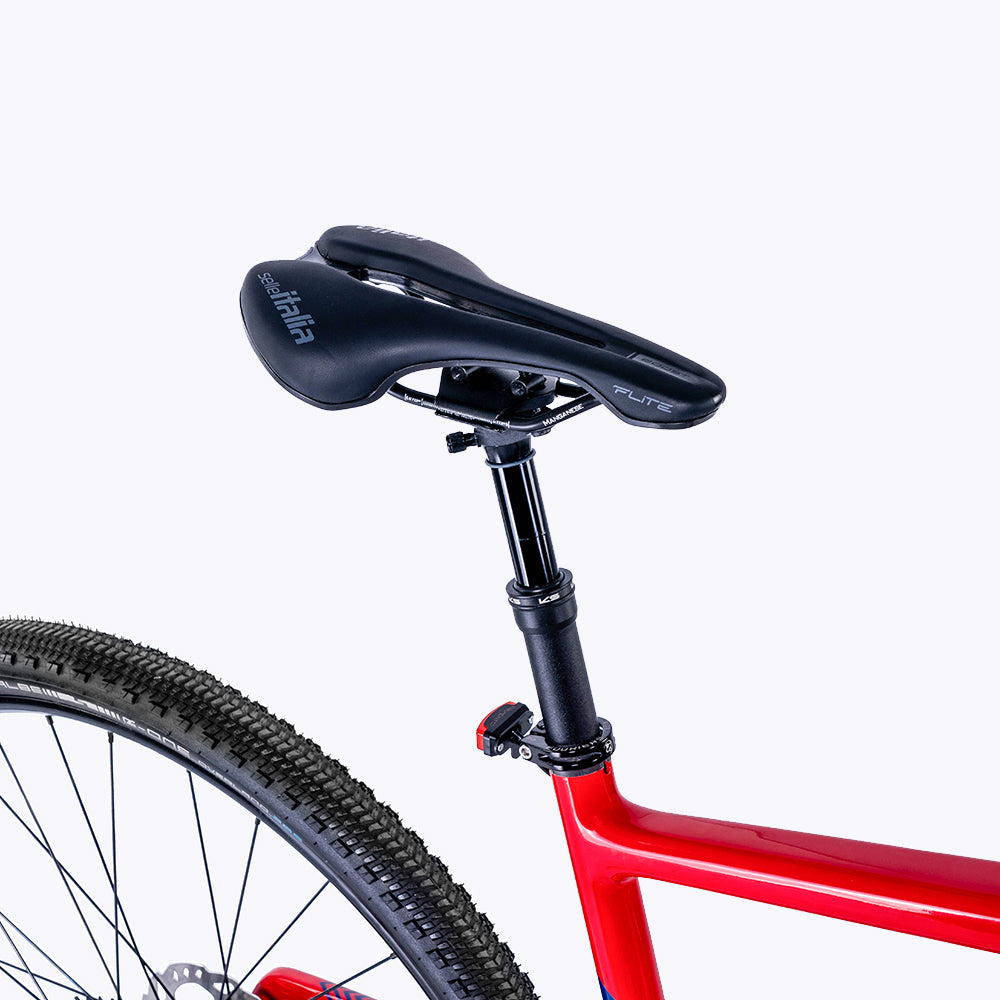

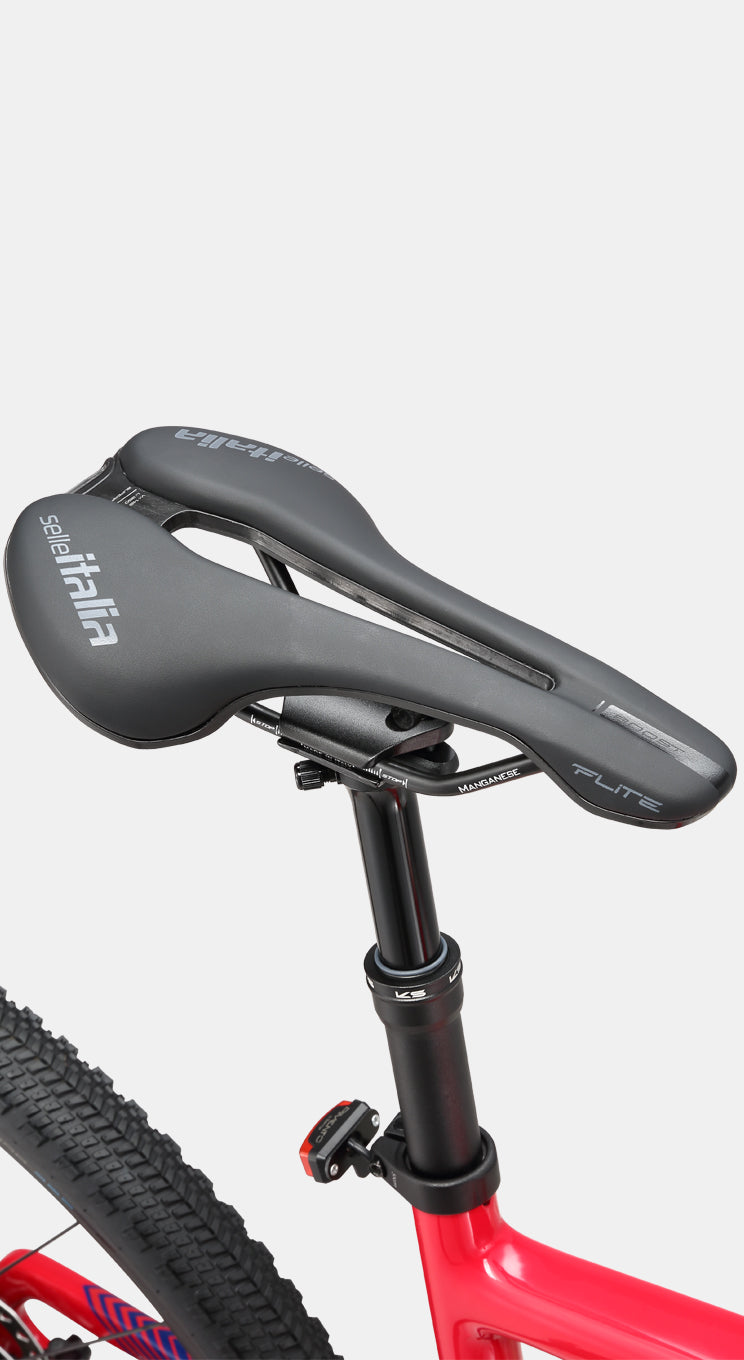

Supportive Saddle

Selle Italia FLITE – Flat top for larger support platform, long nose for ample thigh clearance and lightweight.

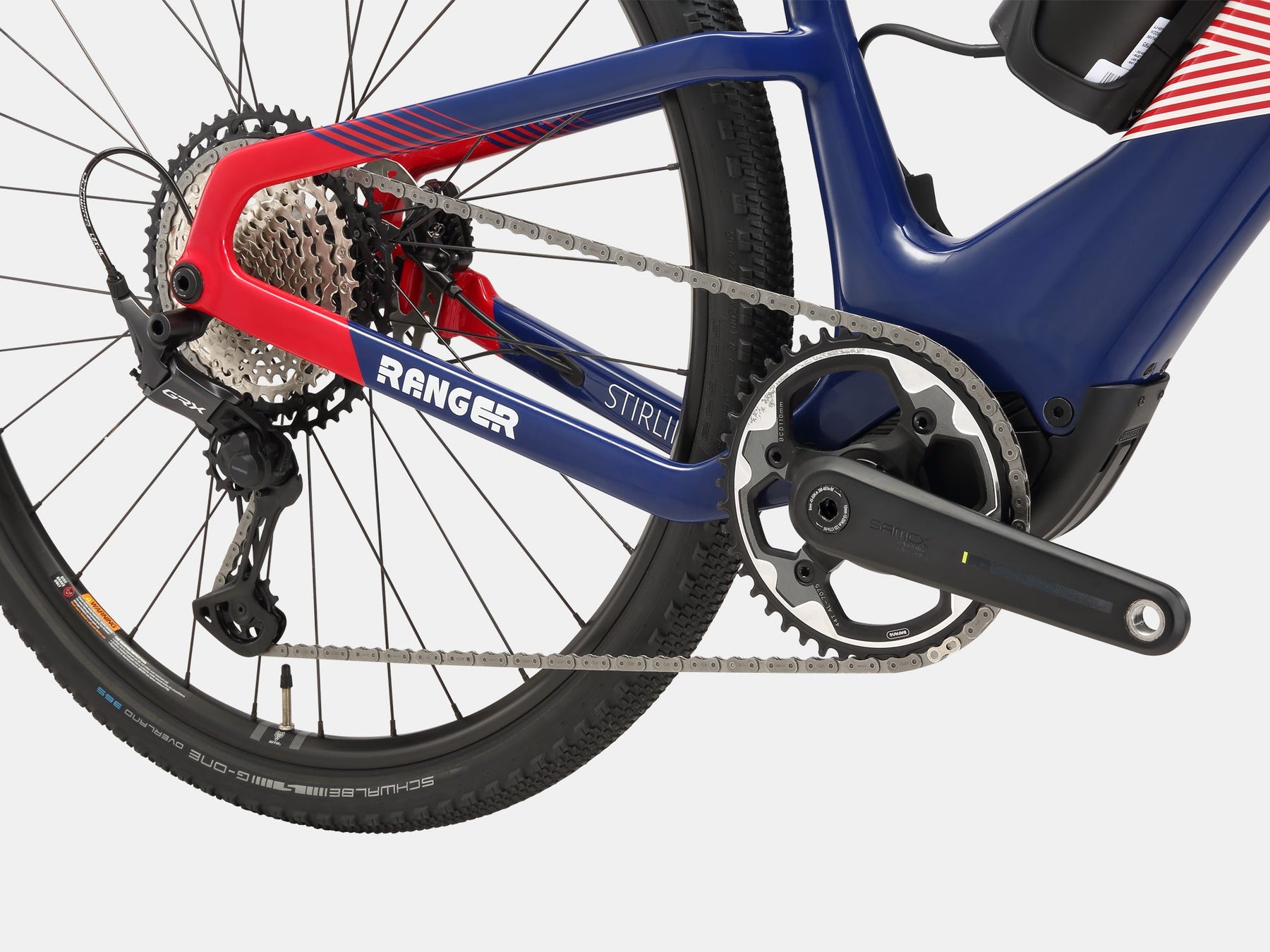

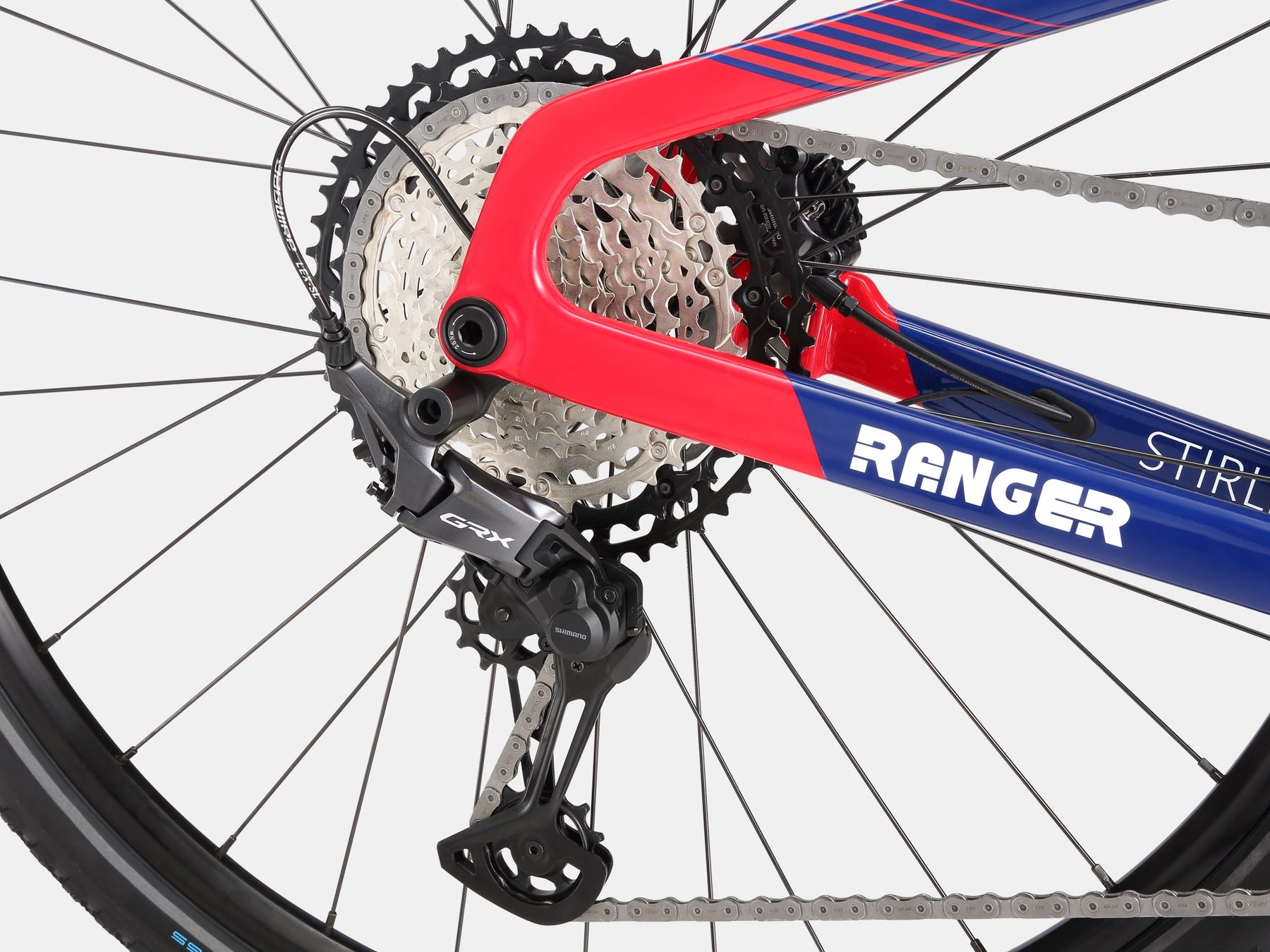

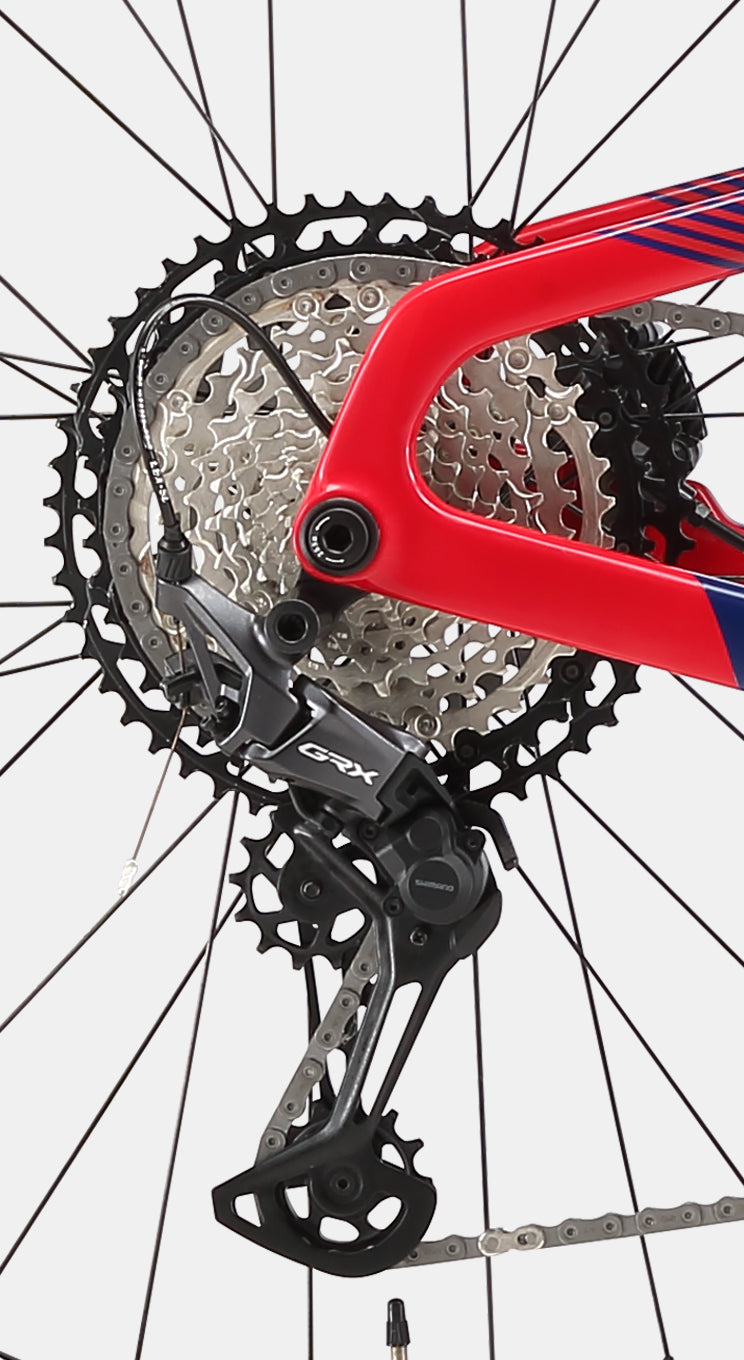

Precise Gravel Drivetrain

SHIMANO GRX 1×12s system ensures smooth shifting, reliable braking, and exceptional gravel comfort.

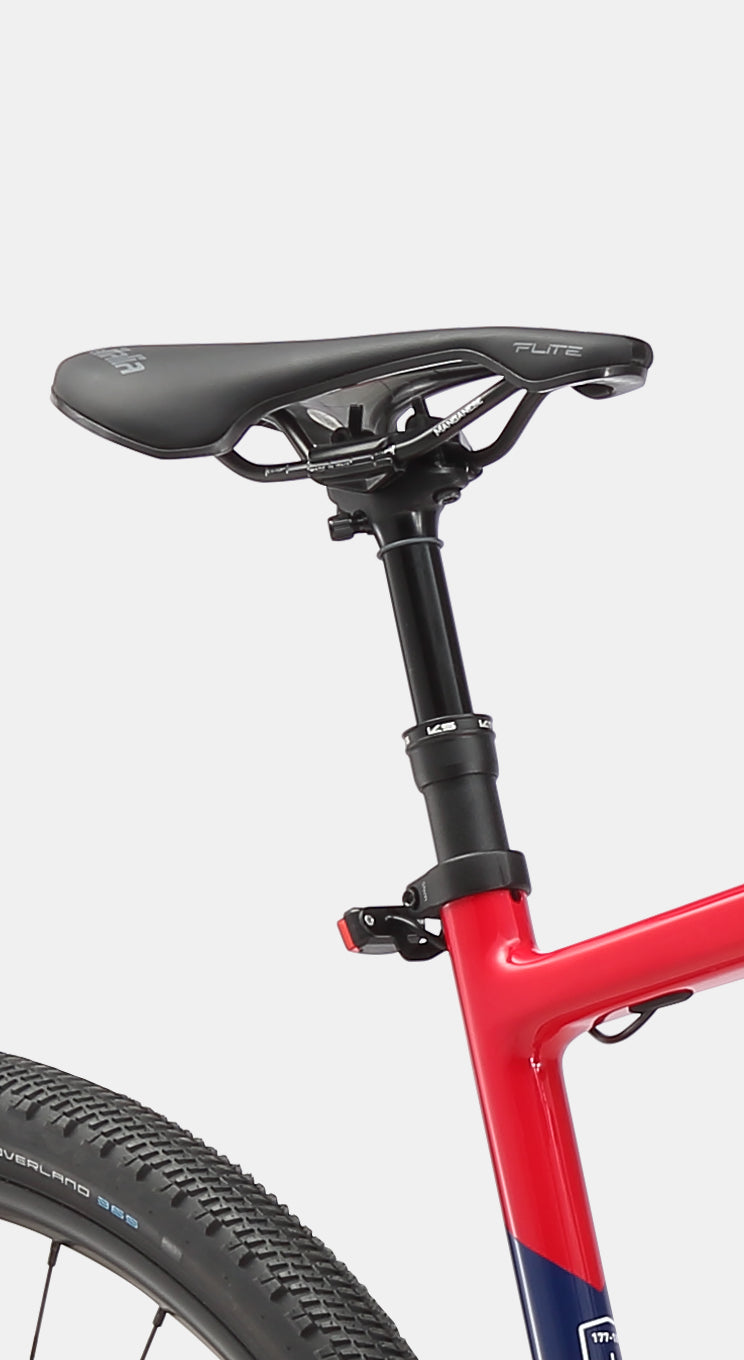

Adjustable Dropper Post

KS Rage iS 27.2mm dropper post with air-sprung suspension offers customizable height and all-day comfort.

Explore the Lineup

Aerolife Electric Commuter Bike - AMZcycleVIOLET

From $3,099

Mid-drive motor,Comfort, Speed and Efficiency

Cougar Electric Gravel Bike - AMZcycleCRIMSON PURPLE

From $1,899

Efficient, Comfort and Value

Easylife Electric Commuter Bike - AMZcycleRouge Nebula

From $1,499

Easy Riding for Daily Communtes

Paladin Electric XC Mountain Bike - AMZcycleGloam Gold

From $3,599

Mid-drive motor, Lightweight, Powerful, and Precise

Ranger APEX Electric Gravel Bike - AMZcycleFlag Red

From $4,399

Lightweight, Speed and Endurance

Unboxing & Maintenance Series

Unboxing & Assembling Your AMZcycle Ranger GRX – Ready for Gravel & Beyond

AMZcycle Ranger GRX | Flow Through Every Ride

How to Use the Controller on Ranger GRX

How to Do a Pre-Ride Safety Check on Ranger GRX

How to Shift Gears on Ranger GRX

FAQ Ranger GRX

What is the motor power and torque? Can it handle climbing?

The Ranger GRX uses a Bafang M820 mid-drive motor rated at 250W with 75N·m of torque, providing strong support for city riding, gravel routes, and moderate climbs.

What is the battery capacity? Can I replace or extend the battery?

What is the riding range on a single charge?

Is this bike certified for safety?

How long does charging take? Does it support fast charging?

What is the bike weight and maximum load capacity?

What riding scenarios is this bike suitable for?

What braking and drivetrain system does it use?

What are the frame and fork materials? Are they durable?

Are the electronic components waterproof?
