Name: Paladin Electric XC Mountain Bike
Brand: AMZcycle
SKU: TS2403111
Price: 3599.0 USD
Availability: InStock

Paladin Electric XC Mountain Bike - AMZcycleGloam Gold

Paladin Electric XC Mountain Bike - AMZcycleDawn Silver

Top Speed

20MPH

MOTOR POWER

750W(Peak)

RANGE

62–75 Miles

Weight

48lbs(M size)

Mid-drive motor, Lightweight, Powerful, and Precise

$4,299.00 $3,599.00

Top Speed

20MPH

MOTOR POWER

750W(Peak)

RANGE

62–75 Miles

Weight

48lbs(M size)

Class 1
Toray T800 Carbon Fiber Frame
BaFang M560 750W(Peak) 120N·m
48V 15Ah 720Wh Battery
6-8H charging time

Colour : Gloam Gold

Gloam Gold

Dawn Silver

SIZE

14 Days Return
5-year warranty
Free & Fast Shipping

Performance Table

E-bike Class	Class 1
Usage Scenario	Light Off-roading + Suburban Riding
Applicable height	64.6-75.6 inches
Weight	47.3 lbs (S) / 48.4 lbs (M) / 49.5 lbs (L)
Voltage	48V
Charging Time	6-8 hours
Maximum Load	264.56 lbs (converted from 120 kg)
Battery Capacity	720 Wh
Motor Power	500W（peak：750W)
Max Pedelec Range	62–75 miles
Max Pedelec Speed	20 mph

Specification Table

Frame Set	Full Carbon Fiber Frame; 29" (736mm); 148×12mm Axle; Post Mount Brake; UDH; FICR
Headset	FICR; 51.8×8.7mm – 51.8×7.5mm Bearing
Fork	RockShox 35G; 29" (736mm); 15×110mm Axle; Travel: 4.7" (120mm)
Motor	BAFANG M560; 48V; 500W; 120N·m
Battery	LG 21700 Cell; 48V 15Ah; UL2271; DC2.1; IPX5
Secondary Battery	NA
Controller	BAFANG M560; 48V
Display	BAFANG LCD; 3.5"
Headlight	LED; 12V 0.3A (3.5W)
Taillight	LED; 12V 0.025A (0.3W)
Speed Sensor	BaFang SR SD021.01
Dual Control Lever	NA
Front Brake	MAGURA MT5 Left Hand; 4-piston Caliper; 2-finger Aluminium Lever Blade; SRAM Matchmaker
Rear Brake	MAGURA MT5 Right Hand; 4-piston Caliper; 2-finger Aluminium Lever Blade; SHIMANO I-Spec EV
Front Disc	MAGURA STORM MDR-C; 7.1" (180mm); 6-bolt
Rear Disc	MAGURA STORM MDR-C; 6.3" (160mm); 6-bolt
Shifter	SHIMANO M6100; 12s; I-Spec EV
Rear Derailleur	SHIMANO M6100; 12s
Chainring	SAMOX AL6061; 38T
Crankarm	SAMOX AL6061; 6.5"/6.7"/6.9" (165/170/175mm)
Chain	SHIMANO 12s
Cassette	SHIMANO M6100; 12s; 10–51T

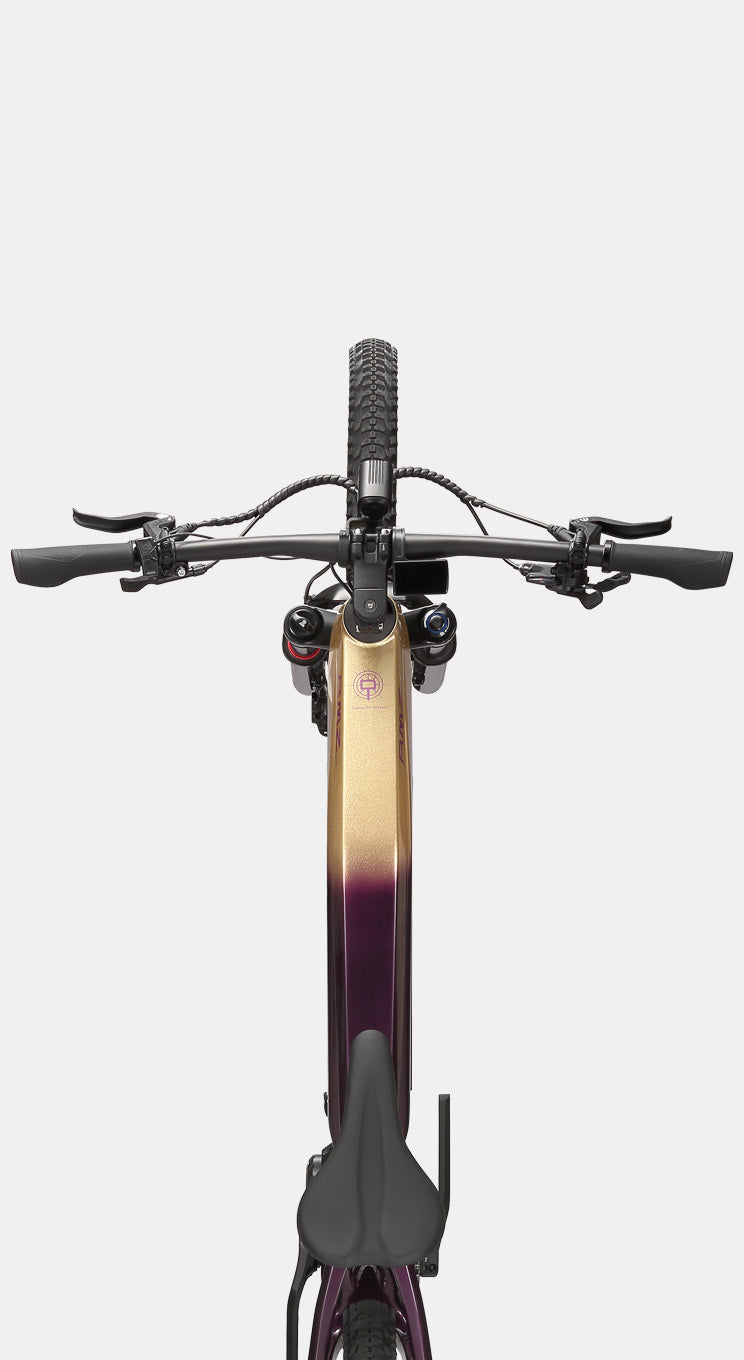

Handlebar	AL6061; Barbore: 31.8mm; Backsweep: 9°; Width: 27.6"/28.3" (700/720mm)
Stem	AL6061; Angle: -7°; Diameter: 31.8mm; Length: 2.4" (60mm)

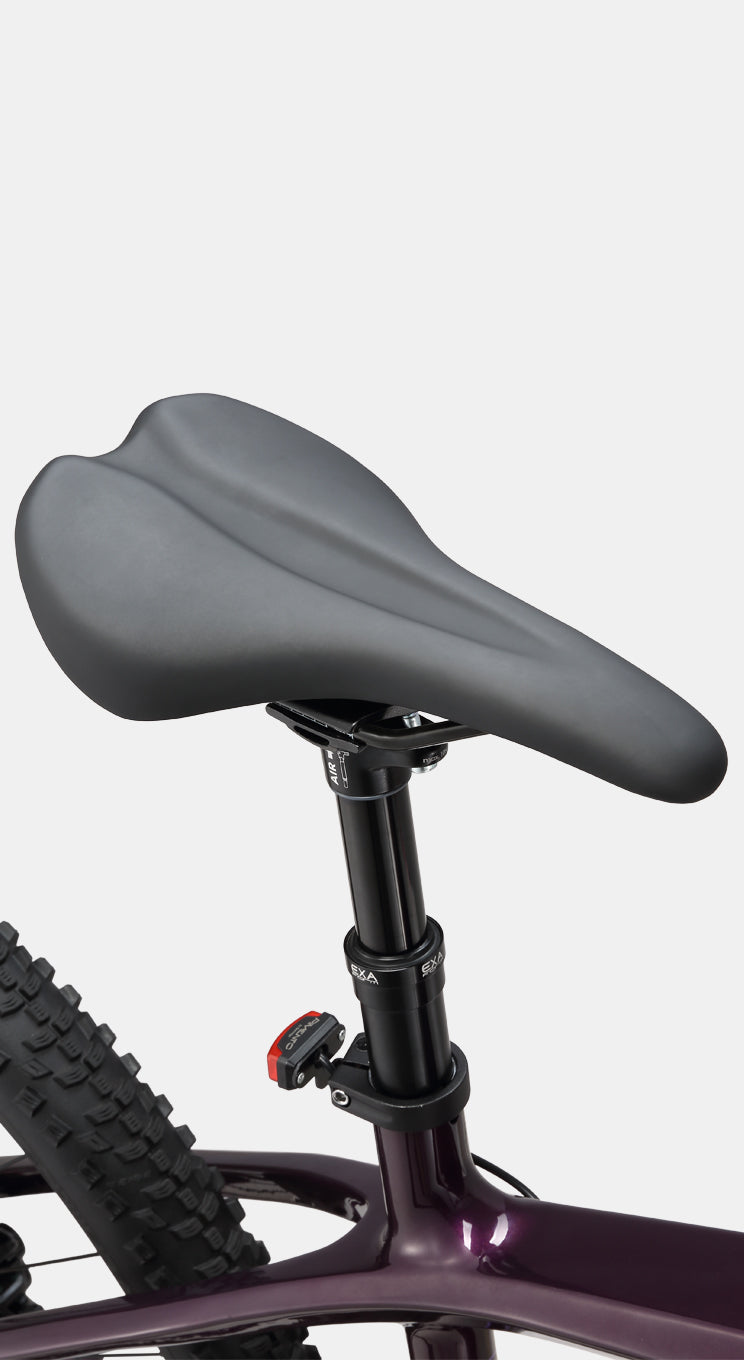

Saddle	VELO; 10.0"×5.7" (255×145mm)
Pedal	4.6"×4.1" (116×105mm); ZP Bearing

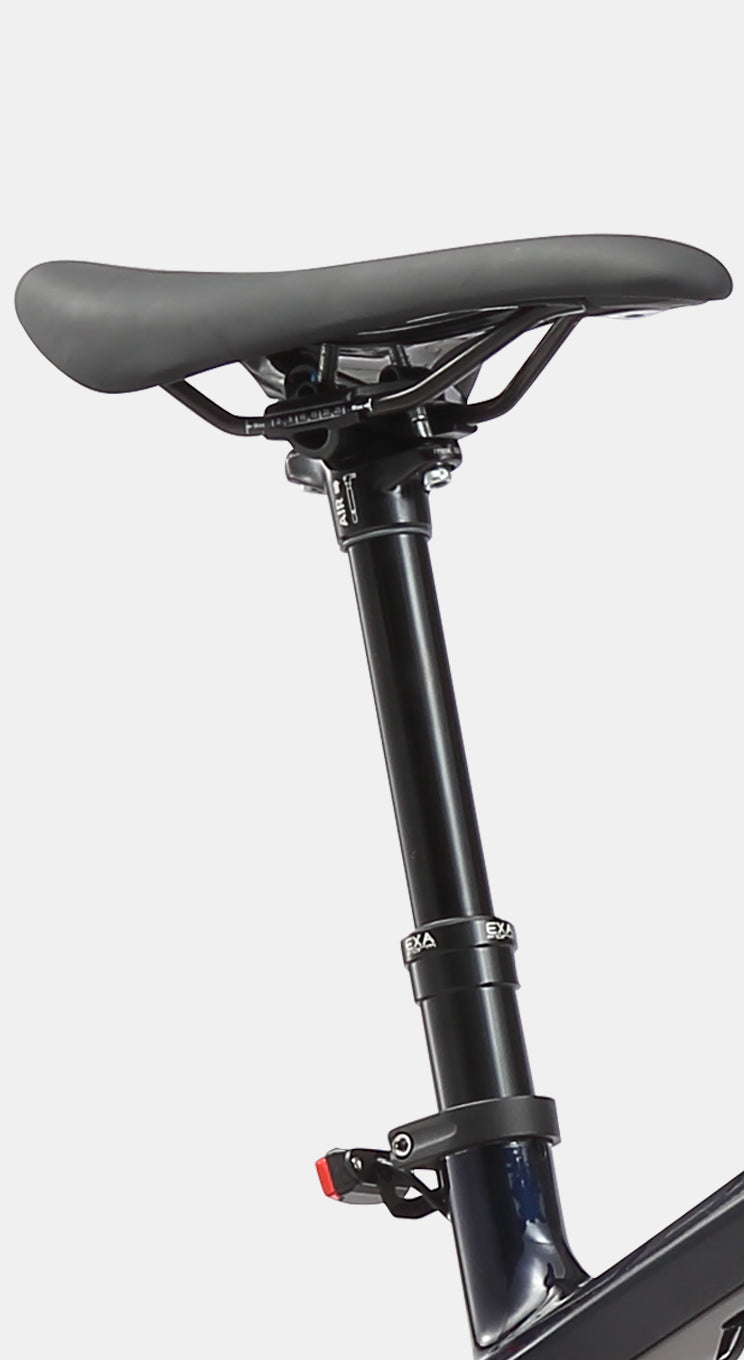

Dropper Post	KS 860i; 30.9mm; Travel: 4.9"/5.9" (125/150mm); Air Spring; I-Spec EV
Dropper Post Controller	KS WESTY 2.0; Matchmaker Shifters
Rims	AL6061; 32H; FV
Front Hubs	NovaTec D041sb; 14G; 32H; 110mm
Rear Hubs	NovaTec D442sb; 13G; 32H; 148mm
Spokes	Front: 14G / Rear: 13G
Nipples	Front: 14G / Rear: 13G; 14mm
Tubes	KENDA 29×2.35"
Tires	Schwalbe Smart Sam; 29×2.35"

Frame: 5 years
Front Fork: 2 years
Motor: 12 months
Battery: 18 months or 20,000 miles (whichever comes first)
Display: 12 months
For more components and details, please refer to our warranty card.

Packing List: AMZcycle Paladin Electric Bike, Assembly Toolkit (to help you assemble the bike), Battery & Charger, Headlight & Taillight, Display, Cable Binders, Left & Right Pedals.

For more details, please refer to the document.

▼Paladin_What_s_in_the_Box

▼Paladin-User-Manual

▼Paladin-Quick-Start-Guide

▼TS-WarrantyCard

[{"id":46452639793326,"title":"Gloam Gold \/ S","option1":"Gloam Gold","option2":"S","option3":null,"sku":"TS2403111","requires_shipping":true,"taxable":false,"featured_image":{"id":41302414491822,"product_id":8740983898286,"position":1,"created_at":"2025-09-20T05:07:17-05:00","updated_at":"2025-10-20T04:21:20-05:00","alt":"Paladin Electric XC Mountain Bike - AMZcycleGloam Gold","width":2000,"height":1500,"src":"\/\/amzcycle.cc\/cdn\/shop\/files\/paladin-electric-xc-mountain-bike-2354787.jpg?v=1760952080","variant_ids":[46452639793326,46452639858862,46452639924398]},"available":true,"name":"Paladin Electric XC Mountain Bike - Gloam Gold \/ S","public_title":"Gloam Gold \/ S","options":["Gloam Gold","S"],"price":359900,"weight":21450,"compare_at_price":429900,"inventory_management":"shopify","barcode":"","featured_media":{"alt":"Paladin Electric XC Mountain Bike - AMZcycleGloam Gold","id":32080919363758,"position":1,"preview_image":{"aspect_ratio":1.333,"height":1500,"width":2000,"src":"\/\/amzcycle.cc\/cdn\/shop\/files\/paladin-electric-xc-mountain-bike-2354787.jpg?v=1760952080"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":46452639858862,"title":"Gloam Gold \/ M","option1":"Gloam Gold","option2":"M","option3":null,"sku":"TS2403112","requires_shipping":true,"taxable":false,"featured_image":{"id":41302414491822,"product_id":8740983898286,"position":1,"created_at":"2025-09-20T05:07:17-05:00","updated_at":"2025-10-20T04:21:20-05:00","alt":"Paladin Electric XC Mountain Bike - AMZcycleGloam Gold","width":2000,"height":1500,"src":"\/\/amzcycle.cc\/cdn\/shop\/files\/paladin-electric-xc-mountain-bike-2354787.jpg?v=1760952080","variant_ids":[46452639793326,46452639858862,46452639924398]},"available":true,"name":"Paladin Electric XC Mountain Bike - Gloam Gold \/ M","public_title":"Gloam Gold \/ M","options":["Gloam Gold","M"],"price":359900,"weight":21950,"compare_at_price":429900,"inventory_management":"shopify","barcode":"","featured_media":{"alt":"Paladin Electric XC Mountain Bike - AMZcycleGloam Gold","id":32080919363758,"position":1,"preview_image":{"aspect_ratio":1.333,"height":1500,"width":2000,"src":"\/\/amzcycle.cc\/cdn\/shop\/files\/paladin-electric-xc-mountain-bike-2354787.jpg?v=1760952080"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":46452639924398,"title":"Gloam Gold \/ L","option1":"Gloam Gold","option2":"L","option3":null,"sku":"TS2403113","requires_shipping":true,"taxable":false,"featured_image":{"id":41302414491822,"product_id":8740983898286,"position":1,"created_at":"2025-09-20T05:07:17-05:00","updated_at":"2025-10-20T04:21:20-05:00","alt":"Paladin Electric XC Mountain Bike - AMZcycleGloam Gold","width":2000,"height":1500,"src":"\/\/amzcycle.cc\/cdn\/shop\/files\/paladin-electric-xc-mountain-bike-2354787.jpg?v=1760952080","variant_ids":[46452639793326,46452639858862,46452639924398]},"available":true,"name":"Paladin Electric XC Mountain Bike - Gloam Gold \/ L","public_title":"Gloam Gold \/ L","options":["Gloam Gold","L"],"price":359900,"weight":22450,"compare_at_price":429900,"inventory_management":"shopify","barcode":"","featured_media":{"alt":"Paladin Electric XC Mountain Bike - AMZcycleGloam Gold","id":32080919363758,"position":1,"preview_image":{"aspect_ratio":1.333,"height":1500,"width":2000,"src":"\/\/amzcycle.cc\/cdn\/shop\/files\/paladin-electric-xc-mountain-bike-2354787.jpg?v=1760952080"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":46452639760558,"title":"Dawn Silver \/ S","option1":"Dawn Silver","option2":"S","option3":null,"sku":"TS2403121","requires_shipping":true,"taxable":false,"featured_image":{"id":41302414327982,"product_id":8740983898286,"position":9,"created_at":"2025-09-20T05:07:17-05:00","updated_at":"2025-10-20T04:21:21-05:00","alt":"Paladin Electric XC Mountain Bike - AMZcycleDawn Silver","width":2000,"height":1500,"src":"\/\/amzcycle.cc\/cdn\/shop\/files\/paladin-electric-xc-mountain-bike-4230796.jpg?v=1760952081","variant_ids":[46452639760558,46452639826094,46452639891630]},"available":true,"name":"Paladin Electric XC Mountain Bike - Dawn Silver \/ S","public_title":"Dawn Silver \/ S","options":["Dawn Silver","S"],"price":359900,"weight":21450,"compare_at_price":429900,"inventory_management":"shopify","barcode":"","featured_media":{"alt":"Paladin Electric XC Mountain Bike - AMZcycleDawn Silver","id":32080919199918,"position":9,"preview_image":{"aspect_ratio":1.333,"height":1500,"width":2000,"src":"\/\/amzcycle.cc\/cdn\/shop\/files\/paladin-electric-xc-mountain-bike-4230796.jpg?v=1760952081"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":46452639826094,"title":"Dawn Silver \/ M","option1":"Dawn Silver","option2":"M","option3":null,"sku":"TS2403122","requires_shipping":true,"taxable":false,"featured_image":{"id":41302414327982,"product_id":8740983898286,"position":9,"created_at":"2025-09-20T05:07:17-05:00","updated_at":"2025-10-20T04:21:21-05:00","alt":"Paladin Electric XC Mountain Bike - AMZcycleDawn Silver","width":2000,"height":1500,"src":"\/\/amzcycle.cc\/cdn\/shop\/files\/paladin-electric-xc-mountain-bike-4230796.jpg?v=1760952081","variant_ids":[46452639760558,46452639826094,46452639891630]},"available":true,"name":"Paladin Electric XC Mountain Bike - Dawn Silver \/ M","public_title":"Dawn Silver \/ M","options":["Dawn Silver","M"],"price":359900,"weight":21950,"compare_at_price":429900,"inventory_management":"shopify","barcode":"","featured_media":{"alt":"Paladin Electric XC Mountain Bike - AMZcycleDawn Silver","id":32080919199918,"position":9,"preview_image":{"aspect_ratio":1.333,"height":1500,"width":2000,"src":"\/\/amzcycle.cc\/cdn\/shop\/files\/paladin-electric-xc-mountain-bike-4230796.jpg?v=1760952081"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":46452639891630,"title":"Dawn Silver \/ L","option1":"Dawn Silver","option2":"L","option3":null,"sku":"TS2403123","requires_shipping":true,"taxable":false,"featured_image":{"id":41302414327982,"product_id":8740983898286,"position":9,"created_at":"2025-09-20T05:07:17-05:00","updated_at":"2025-10-20T04:21:21-05:00","alt":"Paladin Electric XC Mountain Bike - AMZcycleDawn Silver","width":2000,"height":1500,"src":"\/\/amzcycle.cc\/cdn\/shop\/files\/paladin-electric-xc-mountain-bike-4230796.jpg?v=1760952081","variant_ids":[46452639760558,46452639826094,46452639891630]},"available":true,"name":"Paladin Electric XC Mountain Bike - Dawn Silver \/ L","public_title":"Dawn Silver \/ L","options":["Dawn Silver","L"],"price":359900,"weight":22450,"compare_at_price":429900,"inventory_management":"shopify","barcode":"","featured_media":{"alt":"Paladin Electric XC Mountain Bike - AMZcycleDawn Silver","id":32080919199918,"position":9,"preview_image":{"aspect_ratio":1.333,"height":1500,"width":2000,"src":"\/\/amzcycle.cc\/cdn\/shop\/files\/paladin-electric-xc-mountain-bike-4230796.jpg?v=1760952081"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

{"id":46452639793326,"title":"Gloam Gold \/ S","option1":"Gloam Gold","option2":"S","option3":null,"sku":"TS2403111","requires_shipping":true,"taxable":false,"featured_image":{"id":41302414491822,"product_id":8740983898286,"position":1,"created_at":"2025-09-20T05:07:17-05:00","updated_at":"2025-10-20T04:21:20-05:00","alt":"Paladin Electric XC Mountain Bike - AMZcycleGloam Gold","width":2000,"height":1500,"src":"\/\/amzcycle.cc\/cdn\/shop\/files\/paladin-electric-xc-mountain-bike-2354787.jpg?v=1760952080","variant_ids":[46452639793326,46452639858862,46452639924398]},"available":true,"name":"Paladin Electric XC Mountain Bike - Gloam Gold \/ S","public_title":"Gloam Gold \/ S","options":["Gloam Gold","S"],"price":359900,"weight":21450,"compare_at_price":429900,"inventory_management":"shopify","barcode":"","featured_media":{"alt":"Paladin Electric XC Mountain Bike - AMZcycleGloam Gold","id":32080919363758,"position":1,"preview_image":{"aspect_ratio":1.333,"height":1500,"width":2000,"src":"\/\/amzcycle.cc\/cdn\/shop\/files\/paladin-electric-xc-mountain-bike-2354787.jpg?v=1760952080"}},"requires_selling_plan":false,"selling_plan_allocations":[]}

Paladin, All-Round XC

E-bike for Every Terrain

Experience trails like never before. Ride further, climb higher.

Paladin, Where Power Meets Agility

Paladin is a cheetah with a powerful heart, fast and agile. With Paladin, every ride becomes a chase for speed, precision, and freedom. Paladin is like an extension of you, turning rugged climbs and fast trails into pure flow.

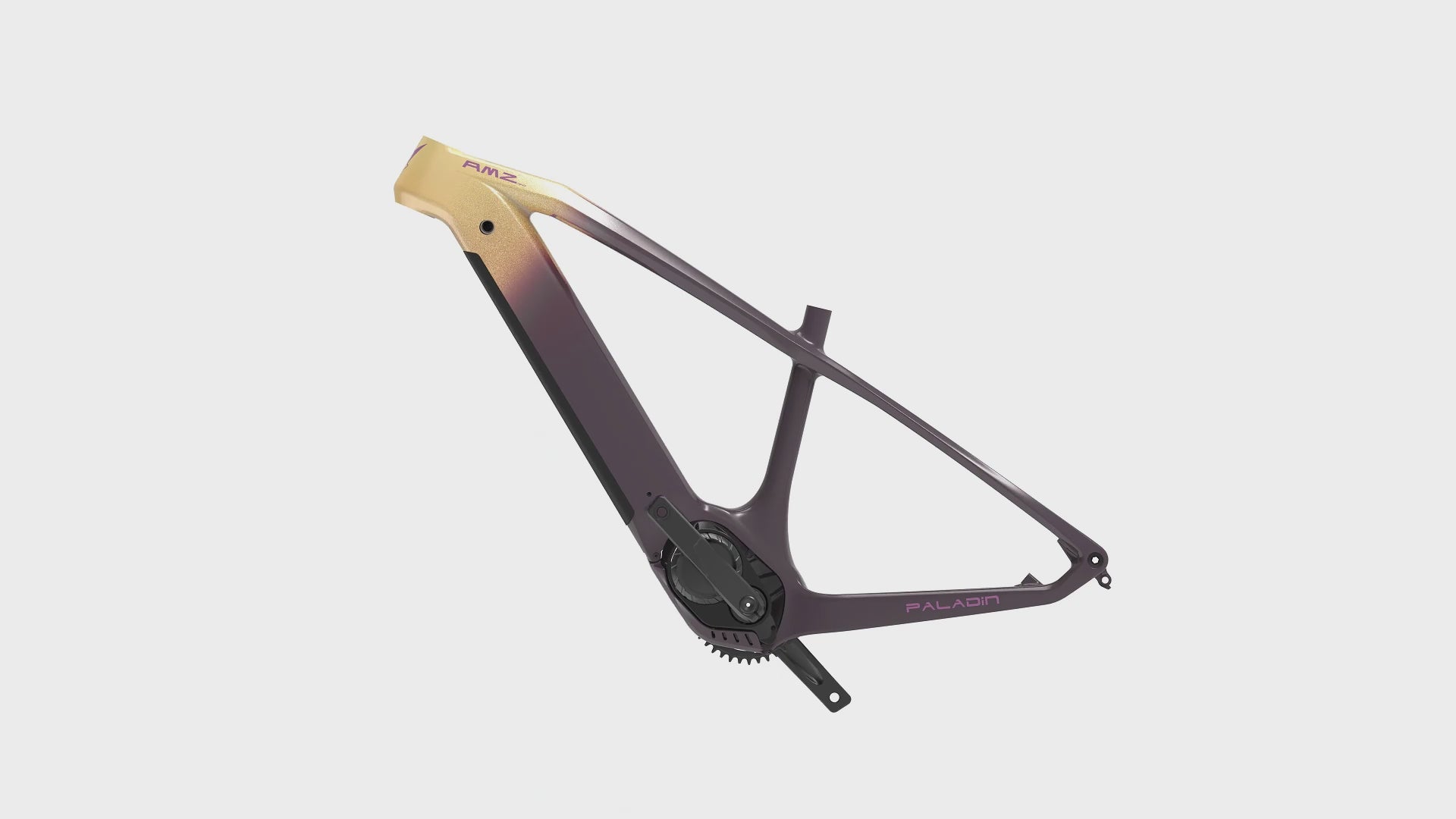

Toray T800 Carbon Fiber Frame

The frame has Modern XC Geometry with longer reach, higher stack, and 67° head angle balances speed, stability, and comfort.
Built with TORAY T800 carbon fiber for lightweight strength, it’s ready for any adventures.

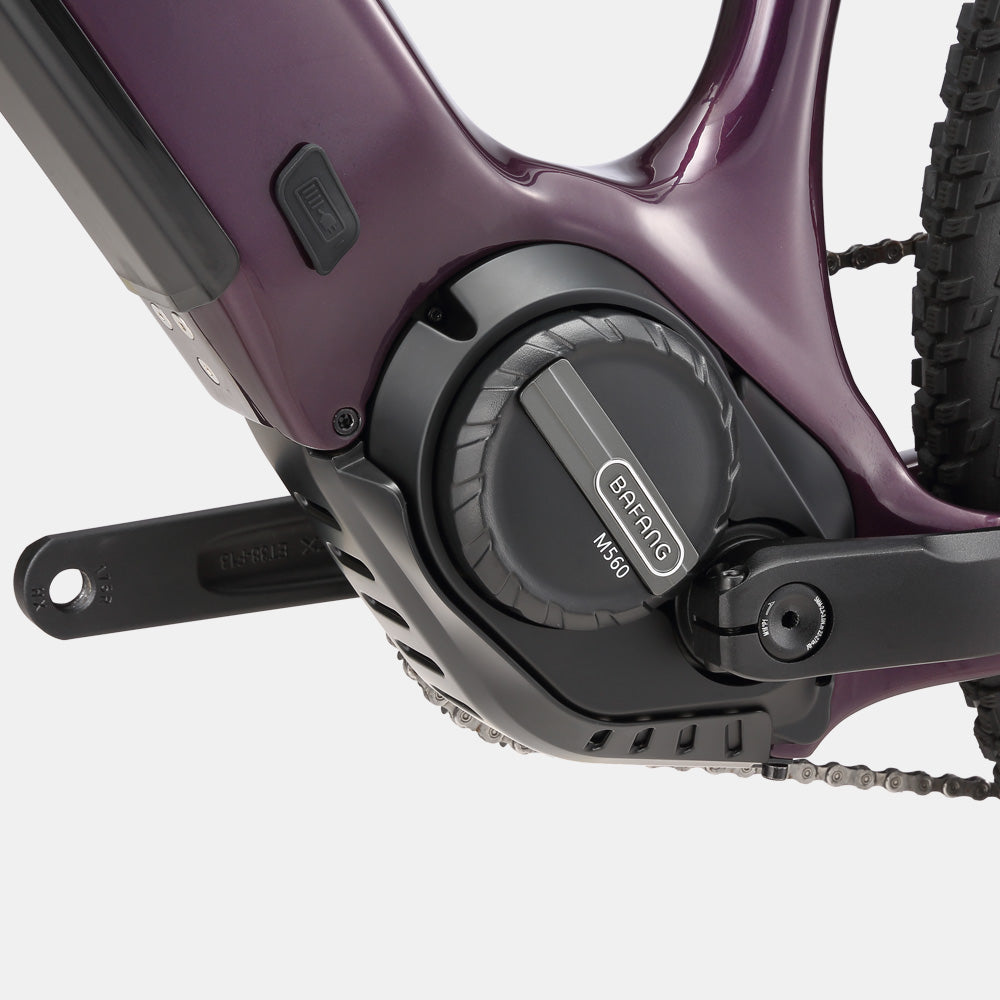

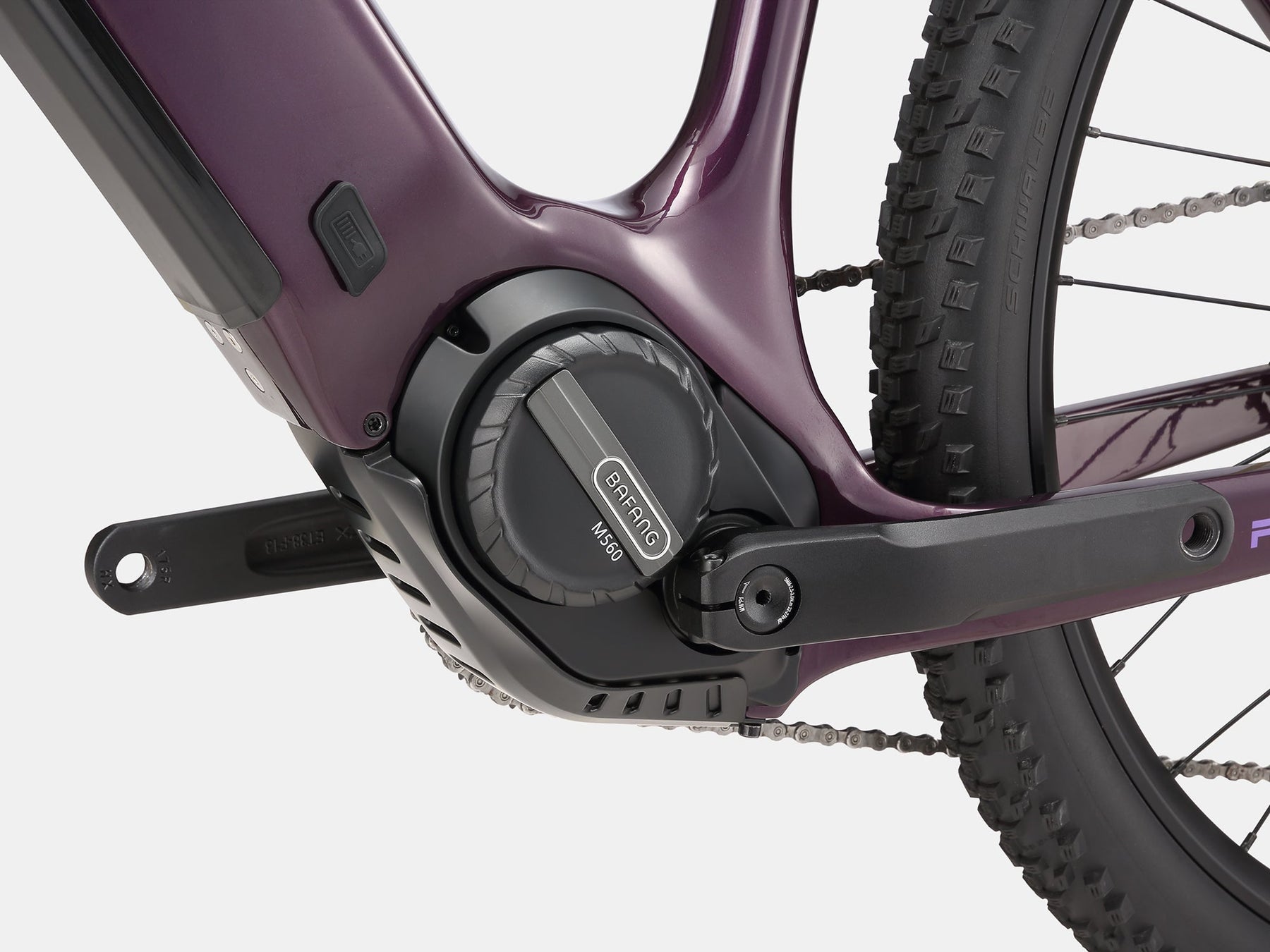

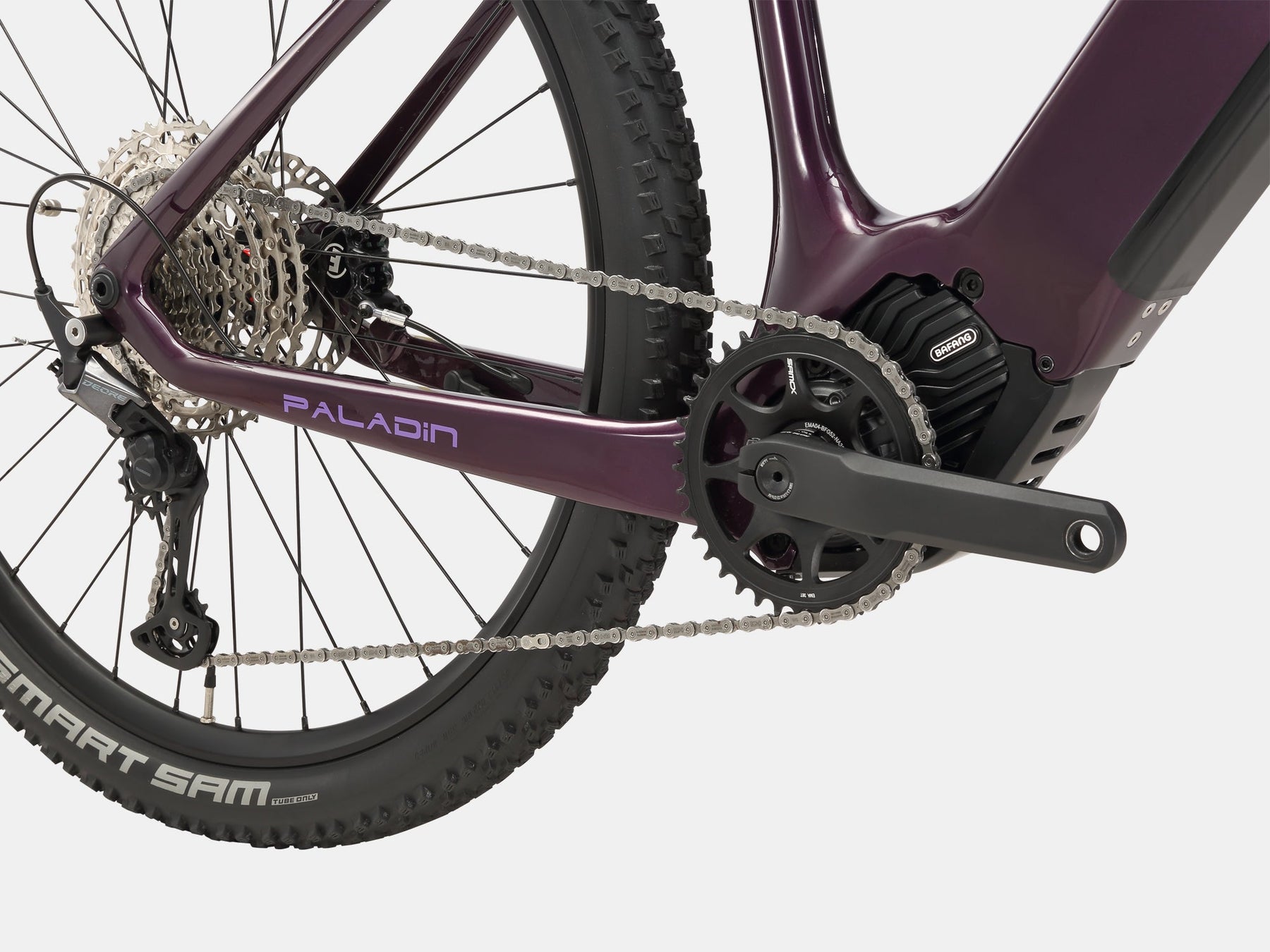

Unmatched Power and Torque

BAFANG M560 motor with 750W peak output and 120 N·m torque delivers instant acceleration and confident climbing performance.

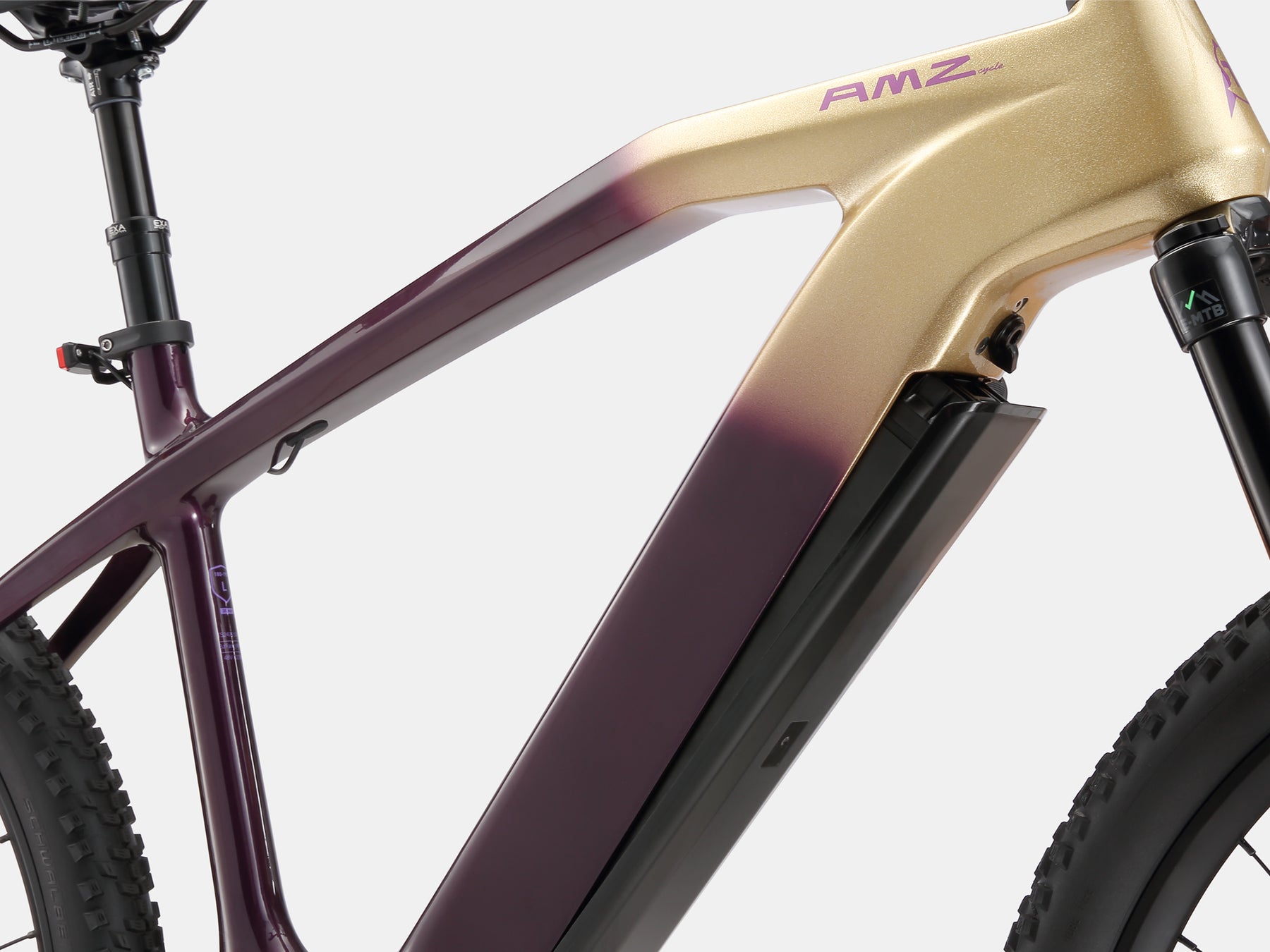

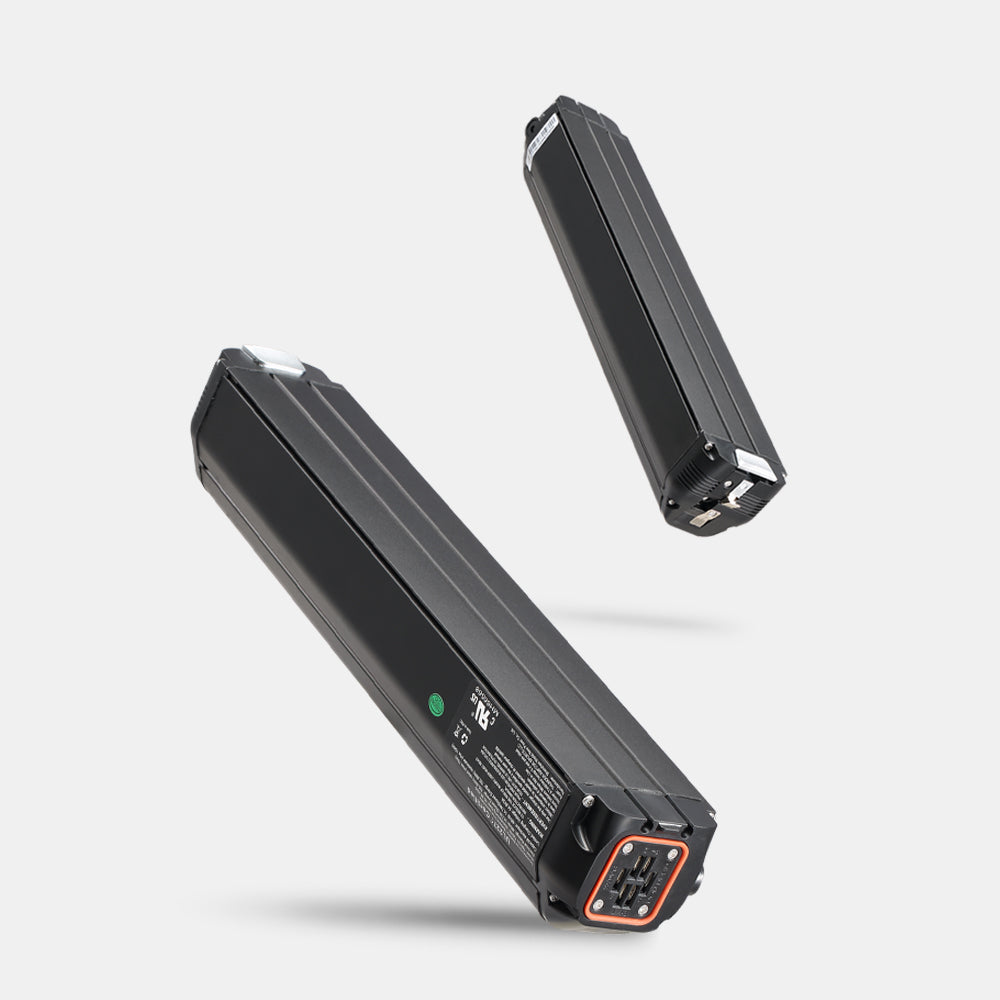

Long-lasting and Safety

UL2271-certified battery set with LG 21700 cell and high level BMS. 48V 15Ah capacity ensures safe, long-lasting power for every ride.

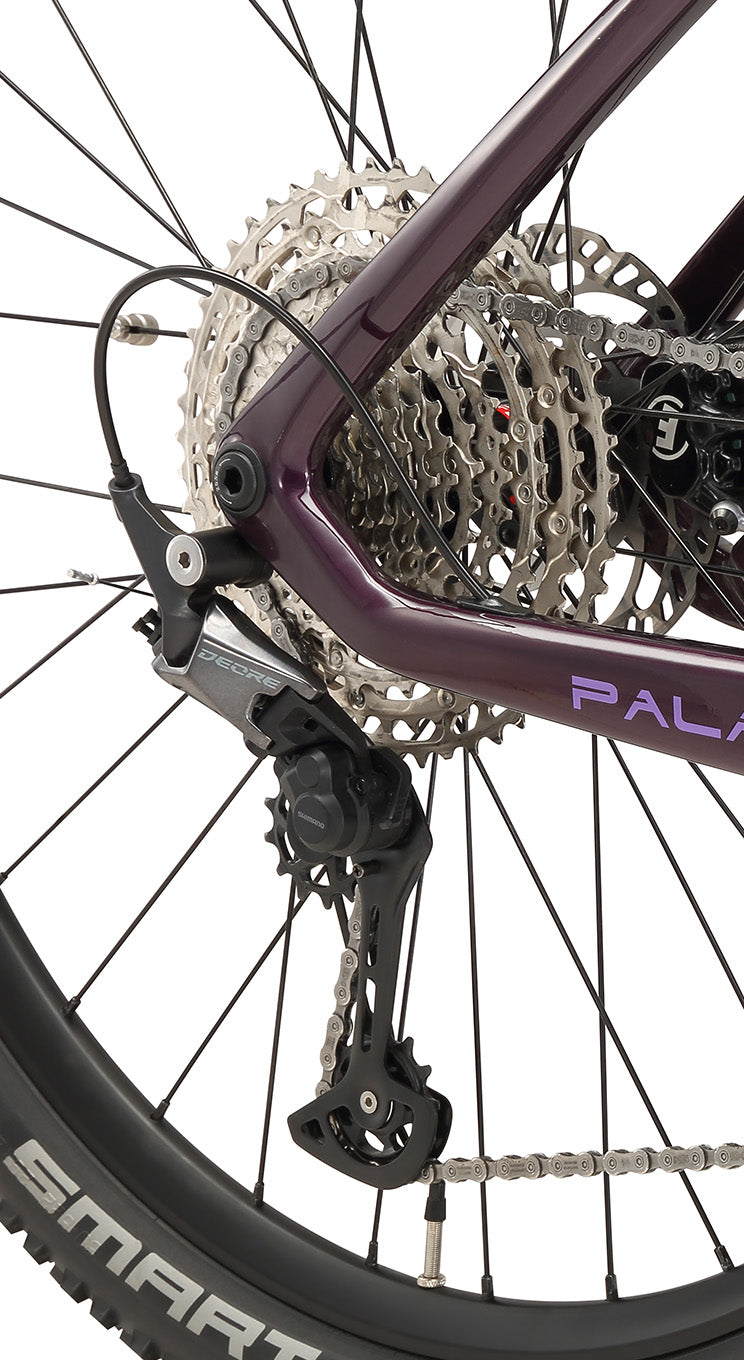

SHIMANO M6100 1×12s

Precise shifting, smooth rides.

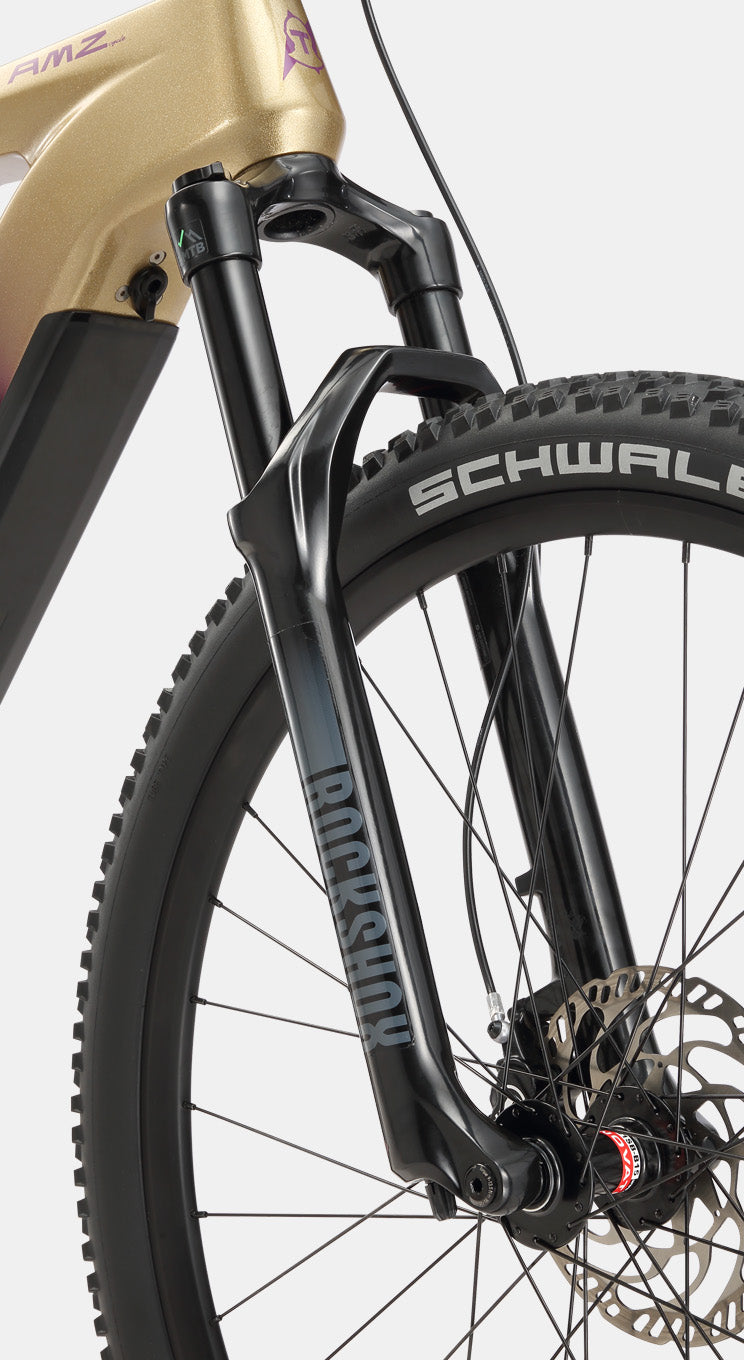

SRAM RockShox 35G Fork

Silky-smooth control on rough terrain

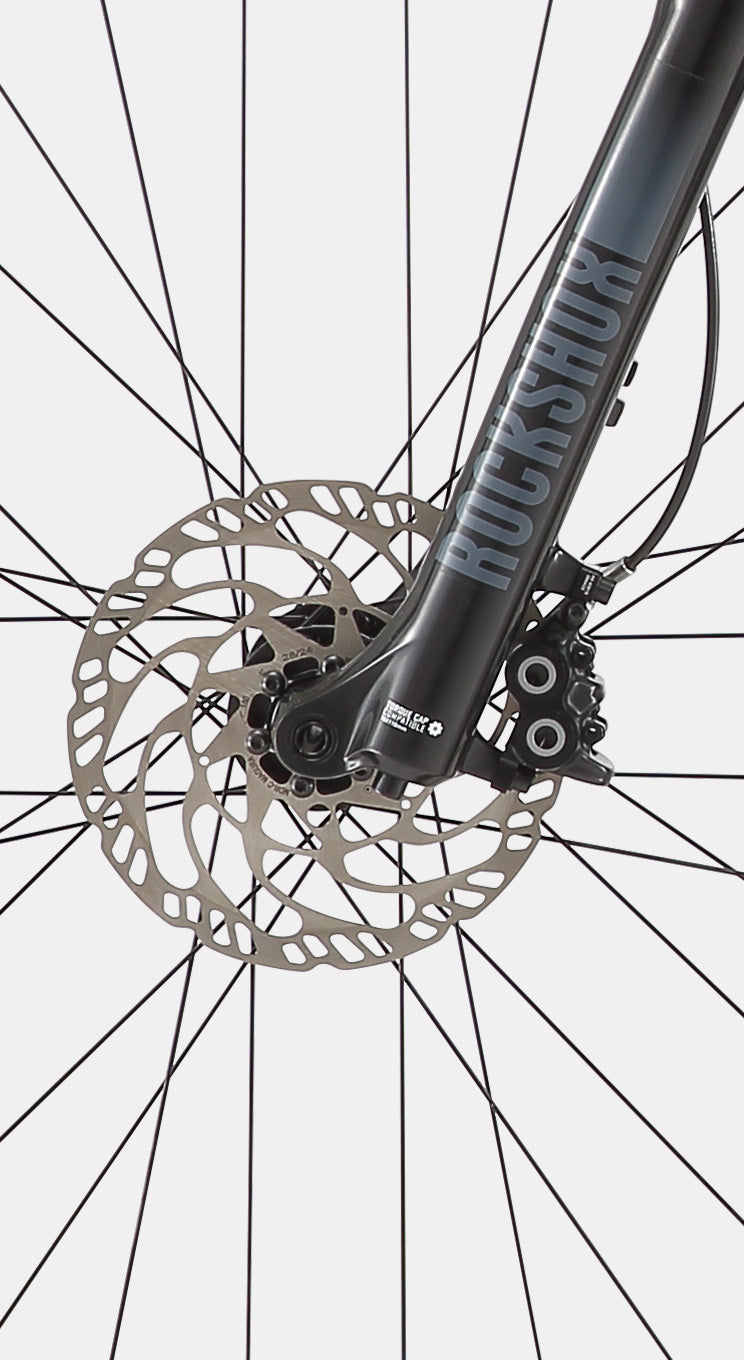

MAGURA MT5 Brakes

Excellent braking performance.

SRAM RockShox 35G Fork

Silky-smooth control on rough terrain.

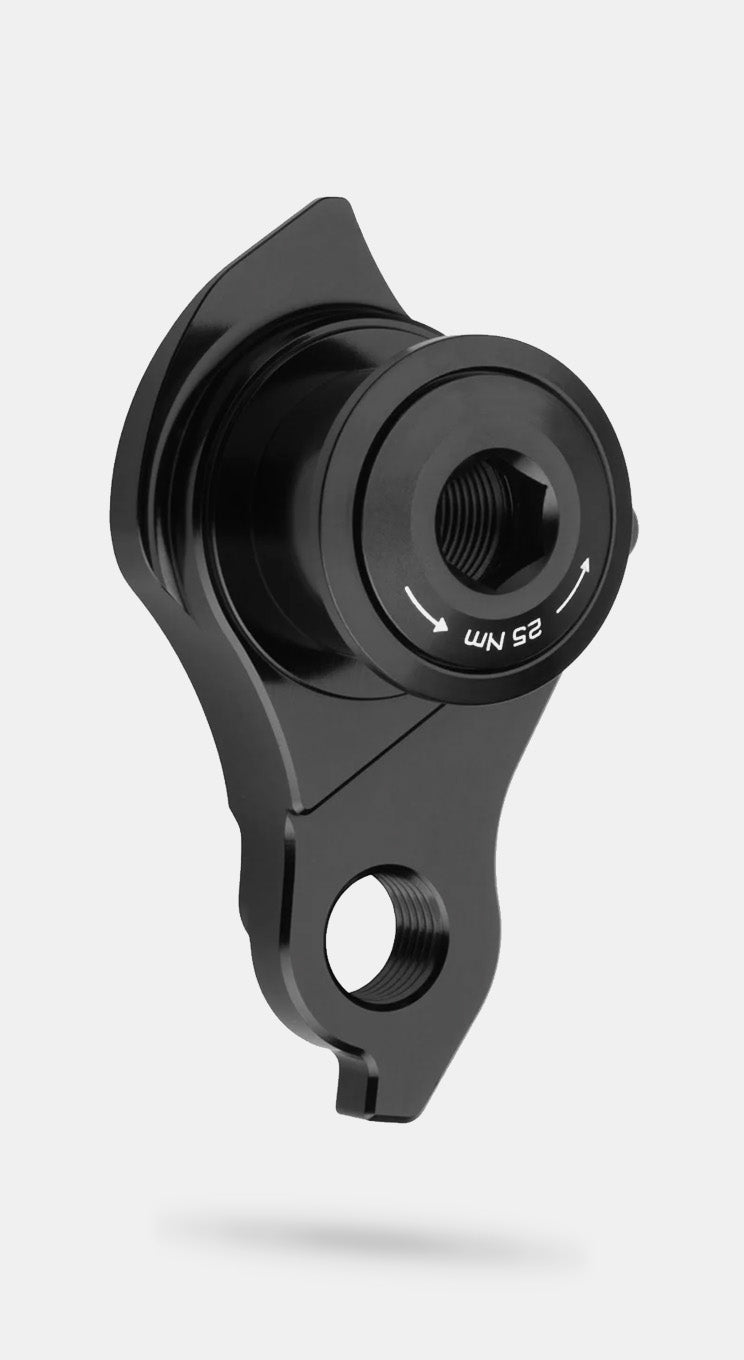

SRAM UDH

Highly compatible and easy replacement.

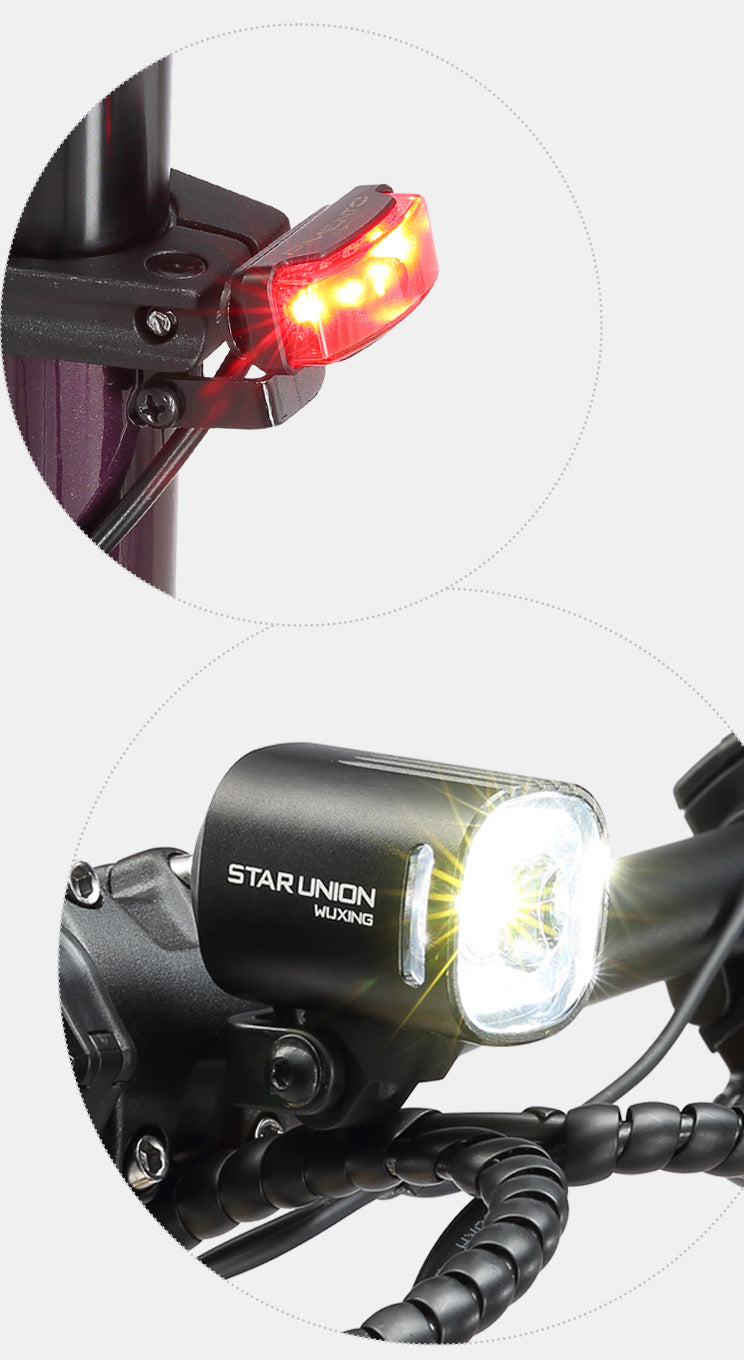

LED Headlight (3.5W) & Taillight (0.3W)

Provide visibility and safety for every ride.

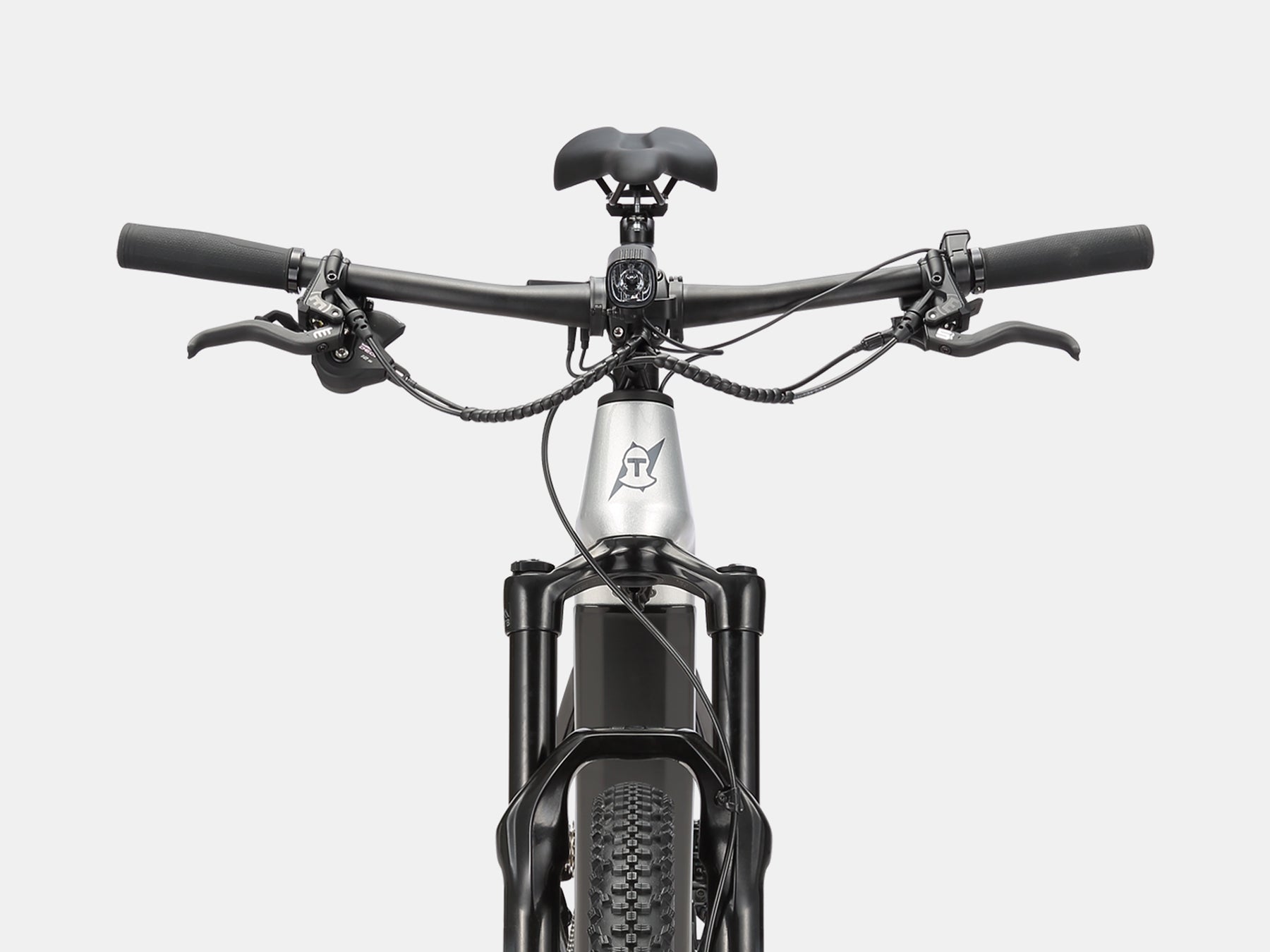

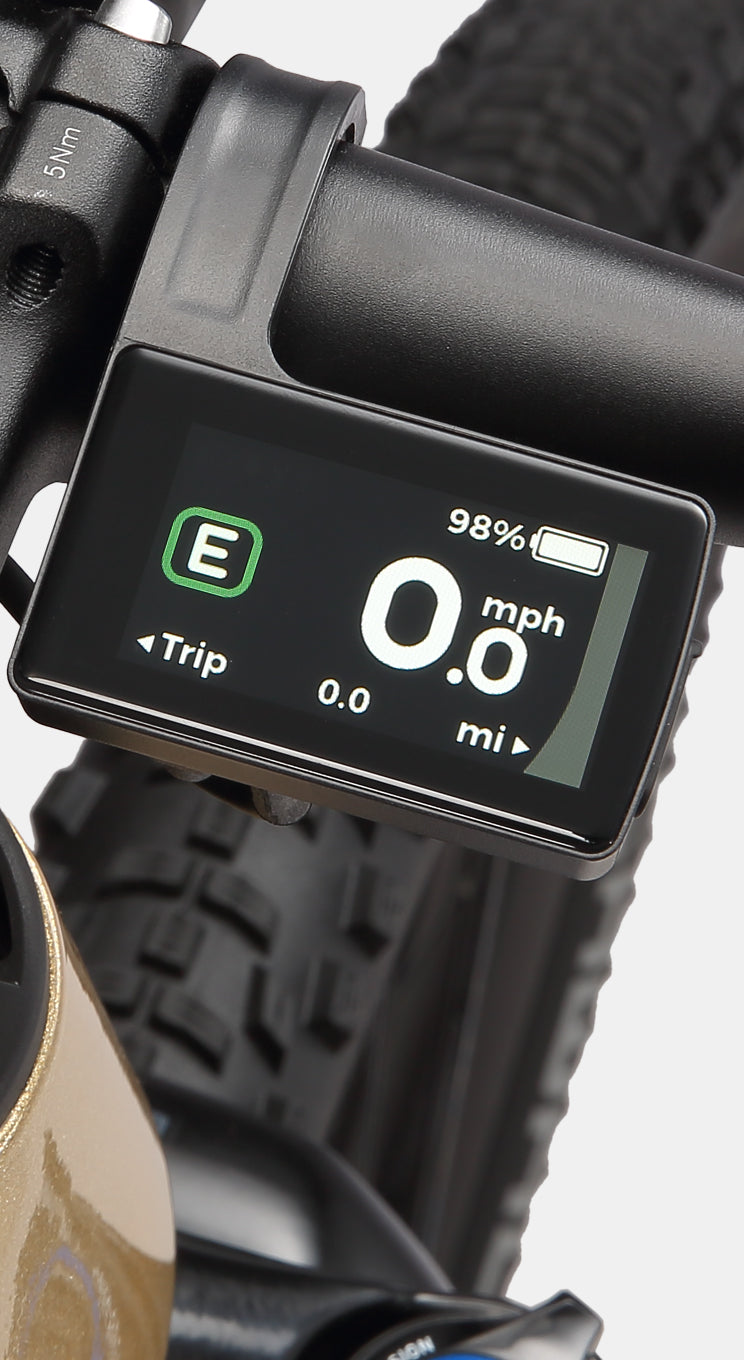

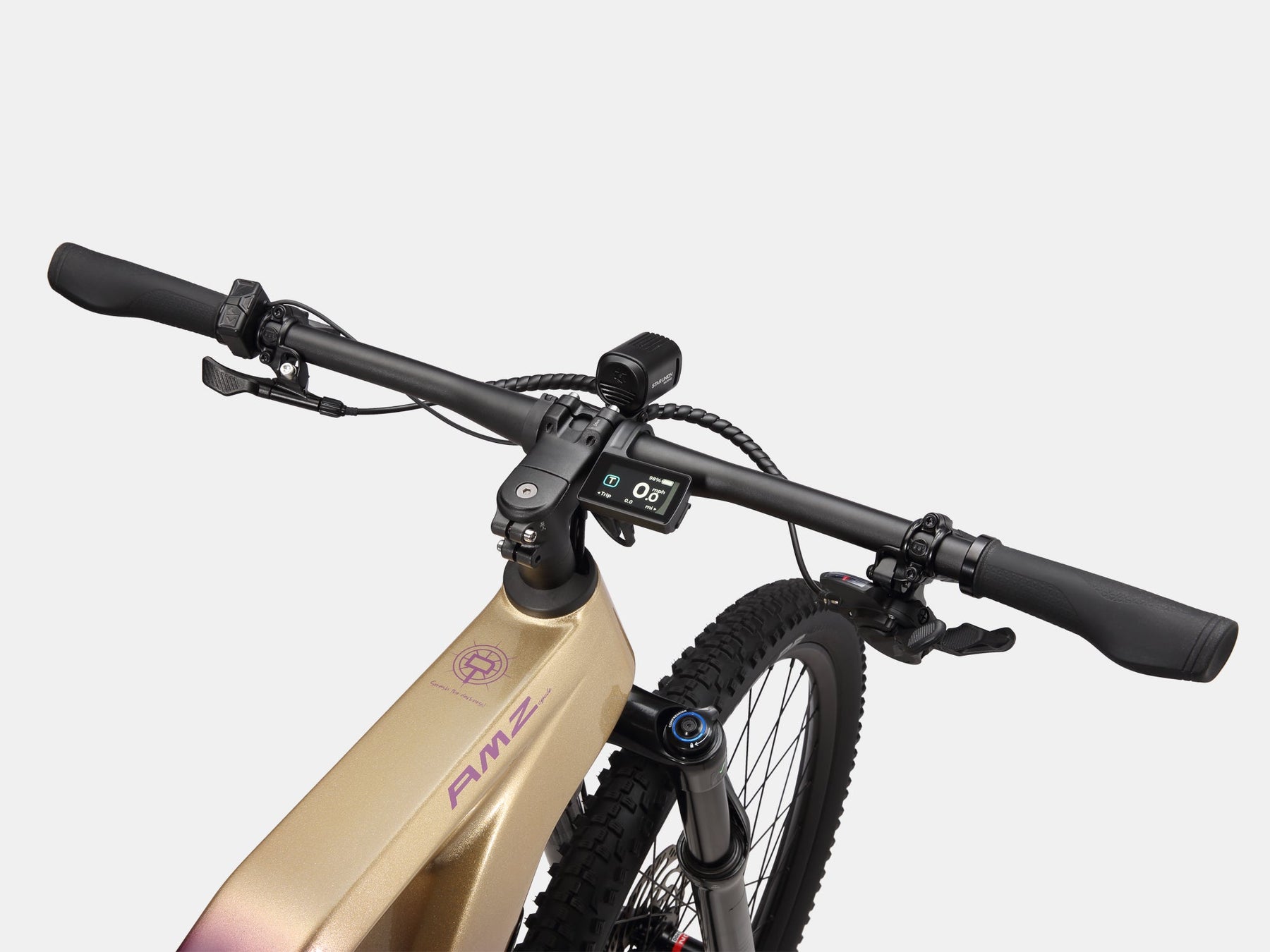

BAFANG 3.5-inch Display

Easy visibility and control.

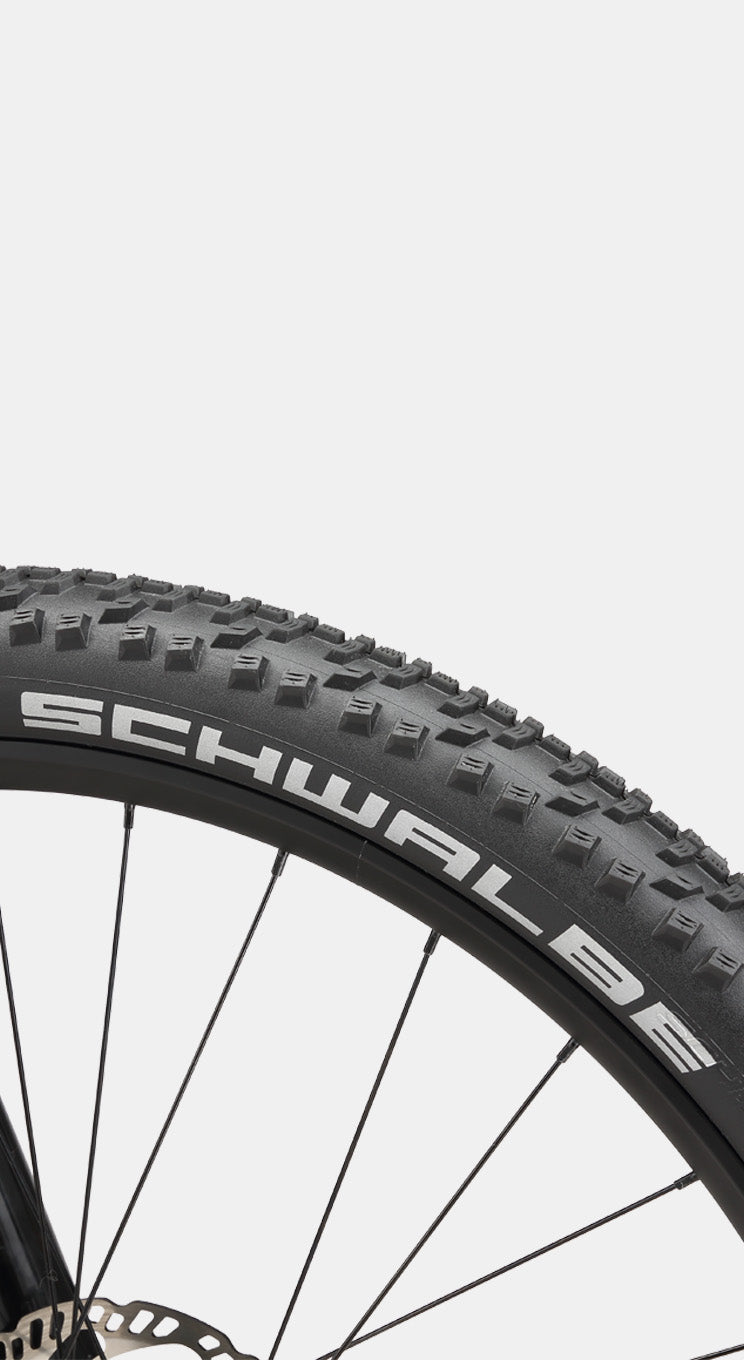

SCHWALBE Smart Sam 29×2.35"

TiresDouble puncture protection for worry-free riding on rugged trails.

Explore the Lineup

Aerolife Electric Commuter Bike - AMZcycleVIOLET

From $3,099

Mid-drive motor,Comfort, Speed and Efficiency

Cougar Electric Gravel Bike - AMZcycleCRIMSON PURPLE

From $1,899

Efficient, Comfort and Value

Easylife Electric Commuter Bike - AMZcycleRouge Nebula

From $1,499

Easy Riding for Daily Communtes

From $3,599

Mid-drive motor, Lightweight, Powerful, and Precise

Ranger APEX Electric Gravel Bike - AMZcycleFlag Red

From $4,399

Lightweight, Speed and Endurance

Unboxing & Maintenance Series

Unboxing & Assembling Your AMZcycle Paladin – Get Ready to Ride!

How to Remove & Install E-bike Battery Base & Motor | Step-by-Step Guide

How to Replace a Tire on Your AMZcycle Paladin

How to Fine-Tune Your Gears on the AMZcycle Paladin

How to Shift Gears on Your AMZcycle Paladin

FAQ Paladin

Who is this e-bike suitable for? Which size should I choose?

The Paladin comes in three sizes to fit different rider heights:

S (Small): 64.6-69.3 inch
M (Medium): 67.7-72.4 inch
L (Large): 70.9-75.6 inch

If your height falls into two size ranges, consider your inseam length and riding style (commuting vs. off-road). You can also contact our customer support for personalized sizing advice.

What is the range and top speed of this ebike?

Is the bike heavy?Can women ride it comfortably?

Can I ride on mountain or off-road trails?

Is the battery removable and replaceable?

What class of electric bike is the Paladin?

What is the battery capacity?

What are the motor specifications and torque?

What type of suspension does the bike have?

What braking system is the bike equipped with?

Pure Freedom on the Trails

Riding this bike down mountain trails is an incredible experience! The terrain gets rough, but the views are absolutely stunning. Every turn and bump brings a rush of adrenaline. It truly feels like freedom — just me, my bike, and the open outdoors.

CA 1

It was my first time riding an ebike. It was very easy and effortless to ride.ESPECIALLY cycling near Route 1 is a great experience.

Thanks for sharing your experience! We’re so glad to hear that your first ebike ride was easy and enjoyable. Cycling near Route 1 sounds like a fantastic experience — we’re happy the bike made it effortless for you. Hope you continue to enjoy many more rides!

Cycling in San Francisco

This ebike is perfect for a hilly city like San Francisco. Honestly, I think it’s more than just a hardtail mountain bike — it’s also great for cruising around the city. Thanks to the electric assist, climbing hills feels way easier, and the ride is super smooth too. The bike really soaks up the bumps, so my arms don’t get tired at all.
This ebike’s battery lasts way longer than I need — I rode all day in San Francisco, up and down hills nonstop, and still had juice left. It’s seriously awesome.

Great support!

I started at Laguna Beach and took the mountain road all the way up to the top. If I were on a regular bike, that ride would’ve probably taken me two or three hours, and I’d be totally wiped out by the end. But this time was totally different—I rode the Paladin, and I made it from the beach to the summit in just around 40 minutes. The power stayed strong the whole way, and I still had plenty of battery left to get me back down to the city.

love the front shock

I’m a big fan of this bike’s front suspension!!!!!! it makes me feel super confident when rolling down stairs, and the handling is seriously smooth. Oh, and the frame color is my favorite shade of purple too, which’s a total bonus! Very Stable E-MTB!

tried to go downhill

This ebike is actually awesome. Even though it's a hardtail, I gave downhill riding a shot at TOP OF THE WORLD IRVIN and this vehicle was really impressed — the front fork soaks up the bumps really well and keeps things super stable. It made me feel way more confident going downhill. And the adjustable seat post? Super comfy once you're settled in the saddle. But the best part has to be the walk mode — pushing it uphill feels almost effortless.
